Chengdu Jingxin Microwave Technology Co., Ltd. >> Cavity Duplexer for Microwave Communication System Diplexer

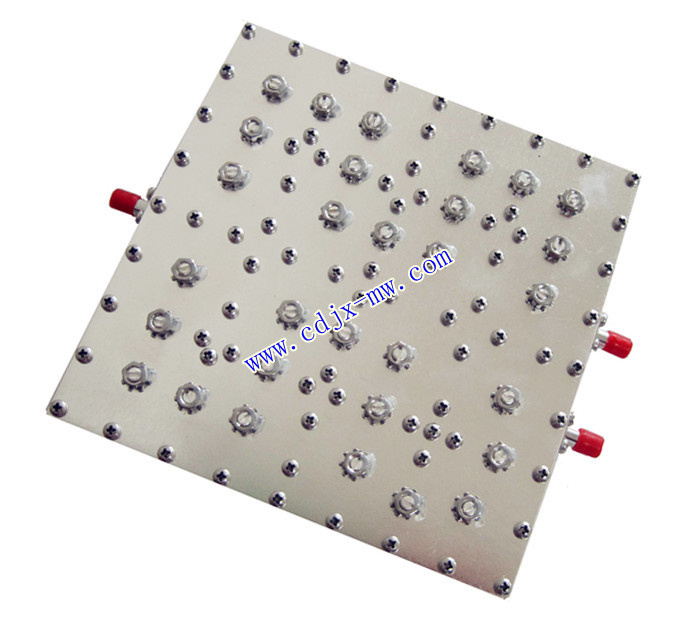

Cavity Duplexer for Microwave Communication System Diplexer

Cavity Duplexer for Microwave Communication System Diplexer
Price: US $ 100-500/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: JX-TD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Passive: Export Markets: Global
Certification: ISO
Type: Wireless
Condition: New
Usage: Base Station

Product Description

GSM/FM/UHF/UMTS Passive Microwave Wireless 698-2700MHz 3dB hybrid Coupler


















Descripttion:



1. Mobile Communication Network Optimization and In-door distribution system.

2. Cluster communication, satellite communication, shortwave communication and hopping radio.

3. Radar, electronic navigation and electronic confrontation.

4. Aerospace equipment systems
5. promising 100% pass the test .
6.Delivery time is 15-25days ,after your order.




our F:DC to 40GHz

High Isolation, Hign power handing.
Customization R&D.
Quality and quantity guaranteed.



 Specific parameters can be designed according to user's requirements.

Chengdu Jingxin Microwave Technology Co., Ltd. Established in March 2006, is a Professional manufacturer of passive devices(Diplexers, Filters, Power Splitters, Isolators, Circulators, Combiners, Directional Couplers ), RF Test Cable and RF Coaxial connectors, which is a high-tech enterprise of Chengdu and supported by the Wuhou district of Chengdu.

With many years of experience in microwave passive field, JING XIN Microwave has formed a strong R&D team to handle your requests and master your OEM orders. We are striving to provide high performance products and competitive prices for every customer.
