CATV Amplifier Series

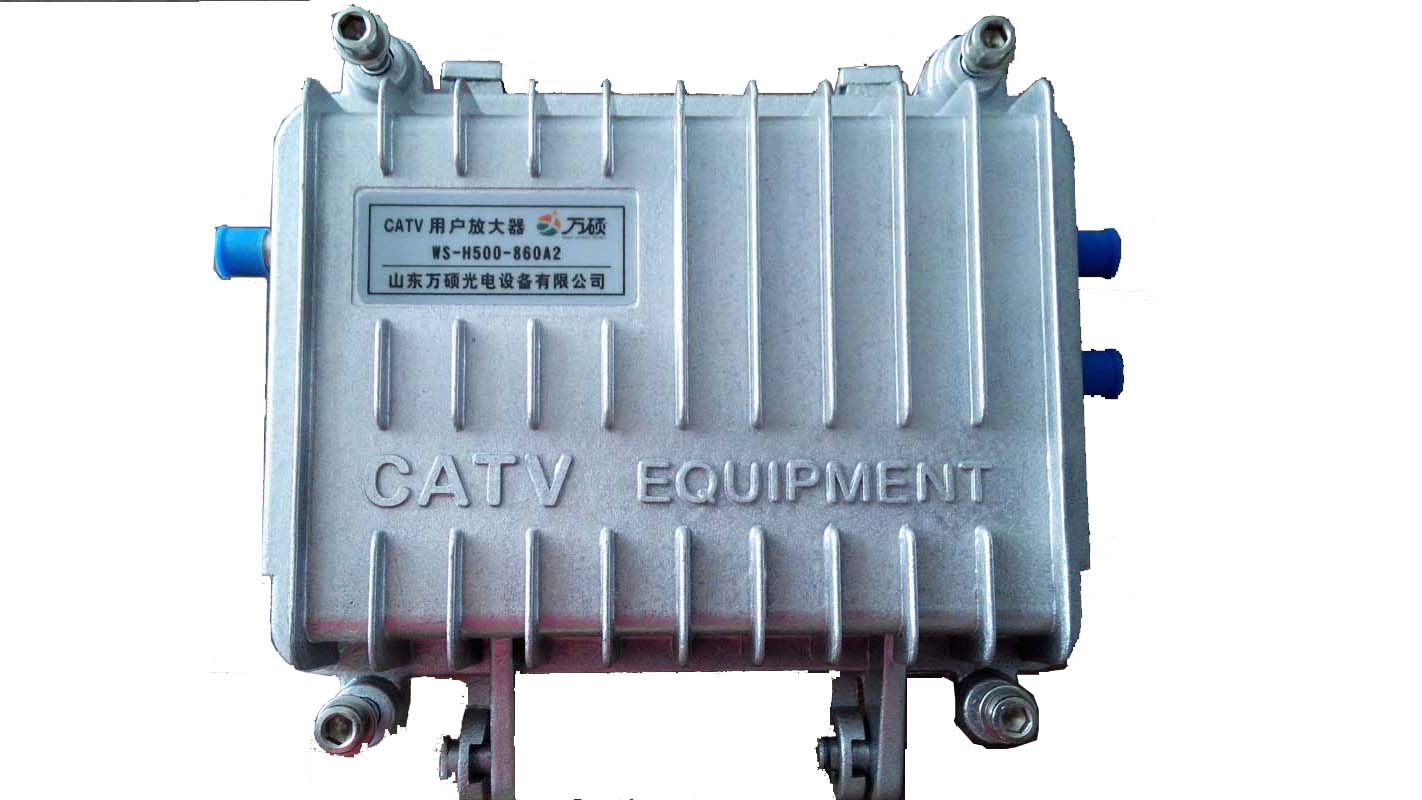

Model:H500 Subscriber Amplifier
Performance Characteristic
-Used in distribution network
-High-quality aluminum case
-Double-side epoxy resin PCB and surface mounted technology
-Adjustable attenuator and equalizer
-Two or three outputs
-High reliability E type transformer
-220V/60V input voltage
Technical Parameter
Bandwidth |
47-750MHz |
47-862MHz |
Nominal Gain |
30dB |
Nominal RF input level |
72dBuV |
Nominal RF output level |
102dBuV |
Flatness |
±0.75dB |
Noise Modulus |
≤10dB |
Return Loss |
≥14dB |
Gain Adjustable range |
0-20dB |
Slope Adjustable range |
0-20dB |
CTB |
58dB (note1) |
58dB (note2) |
CSO |
57dB (note1) |
57dB (note2) |
Group Delay |
≤10ns (112.25MHz/116.68MHz) |
Signal hum ratio |
<2% |
(10/700us)Surge-resistant voltage |
>5KV |
Gain stability |
-1.0~+1.0dB |
Note 1: Test under 79 PAL-D full-load analog CHs (112.25MHz-743.25MHz)
Note 2: Test under 93 PAL-D full-load analog CHs (112.25MHz-855.25MHz)
General Parameter
Input voltage |
36-65,220±10%Vac |
Power loss |
20W |
Size |
178×155×78mm |
