| Prod Model: |

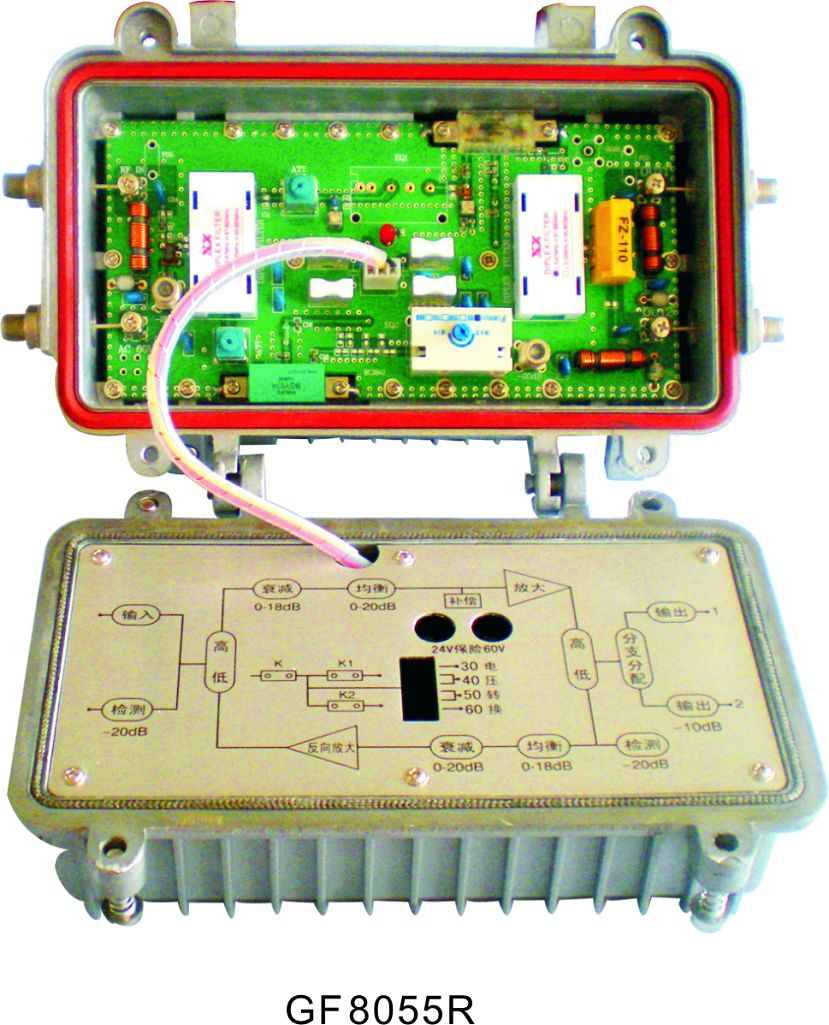

GF8055R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
We are manufactures company in exporting CATV and CCTV products, including CATV Amplifier, CATV Modulator, Optical transmitter, Optical node, EDFA, CCTV Transmitter&receiver, Media converter, Fiber-Optic patch cord, Optical coupler and so on.
Features:
1. Imported amplifying module to amplifying RF signal and send it into distribution network. Silicon and GaAs amplifying module effectively enhance non-linearity parameter, output capability and decrease noise figure.
2. Two-way modularizing designing, including forward channel, return channel, Send back upstream RF or data signal can be sent to optical node. User configurable, defaulted forward channel.
3.862MHz platform design, 550 MHz, 750 MHz, 862 MHz compatible, easy online upgrade.
4. Fittings for amplifier(attenuator, equalizer, two-way filter) adopt plug-in type, adjustable and fixed attenuator and equalizer.
5. Pre-distortion for equalizer, effectively eliminate bulge phenomenon.
|
Item |
Unit |
Parameter |
Remark |
|
|
Forward |
Reverse |
|
|
Frequency |
MHz |
87-862 |
5-65 |
Diplex Filter Options:5/30, 5/42, 5/65 |
|
Typical Input Level |
dBμv |
75 |
80 |
|
|
Typical Output Level |
dBμv |
110 |
98 |
|
|
Typical Gain |
dB |
38.3 |
17.50 |
34 dB when equal output forward |
|
Flatness |
dB |
+/-0.75 |
|
|
Maximum Reverse Output Level |
dBuV |
- |
110 |
50dBmV |
|
Return Loss |
dB |
15.2 |
14.3 |
Typical |
|
Reverse Second Intermediation |
|
- |
>52 |
|
|
Power supply |
V |
AC220V AC
30/90 (50-60Hz) |
|
|
Power Consume |
W |
<25 |
<20 without return |
|
Anti-strike Voltage |
kV |
6kV/200 Amps |
A3 Ring wave |
|
Dimensions |
MM |
280*197*125 |
|
|
Weight |
KGS |
2.4 |
|
