| Prod Model: |
CNOA1880 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |
| Certification: |
ISO |
| Condition: |
New |
| Function: |
Optical Amplifier |
Product Description

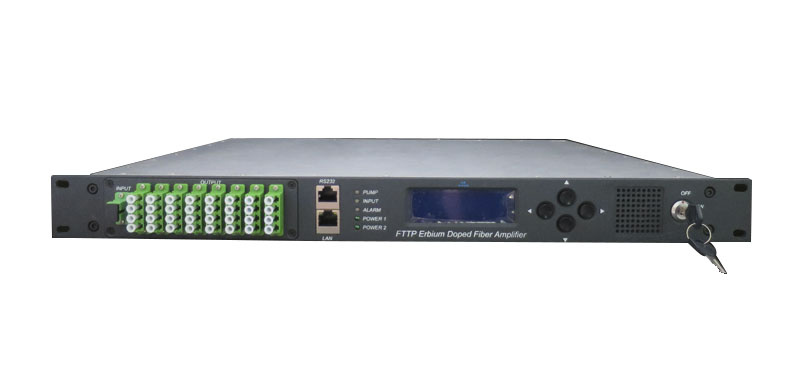

CNOA1880 series are FTTP high-power single-mode optical fiber amplifier of low noise and high performance. The built-in high-performance optics CWDM wavelength division multiplexer enables 1490/1310 of the OLT and ONU nm data flow to pass EDFA waves to a single fiber transmission, which reduces the number of devices, improves the reliability index and system and provides a flexible, low cost solution for triple play and optical fiber to the user.
Product Feature
1.The total input power optional within 500-8000 mw(27-49 DBM)
2. Rack height 1U,2U,3U,5U
3. 5U rack optical output ports can be up to 512
4. The built-in low noise preamplifier without EDFA cascade greatly reduce the system CNR and MER degradation.
5. Low noise figure
6. Perfect RS232,SNMP
7. Telecommunication level of safe and reliable network management and network
8. Simplify the room links, improve the system reliability.
9. Simple, reliable construction and maintenance
10. Optional dual power supply, 1 + 1 backup
11. Can reduce 98% device space
12. Can reduce the cost of equipment purchased by 85%
13. Can reduce power consumption by 95%
14. The most excellent price performance ratio
Technical Index
Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature
CATV operation wavelength
(nm)
1540
1563
CATV
OLT pass wavelength
(nm)
1310/1490
CATV pass wavelength loss
(dB)
0.8
1550nm
OLT pass wavelength loss
(dB)
0.8
1310/1490nm
CATV & OLT isolation
(dB)
40
Number of uplink optical ports (for OLT)
(pcs)
8
16
1U
16
32
2U
CATV input power (Pi)
(dBm)
-10
≥+3
+10
Total output power1)
(dBm)
27
32
1U
28
37
2U
Number of output ports
(pcs)
8
16
1U
16
32
2U
Each port output power
(dBm)
10
22
Difference of each output power
(dB)
-0.5
+0.5
Output power adjustable range
(dBm)
-6
0
Noise figure (Pin=0dBm)
(dB)
6.3
Polarization dependence loss
(dB)
0.3
Polarization dependence gain
(dB)
0.4
Polarization mode dispersion
(ps)
0.3
Input/output isolation
(dB)
30
Pump power leakage
(dBm)
-30
Echo loss
(dB)
55
APC
General feature
Network management interface
RJ45
SNMP
Serial interface
RS232
Power supply
(V)
90
265
220VAC
30
72
-48VDC
Power consume
(W)
150
Operation temp.
(°C)
-5
65
Storage temp.
(°C)
-40
80
Operation relative humidity
(%)
5
95
Size (W)×(D)×(H)
(")
19×14.5×1.75
1RU (19")
(")
19×15.4×3.5
2RU (19")
