| Prod Model: |
XXD-13LS01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
CAT6 UTP LAN Cable/UTP Network Cables |
| Conductor: |
Ofc/Bc/CCA/CCS |
| Wire Guage: |
24/26/28 AWG Optional |
| No. Of Conductor: |
8 |
| Insulation: |
HDPE |
| Jacket: |
PVC,Lszh,PE |
| Color: |
as Your Require |
| OEM&ODM: |
Available |
| Length: |
0.5m,1m,2m,3m,5m,10m,20m |
| Delivery Time: |
15days |
| Support Network: |
Ethernet |
| Usage: |
Laptop |
| Type: |
Wired |
| Information Content: |
Data |
Product Description

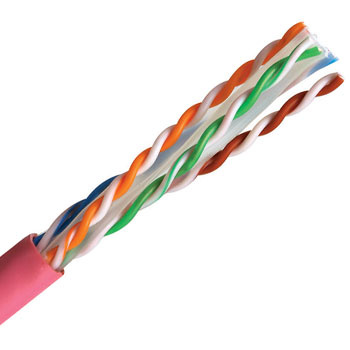

CAT6 UTP LAN Cable/UTP Network Cables /Patch Lan Cable
Description
1. Conductor: Solid Bare Copper
2. AWG: 24
3. Conductor Dia(mm): 0.51
4. Insulation: PE
5. Average Thickness(mm): 0.21
6. Min. Point Thickness(mm): 0.17
7. Insulation Dia(± 0.02mm): 0.91
8. Twisting Lay Length(± 20mm): 140
9. Jacket: PVC
10. Average Thickness(± 0.5mm)
11. Min. Point Thickness: 0.43mm
12. Outer Dia(± 0.2MM): 5.0
13. Rip Cord: Yes
14. Weight(kg/km): 32
Color of Insulation:
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
Other color available according to client's request.
Features:
1. Double Shields Assure the Anti-Jam and Data-Protection Strongly
2. Fast and Reliable Connection
3. Twisted Pairs with Bright Color for Easy Recognition
4. Ripcord and Footmark for Convenient Use
5. Smooth Jacket for Easy Pulling in Tight Space
6. Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
APPLICATION:
100 Base-T4
100 Base-TX
100 VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155Mbps ATM
622Mbps ATM
Packing:
1) Packing Lengths: 305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
|
Ethernet lan cable |
|
Category |
Cat5e,cat6.cat6A,cat7 |
|
Specification |
4 pairs |
|
Conductor |
0.58mm(23AWG),0.5mm(24AWG),0.4mm(26AWG) |
|
Material |
Oxygen free copper,Bare copper,CCA,CCS |
|
Shield |
UTP(Unshielded Twisted Pair), FTP(Shielded Foil Twisted Pair), SFTP(Shielded Foil Twisted Pair) |
|
Jacket |
PVC,LSZH,PE |
|
Color |
Grey,Blue,White,Black,Green,Yellow,Red,etc |
|
Meters |
305mtr/box |
