Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. >> Cassette Type Hybrid Solar Air Conditioner

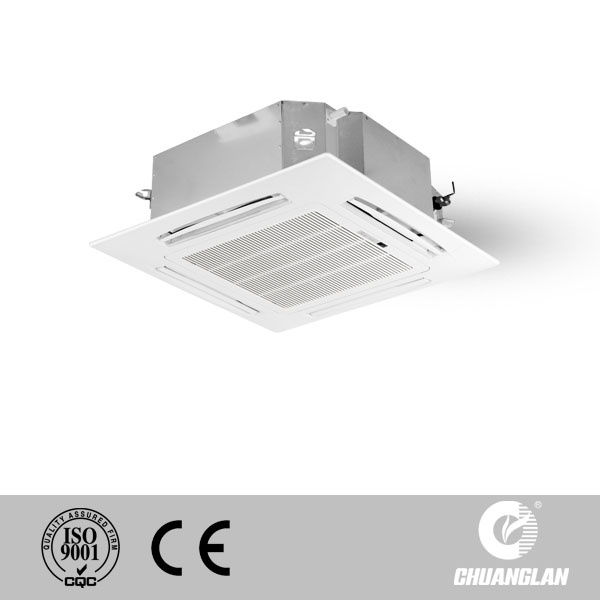

Cassette Type Hybrid Solar Air Conditioner

Cassette Type Hybrid Solar Air Conditioner
Price: US $ 950-980/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Set
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: TKF(R)-72QW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity: 24000BTU
Eer: 3.8
Compressor Brand: Hitachi
Type: Cabinet Air Conditioner
Capacity: 27000-48000 BTU
Usage: Room
Indoor Machine Noise: 24-35dB
Certification: MEPS
China Energy Efficiency Standard: Level 1
Cooling/Heating: Cooling/Heating
Power Source: Electrical
Power Type: AC
Condition: New

Product Description


Feature:

1.World famous brand compressor
2.LED display
3.100% copper pipes ensures the strong cooling capacity.
4.Washable anti dust air filter
5.With remote control
6.EER:Above class 1
7.Easy installation, similar to normal air conditioner
8.Energy saving at least 30% comparing to normal  air conditioner.
9.Enviornmently friendly gas

Why it saves energy compared with normal air conditioner?

Chuanglan hybrid solar air-conditioner is driven by electricity and with solar energy as an auxiliary power. The two kinds of energy work complementally in accordance with principles of fluid dynamics. It combines the absorption working system to compression system by using environmental-friendly media in cooling and heating on the basic of traditional air-conditioner technology to achieve energy-saving and environment protection.


Compare to current products:
1. Conventional air conditioner consumes too much, users have to pay a heavy electricity bill.
2. Photovoltaic (PV) system costs a large amount of money to build up.
3. Thermally driven absorption cooling is also a very costly, and its cooling capacity is not big enough.

Model No.

TKF(R)-60QW

TKF(R)-72QW

TKF(R)-100QW

TKF(R)-120QW

TKF(R)-140QW

Power Supply:220-240VAC, 1PH, 50Hz

Performance

 Capacity

Cooling

Btu/h

20000

24000

36000

41000

48000

W

6000

7200

10000

12000

14000

Heating

Btu/h

22000

27000

40000

46000

55000

W

6600

7900

12000

14000

16000

Noise

Indoor

dB(A)

45

49

49

50

50

Outdoor

dB(A)

56

58

58

60

60

Air Circulation

m³/h

800

1250

1700

1800

1900

Suitable Area

25~42

30~48

42~67

50~80

58~93

EER

W/W

3.88

3.82

3.87

3.96

3.87

Btu/h/w

13.24

13.03

13.2

13.51

13.2

Power Consumption

Power Input

Cooling

W

1350~1560

1700~1900

2400~2640

2900~3150

3500~3740

Heating

W

1350~1590+350

1700~1950+350

2470~2650+350

2900~3180+350

3500~3760+350

Rated Current

Cooling

A

6.14~7.09

7.73~8.64

10.91~11.95

13.18~14.32

15.91~17

Heating

A

6.14~7.23+1.6

7.73~8.66+1.6

11.23~12.05+1.6

13.18~14.45+1.6

15.91~17.09+1.6

Vacuum Tube

Diameter*Length*Pcs

47mm*620mm*11

47mm*620mm*11

47mm*700mm*13

47mm*1200mm*13

47mm*1200mm*13

Dimensions

Indoor Unit

Net

mm

640*640*280

850*850*250

850*850*250

850*850*280

850*850*280

Shipping

mm

680*680*320

890*880*290

890*880*290

890*880*320

890*880*320

Panel

Net

mm

650*650*60

960*960*60

960*960*60

960*960*60

960*960*60

Shipping

mm

730*750*130

1010*1010*110

1010*1010*110

1010*1010*110

1010*1010*110

Outdoor Unit

Net

mm

850*300*755

940*300*755

950*355*835

950*355*1255

950*360*1255

Shipping

mm

950*400*770

990*400*770

1140*460*910

1140*460*1340

1140*460*1340

Water Tank

Shipping

mm

980*400*370

980*400*370

1105*400*325

1120*400*400

1120*400*400

Vacuum Tube

Shipping

mm

765*280*205

1270*280*210

1270*280*210

Weight

Indoor Unit

Net/Gross

kg

28/34

28/34

30/45

53/57

53/57

Outdoor Unit

Net/Gross

kg

50/52

55/58

73/76

95/100

97/102

Solar Collector

Net/Gross

kg

16/17

16/17

18/21

23/26

23/26

Loading Qty

in 20feet

sets

44

36

31

22

22

40HQ

sets

106

88

75

53

53





Company Information






FoundedAugust,2006
Main ProductsHybrid Solar A/C, Air  Purifiers, Dehumidifiers
Factory Area21 Thousand M2
Subsidiary CompanySuzhou Sunsnow New Energy Technology Co. Ltd
Annual Sales (Year 2014)17.8million USD
Staff300
R& D10
Quality Staff10
Products Line3
Products Capacity500 Thousand units /year

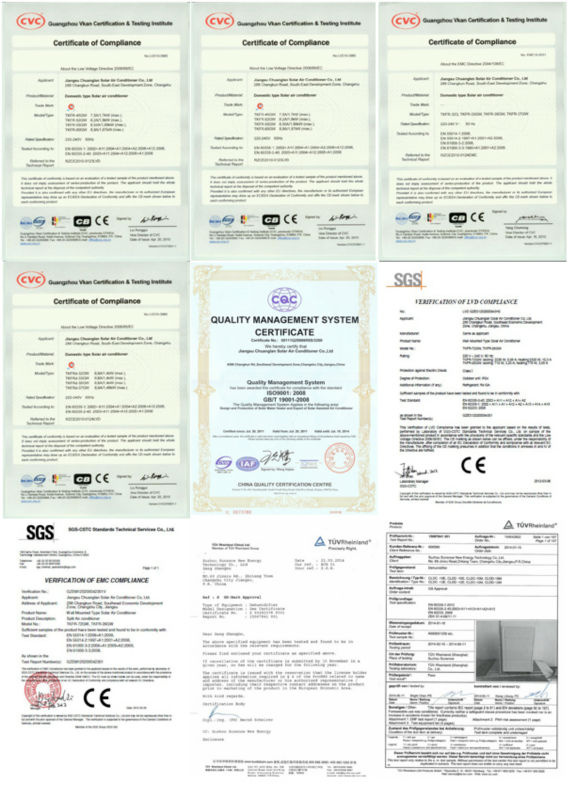

Certificates









Our Services



Warranty: 1year machine+ 3 year compressor+1% spare parts

Professional engineers team will serve for you if any question.

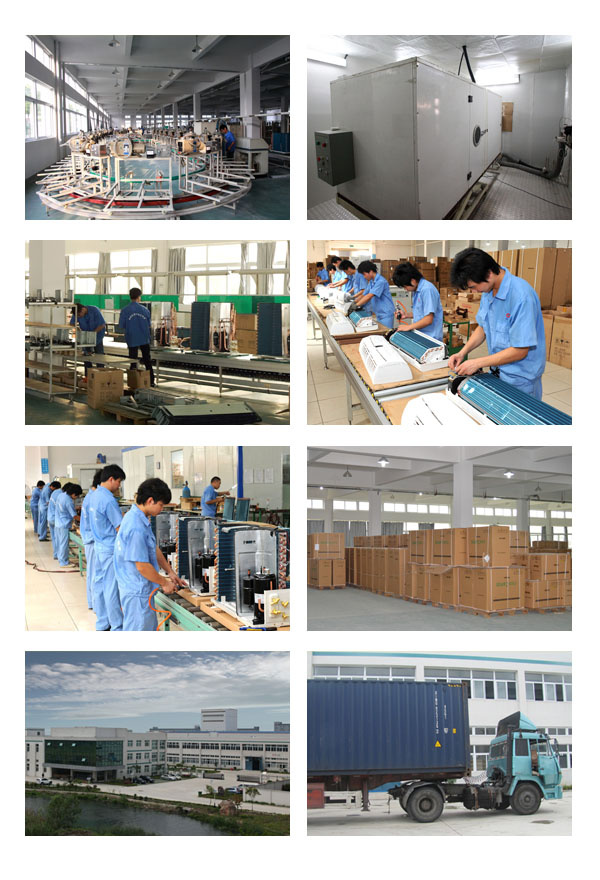

Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. Established in Aug. 2006 with a registration capital of 2.99million US dollars, is a company focusing on solar energy exploitation and utilization. It is a professional enterprise with R&D team, production line and sales team on environmental friendly products, energy saving products and air purifying products with the support of its engineers, advanced production equipment and laboratory. It's an outstanding manufacturer in the world with high technology, big production capacity, wild product range and strong competitiveness on domestic solar assisted air conditioners, commercial solar assisted air conditioners, atmospheric water generators, air purifiers and dehumidifiers.

Chuanglan includes one head office and one subsidiary company Suzhou Sunsnow. Its head office locates in New Technology Industrial Development Zone of Chuangshu City, where is with full access to development opportunities. It has more than 80 patents at home and abroad, total access is over 12.9million US dollars at present, and has been selected as Wal-Mart's qualified supplier in Jan 2014. With a land of 21, 000 square meter and a plant of over 22, 000 square meter, equipped with 3 automatic production lines and research and testing facilities, Chuanglan is able to produce 500, 000 units annually. Thus, Chuanglan is the only manufacturer with research and development ability, production line and sales team on hybrid solar air conditioner industry, whose annually turnover is 32million US dollars. Thanks to its R&D ability and production capacity, It has been successfully marketing its products to over 130 countries. Chuanglan has made a big leap in a few years.

Aiming at becoming the top company in the clean energy development and usage area, Chuanglan considers solar air conditioner as its core product, and produces air purifiers, dehumidifiers, solar water heaters, atmospheric water generators and high energy water drinking machines at the same time. A technical, industrialization and internationalization Chuanglan is growing rapidly.
