| Prod Model: |
TKFR-120QW/BP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
SAA |
| Type: |
Inverter Air Conditioner |
| China Energy Efficiency Standard: |
Level 1 |
| Power Source: |
Electrical |
| Capacity: |
41000 BTU |
Product Description
Features
Product Name: 60% energy saving DC inverter solar air conditioner
1)Save about 60% electricity.
2)Adopt high quality and advanced Toshiba DC inverter compressor
3)Quiet design, Remote control
4)Powerful heating &cooling capacity
5) CE, CCC, ISO9001, SAA approved
6) environmental protection and energy saving design
7) with LED display
8) 3 years warranty
|

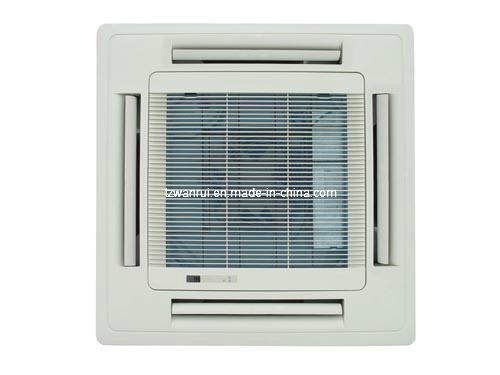

Cassette Solar Air Conditioner |
|
Technical Data Parameters |
|
Heating is optional |
TKFR-100QW/BP |
TKFR-120QW/BP |
TKFR-140QW/BP |
|
Power Supply |
220V/50Hz/60Hz |
220V/50Hz/60Hz |
220V/50Hz/60Hz |
|
Performance |
|
|
|
|
Capacity |
Cooling |
Btu/h |
36000 |
41000 |
48000 |
|
W |
10000(2500-11000) |
12000(3500-13000) |
14000(3500-15000) |
|
Heating |
Btu/h |
37500 |
44000 |
49800 |
|
W |
11000(2900-11700) |
13000(3900-13700) |
14500(3900-15700) |
|
Noise |
Indoor |
db(A) |
<52 |
<52 |
<54 |
|
Outdoor |
db(A) |
<65 |
<65 |
<66 |
|
Air Circulation |
m³/h |
1350 |
1700 |
1700 |
|
Suitable Area |
m² |
50-80 |
70-90 |
80-100 |
|
EER |
w/w |
4.11 |
4.16 |
4.09 |
|
cop |
w/w |
4.36 |
4.45 |
4.34 |
|
Power |
|
|
|
|
Input power |
Cooling |
W |
2430 |
2880 |
3420 |
|
Heating |
W |
2520 |
2920 |
3460 |
|
Rated Current |
Cooling |
A |
11.05 |
13.09 |
15.55 |
|
Heating |
A |
11.45 |
13.27 |
15.73 |
|
Dimensions |
|
|
|
|
Indoor Unit |
Net |
mm |
840*840*285 |
840*840*285 |
840*840*285 |
|
Shipping |
mm |
855*885*305 |
855*885*305 |
855*885*305 |
|
Panel Unit |
Net |
mm |
950*950*45 |
950*950*45 |
950*950*45 |
|
Shipping |
mm |
1005*1005*100 |
1005*1005*100 |
1005*1005*100 |
|
Outdoor Unit |
Net |
mm |
910*310*1330 |
910*310*1330 |
910*310*1330 |
|
Shipping |
mm |
1080*440*1490 |
1080*440*1490 |
1080*440*1490 |
|
Weight |
|
|
|
|
Indoor unit |
Net/shipping |
kg |
45/52 |
48/55 |
55/62 |
|
Outdoor unit |
Net/shipping |
kg |
125/133 |
125/133 |
130/138 |
|
Attachments |
|
|
|
|
Dimensions |
Net/shipping |
mm |
1000*550*87 |
1000*550*87 |
1000*550*87 |
|
Weight |
Net/shipping |
kg |
14/16 |
14/16 |
14/16
|
As a professional solar air conditioner manufacturer, Taizhou City Wan Rui Refrigeration Equipment Co., Ltd. Holds four production lines with production capacity up to 1, 500, 000 sets per year with its world-class equipments in manufacturing and testing, the products of which are selling to over 30 countries worldwide such as North America, South America, Europe, Middle-East and Southeast countries.
We have more than 50 various products in 4 series including Split Wall-mounted type, Cabinet type, Ceiling type and Cassette type. All of our products are certificated by CE, SAA. Solid technical force, advanced equipments and a complete quality management system (certificated by the ISO9001: 2000 Quality System) offer the guarantees for quality products. We have been keeping providing quality products and solutions promptly and accurately to our domestic and overseas customers under the tenet of professional, innovative since the establishment of our company.
As Advanced High-Technology Enterprise in Zhejiang province, we invest more than 8% of our turnover on Research and Development every year keeping stable upgrading our technology and products. Among the total 500 employee, 48 people are in our R & D center. We have also built up two service center in India and Australia today to better service the customers and we are planning to build more along with the business development.
We sincerely welcome calls and visits from all over the world for academic exchange and business cooperation.
