| Prod Model: |
I-FMT 42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
ABS |
| Rated Working Voltage: |
12V-24V |
| Limit Working Voltage: |
9-30V |
| Consuming Work Rate: |
1W |
| Operating Temperature: |
0-40° |
| Support For Playback Formats: |
MP3, WMA |
| Signal To Noise Ratio: |
>60db |
| Distortion: |
<0.1 |
| Frequency Response: |
20Hz-15kHz |
| FM Ransmitter Frequency: |
87.5-108MHz |
| Type: |
Car MP3 |
| Audio Output: |
L/R Channel |
| Certification: |
RoHS |
| Voltage: |
12/24V |
| Format: |
MP3, WMA |
| Placement: |
in Car |
Product Description

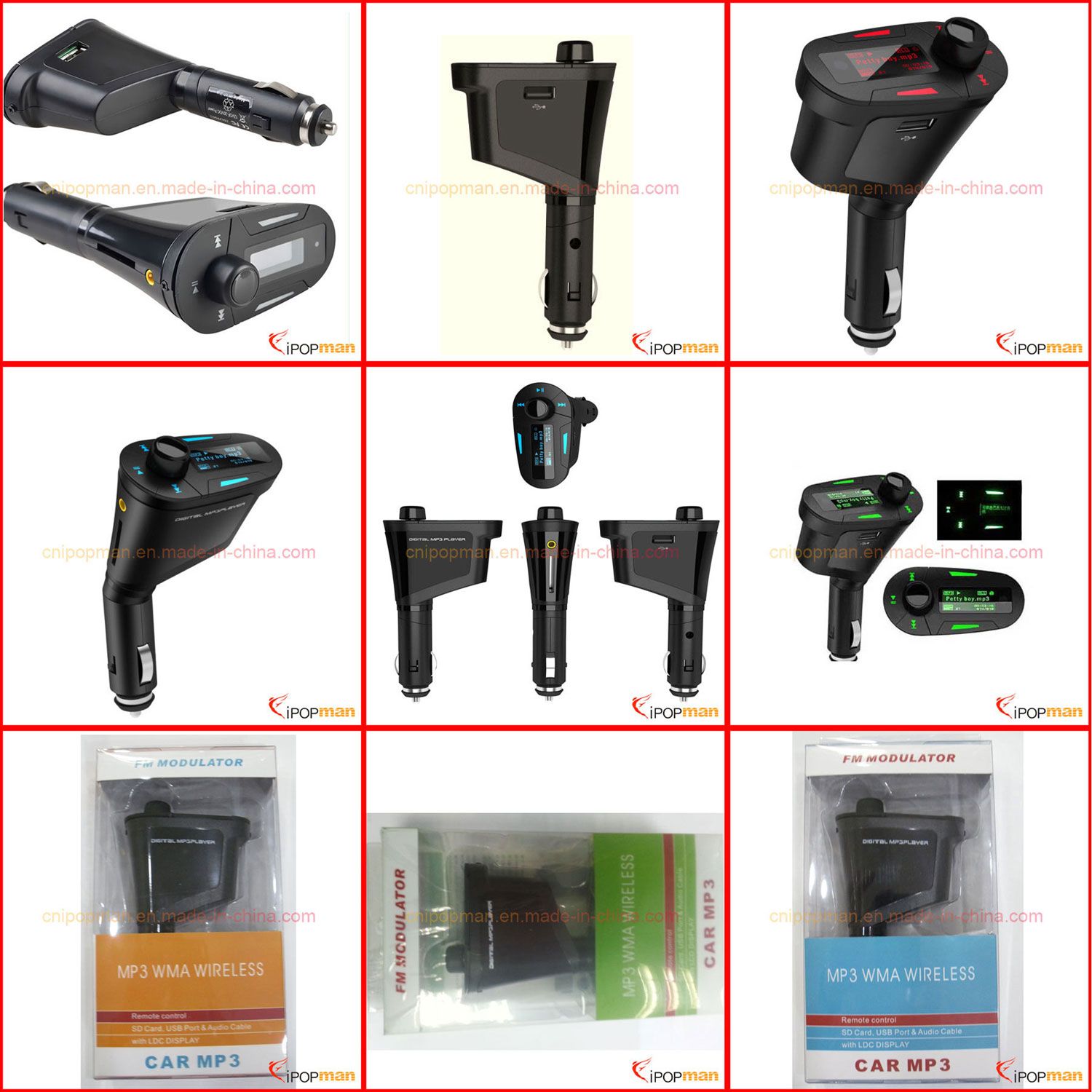

cassette adapter mp3 player car/car mp5 player fm transmitter
Sincerely thank you forchoosing and purchasing our car MP3!To repeat play the best performance of your player,please read carefully before use.The manual of this product!
(1) Introduction
This product is a car mp3 player,high-performance professional-level transmitter module,OTC/MP3 decorder chip,the ability to play SD card and U disk inside music files through the wireless to my car stereo does not require modifications to your car you can easily make you can enjoy music along with Driving while.
(2) appearance of the schematic description of
1. power switch,volume size of the key
2. the frequency+
3. the frequency-
4. the next
5. on a
6. pause mode button
7. the audio output
8. SD card port
9. the USB interface
10. the display
(3) description of the remote control buttons
1. play/pause
2. the transmitting frequency+
3. the transmitting frequency-
4. the volume+
5. the volume-
6. the EQ function
7. on a
8. under a
9. folder selection key
10. exit key
11. digital selection key
(4)Features
1.support SD card/MMC/TF card(mobile phone memory card) and U disk support up to 8GB,both the card reader function
2.unique Volume rotate button,volume,size,power switch,a key to solve
3.USB interface can charge for external portable devices
4.Support MP3/wma MUSIC format file
5.128/33 dot matrix LCD screen(Scarlet Letter of the bouns screen,blue screen,blue on green screen green word)to display the frequency point,the file name,ect.
6.support file playback.
7.the support boot and shultdown functions
8.in both Chinese and English menu operation,support for multiple languages,the ID3 and LRE synchronized layrics display(Chinese,English,Franch,German,Spanish,Portuguese,Russian,Netherlands,Arabic)
9.power and memory and 6 kinds of EQ play mode settings
10.support for remote digital song selection and digital frequency selection function.
11.direct the car cigarette lighter power supply(12-24v)
(5) operating instructions
1. play the music
a.will be the product into the car cigarette lighter seat,then MP3 or WMA music files on the SD card USB driver is inserted into the corresponding socket.The player is detected inside the music file will automatically enter the play button to toggle play/pause
b.open the car radio audio into the FM radio state,then adjust the transmission frequency on Car MP3 car radio received the same frequency(such as the frequency on Car MP3 car radio frequency 88.5)88.5 pairs can play your favorite songs.
c.adjust the transmission frequency:press CH-87.5-launch FM frequency of 108.0 MHz between the adjustment,press and hold fast to adjustmyou can also use the remote control,FM operation
d.or key,play one or the next
e.rotating hosts knob can adjust the volume,press and hold the know can directly switch machine
2.Function Select
a.the EQ to select the setting:the machine a total of six play modes,the matural(NORMAC),rock(ROCK),soft(SOFT),Jazz(IAZZ)
Bass(CLASSIC) and surround(SRS),the EQ button in the state press on the remote control to select the operating conversion EQ player in the host,can convert the mode you want to select.
b.song playback mode selection,playback status,often by host pause button adjustable single player,surround playback.
Random play and normal play
c.folder:enter the host option under playback status in the host file on the remote control function key:card catalog,contrast adjustment.remove all firmware versions,language selection.
Host plug the SD card and USB disk in the card catalog to select the songs files and folders you want the folder on the remote control function keys.
a under a to select the card catalog,contrast adjustment,delete all.press the pause button to confirm the language selection,firmware version,select the directory you want to enter the directory you want to select.
(6) power and memory
In order to facilitate your use of the general,every time you use this product after power system under automat
ic memory once you play the point in time and launch frequency information,and the next time you use in from that opint then began to play,but when you remove or replace the storage device or the system detects an error the case of the system will automatically revert to the factory defult settings
(7)Technical Parameters
Rated working voltage |
12V-24V |
Limit working voltage |
9-30V |
Consuming work rate |
1W |
Operating Temperature |
0-40° |
Support for playback formats |
MP3,WMA |
Signal to Noise Ratio |
>60db |
Distortion |
<0.1 |
Frequency response |
20Hz-15Khz |
Left and right channel separation |
>60db |
FM ransmitter frequency |
87.5-108Mhz |
Weight |
46g
|
