Card Issuing Desktop Reader (NFC-9211B)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
NFC-9211B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Size: |
140mm*110mm*36mm |
| Net Weight: |
0.18kg |
| Interface: |
USB |
| Type: |
RFID Reader |
| Card Slots: |
No |
| Installation: |
Desktop |
Product Description

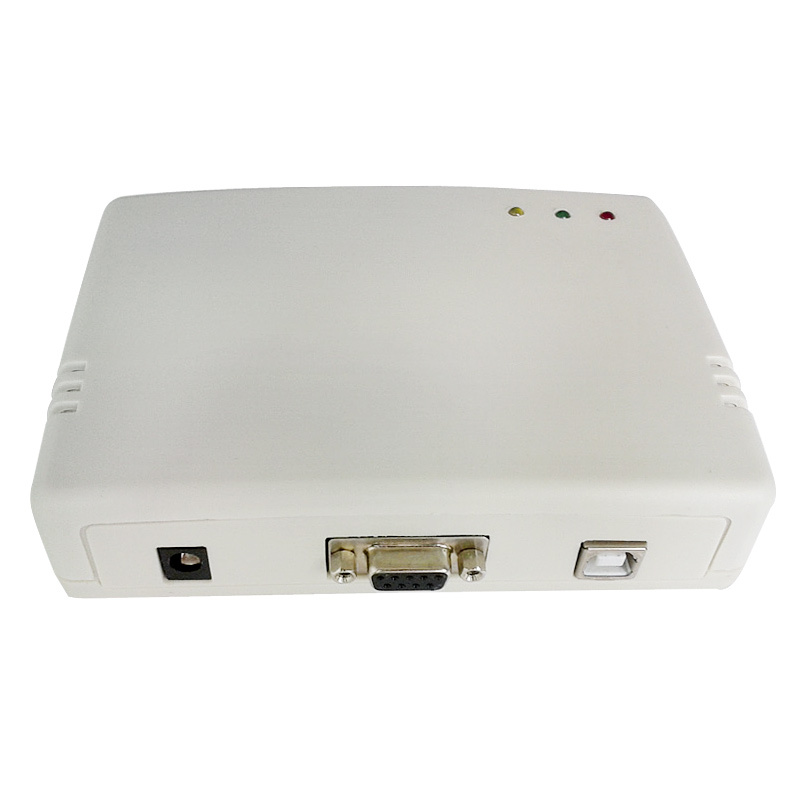

Card issuing desktop reader (NFC-9211)
NFC-9211 is RFID UHF desktop reader, it can read up to 50cm. Small size and convenient to register/write/authorize tag. NFC-9211 has been perfectly used in intelligent tracking solution, such as library management, production line/goods flow management etc.
Please free to visit our website for more new featured products.
|
Technology specifications |
|
Operating frequency |
860MHz~960MHz (Adjustable for local regulation) |
|
RF protocol |
ISO18000-6B, EPC Class 1GEN 2, ISO10374(Container standard), TB/T3070-2002(Railway standard) |
|
Operating mode |
FHSS or fixed frequency(set by software) |
|
Antenna |
Built-in antenna |
|
Power smoothness |
< 0.5DB |
|
RF power range |
20.0~30.0dBm(set by software) |
|
Working mode |
Identify tag mode can be set as:
1) Auto-reading tag in fixed time (Timing mode)
2) Reading tag by external trigging (Trigging mode)
3) Software command(Master-slave mode) |
|
Reading/Writing tag time |
No more than 5 ms every 8 bytes when reading, 25ms every 4bytes when writing |
|
Reading/Writing tag distance |
Reading distance: > 40cm
Writing distance: > 28cm(depends on tag and environment) |
|
Communication interface |
RS-232, RS485, Wiegand26/34/42/50, USB |
|
Power supply |
AC input: 100~240V, 50/60Hz 1.2A
DC output: 5V/5A |
|
Power consumption |
≤ 5W |
|
Product size |
140mm*110mm*36mm |
|
Packing size |
438mm*260mm*85mm |
|
Gross weight |
1.11kg |
|
Net weight |
0.18kg |
|
Working temperature |
-20º C~+70º C(-4º F~+158º F) |
|
Storage temperature |
-40º C~+85º C (-40º F~+185º F) |
|
Accessories |
Power adapter, Power cable, RS-232 cable, USB cable |
|
Work status indication |
Buzzer, LED indicator |
Shenzhen New Force Communication Technology Co., Ltd. (NFC) is a high-tech enterprise specializing in researching, developing, producing and selling HF(13.56MHz), UHF(915MHz), 2.45GHz and 433MHz of Radio Frequency Identification (RFID) Products.
As a leading supplier of RFID equipments in China, NFC own core RFID technology and have many completely independent intellectual property rights of RFID Products. Its products cover RFID UHF reader, 2.4-2.5G, 433MHz Active reader, module, antenna, tag, and RFID application system. In particular, our UHF reader and Active reader are the integration of intellectual property rights, for Multi-port reader, we first created individual control of power per channel, which saves users' hardware cost significantly. Besides, we adopt both ISO18000-6B and EPC GEN 2 dual protocol compatible with the program which enable users have more flexible choices on the types of electronic tags (Tag), this makes our leading position in RFID field.
As one of Shenzhen high-tech and double software enterprises, NFC established a strict quality management system (ISO9001: 2008 QMS). From raw material to finished products, every process has been strictly controlled, to ensure that we can supply high quality products to customer. Our products have got the following honor: FCC certification of USA, CE & RoHS certification of EU, ISO9001: 2008 QMS, our products also passed the testing of Shenzhen Electronics Quality Testing Center. Testing results show that, our products' function and performance parameters meet the requirements, NFC reader with high read rate and little power consumption, it can stable read long distance and normal stable work under the condition of high temperature, low temperature, constant humidity and other harsh environments
Our UHF RFID series products have widely and matured application in the field of intelligent vehicle management, number of terminal ports, Housing estate, Army, Petrochemical industry, Iron& steel Group, all these fields have used NFC's RFID products. Besides, our products also widely used in time attendance, access control, tobacco logistics, warehouse management, asset management, anti-theft security products, production line automation. NFC's products have been widely sold to Middle East, Southeast Asia, North America, Europe etc.
In the course of self-developing, NFC never forgets its great mission of promoting the development of China RFID industry. NFC has established a RFID Joint Research Lab with Hunan University (one of the famous Universities in China) and implements the "Radio Frequency Identification (RFID) University Development Project". By the advantage of combining the "production", "study" and "research", it has great significance on improving the RFID teaching & researching condition of China's college and research institutions. In the mean time, it also helps to train a large number of professional people in RFID industry, which laid a good foundation for China's RFID development in the long run.
NFC will always bear the social responsibility in mind and develop a bright future for RFID industry with other fellow friends of all circles!
