Prod Model: |
AST-7112 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
7 Inches |
Function: |
Car Radio Receiver |
System: |
Wince CE6.0 |
Built In: |
Radio |
Type: |
Car Radio |
Audio Output: |
L/R Channel |
Certification: |
FCC |
Voltage: |
12/24V |
Placement: |
Dashboard |
Product Description

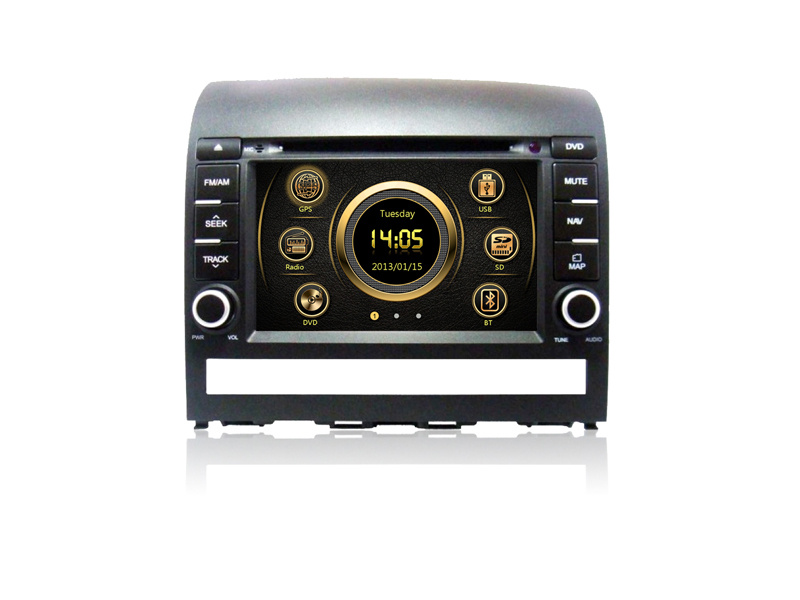

Fit for Fiat Plio
Multi-function Entertainment:
- Original OE Design, Plug and Play
- Built-in GPS, Intelligent Voice Guide, Route Plan, Advanced POI
- Support DVD/VCD/CD/MP3/MP4/CD-R/WMA/JPG/MPEG
- Bluetooth with A2DP, Hands Free
- Digital TV: DVB-T/ISDB-T/ATSC (Optional)
- Analog TV (Optional)
- MP3/MP4 Player
- USB Display/SD Display
- 45Wx4 power amplification and 4.1 channel pre-out
- Backlight Dimmer
Software Highlights:
- Windows CE 6.0
- Dual Entertainment
- GUI Customization, Skin Change
- Languages Customized: More than 17 languages optional
- Start Up Imagine, easy to customized
- Bidirectional Copy Files between: USB Flash/SD and Built-in Storage
- Friendly Navigator Path Setting, easy to change
Hardware Advantage:
- SiRF Prima 600MHz CPU, Powerful ARM 11 architecture, 300MHz DSP, faster speed, higher performance
- Internet, G3 & G2 (By WCDMA, CDMA2000, EDGE, GPRS, etc. ) (Optional)
- Mobile Hard Drive: Support (exFAT, 2TB)
- Play and charge: iPhone 3G, iPod (Classic, Nano, Shuffle), iTouch
- Video: RMVB/RM, AVI, MPEG2/MPEG4/H. 264/WMV; D1 resolution, (NTSC: 720*480/PAL: 720*576)
- Support 3D Hardware Acceleration: HD 3D Graphics for real 3D map
- High-Speed USB 2.0: 480Mbps
- 2USB Port, Charge to mobile phone
- Storage: 4GB SD/Micro (standard), support SD & USB up to 64GB
- Built-in Memory: 256MB Nand Flash (standard)
- DDR RAM: 128MB DDR-400MHz (two times than its competitor)
Main Application:
- With innovative Technology, Latest Platform, WinCE 6.0 core operation system and 600MHz CPU, Friendly User Interface bring you faster and more convenient operation.
- Support 2D/3D hardware acceleration;
Latest original map software, Intelligent voice guide, Automatic route plan, Advanced point-of-interest management.
- An amazing way to surf the Internet by 3G, extend entertainment further in your car.
Support FM/AM radio, RDS information display is available;
Support U. S., Asia and Europe radio standard.
- Support iPod (Classic, Nano & Shuffle) connection, work with iPhone 3G, iTouch and charge them.
Touch control, more convenient and safer to operate while driving.
- Transfer songs, photos, videos among SD card, built-in Nand Flash & USB Flash. Support max storage of 64GB (SD Card & USB Flash);
Support real USB 2.0 High-Speed, 480Mbps, 40 times faster than USB1.1 standard (12Mbps).
- Vehicle standard DVD loader, wide digital screen, high definition display & stereo sound around.
- Digital TV: (Optional)
Any time and everywhere, to discover amazing football live & other enjoyment by digital TV. (DVB-T/ISDB-T/ATSC)
- MP3 and MP4 can be played via local, SD card and USB disc directly;
Support iPod driver connection.
- Built-in Bluetooth with A2DP, Hands Free, support caller ID display, Transfer Phonebook, Caller records, Call history.
- Rearview camera: (Optional)
A rearview camera dramatically eliminates blind spots, making it safer and easier to park and reverse your vehicle.
Disc support | SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/JPEG/WMA/MP3/MP4/DIVX |
Power voltage | DC 9V-16V |
Storage | 128M |
Overload | 4Ω |
Max power output | 45W x 4 |
Tone control | 7db |
Bass 20Hz |
Treble 20KHz |
Output port | Audio: 4 independent output channels |
Video: 1 Composite video output channels |
Input port | Audio: 2 independent input channels |
Video: 3 composite video input channels |
|
Video Features | Video output level: 1.0 VP-P(75Ω overload) |
Video frequency: 20Hz-20KHz(+1 dB) |
Temperature | -10ºC+70ºC |
Humidity | 15-75% (no water frozen) |
VCD/CD PART |
Video system | Auto/NTSC/PAL |
S/N(signal to noise ratio) | 60dB( 1KHz 0dB) |
Resolution | 55dB |
Frequency response | 20Hz-20KHz |
Dynamic range | 80dB |
Distortion | 0.4% |
DVD PART |
Video system | Auto/NTSC/PAL |
S/N(signal to noise ratio) | 75dB( 1KHz 0dB) |
Resolution | 60dB |
Frequency response | 20Hz-20KHz |
Dynamic range | 80dB |
Distortion | 0.4% |
FM PART |
Frequency range | 87.5-108.0MHz |
Practical sensitivity | 22dB |
Down sensitivity | 9dB |
S/N(signal to noise ratio) | 60dB (1KHz 0dB) |
Resolution | 32dB |
Frequency response | 40Hz -13KHz |
Medium frequency | 10.7MHz |
AM PART |
Frequency range | 522-1620KHz |
Down sensitivity | 35dB |
Practical sensitivity | 28dB |
S/N(signal to noise ratio) | 45dB (1KHz 0dB) |
Medium frequency | 450MHz |
Frequency response | 40Hz-2.3KHz |
Astral Electronics Technology Co., Ltd is established based on 8 years experience in car electronics.
We are proffesional supplier of car electronics. Our products include in-car Wince and Android DVD player, GPS navigation, rearseat entertainment, safe parking sensor, camera, DVR etc.
Having professional engneers and good products quality contorl, we are able to provide special design according to customer requirement. With combined industry knowledge and experience, ASTRAL is bringing quality products to our customers. We have worked with our valued customers for more than four years as reliable supplier and parter. We welcome you to contact us for a success cooperation.
Company Service:
As an experienced supplier and partner, our product range mainly includes universal Car DVD GPS Navigation System, special OE-fit car in-dash DVD GPS Bluetooth systems, Car Android PC, Satnavi, headrest DVD player and safely rearview parking systems.
Our Advantage Service:
1, High quality products. All our products are produced with high quality materials and assembled with skilled workers.
2, Wide range of models for choose. More than 200 different models are available, two system(wince and android) for choose
3, Keep developing new products. We keep release new products to satisfy our customers.
4, Customized products are available, we can supply OEM service to make our customers's brand.
5, Exclusive agent is acceptable. In some market or countries, our products are on hot selling, our agent want to have the exclusivity agreement with us. We also support customer with exhibition in their market.
After sales service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our products sold to everywhere of the global.
ASTRAL supply 12months warrenty to the products supplied, we have supply technicial support to customers and also spare parts to assist the warrenty. Most important is our products defective rate is less than 1%.
Transportation service:
DHL, UPS, FedEx, EMS, Air cargo shipping and Sea cargo shipping are all available. We have good agent who could supply us with good price and fast save delivery to customers.
Company History:
2010 Year: ASTRAL Electronics Technology Co., Ltd Established
2011 Year: Headrest DVD Monitor, Flip Down DVD Player, Car DVD Multimedia GPS Navigation booming in market
2012 Year: Attended the HKTDC exhibition in October
2013 Year: With more than 200 different Car OE-FIT DVD GPS Navigation on sale, WINCE System
2014 Year: Full Line Android Car DVD GPS Navigation Multimedia System Published to Market
2015 Year: 10.1inch screen deckless Sat Nav are on hot selling
Output exceed 15, 000PCS/month
