| Prod Model: |
BR-RVS7001L |
| Screen Size: |
7 Inch Digital TFT Panel |
| IP Rating: |
IP67 |
| System: |
PAL and NTSC Auto Switching |
| Resolution: |
800 X R.G.B X480 |
| Brightness: |
450CD/M2 |
| Power Supply: |
9-36V DC |
| Image Sensor: |
1/4" Color CCD |
| Camera Resolution: |
420tvl |
| IR LED: |
18PCS |
| Definition: |
420TVL |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |
| Interface: |
4 Pin Connector |
Product Description

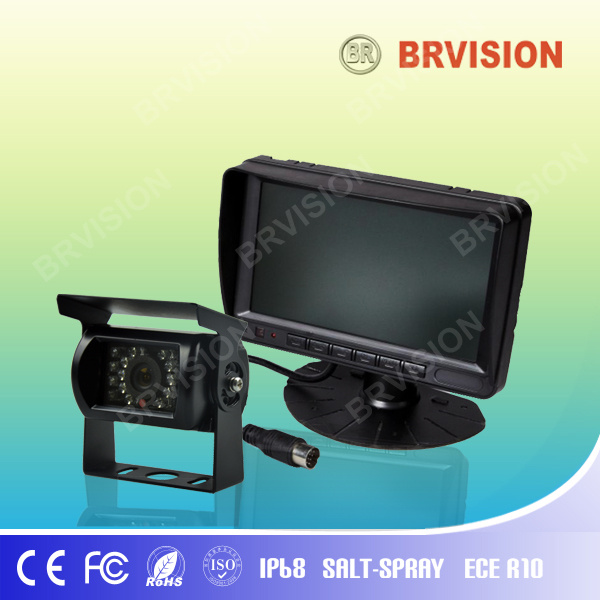

Hot Waterproof Night Vision Vehicle Heavy Duty Reversing Camera System
Monitor Specification:
. Screen size: 7 inch Digital TFT panel
. IP Rating: IP67
. Aspect Ratio: 16:9 image
. Input: 4-way video input with 4 reversing cable
. System: PAL and NTSC auto switching
. Resolution: 800 x R.G.B x480
. Brightness: 450cd/m2
. Power supply: 9-36V DC
. Built-in speaker
. Operation Temperature: -20ºC~+70ºC.RH95% Max
. Storage Temperature: -30ºC~+80ºC.RH95% Max
BR-RVC01
Camera Specification:
- Image Sensor : 1/4" Color CCD
- Resolution:420TVL
- Electronics Shutter:1/60-1/5000(S)
- Lens:2.8mm/2.1mm
- Wide angle: 120¡ã/ 150¡ã
- Power:12-24VDC(+/-10%)
- Audio function (Optional)
- 10M Night Vision at least: 18 infrared LED,
- Rain/sun shutter provide to protect your camer
- Dimensions: L70mm/W45mm/D45mm
- Easy for installation
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
