| Prod Model: |
CT-6203 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
800mz |
| Phd Max: |
32GB SD/USB |
| Pictures: |
JPG PNG GIF |
| Audio: |
MP3 AAC Flac Ape |
| Video: |
1080P HD |
| Steering Wheel Contorl: |
Support |
| Capactive Screen: |
Support |
| WiFi/3G Internet: |
Support |
| Certification: |
RoHS |
| Video Output: |
Video |
| Audio Output: |
Virtual 5.1 Channel |
| Voltage: |
12/24V |
| Placement: |
Dashboard |
| Combination: |
iPod |
| Resolution: |
1080P |
| Screen Size: |
6.2 Inch |

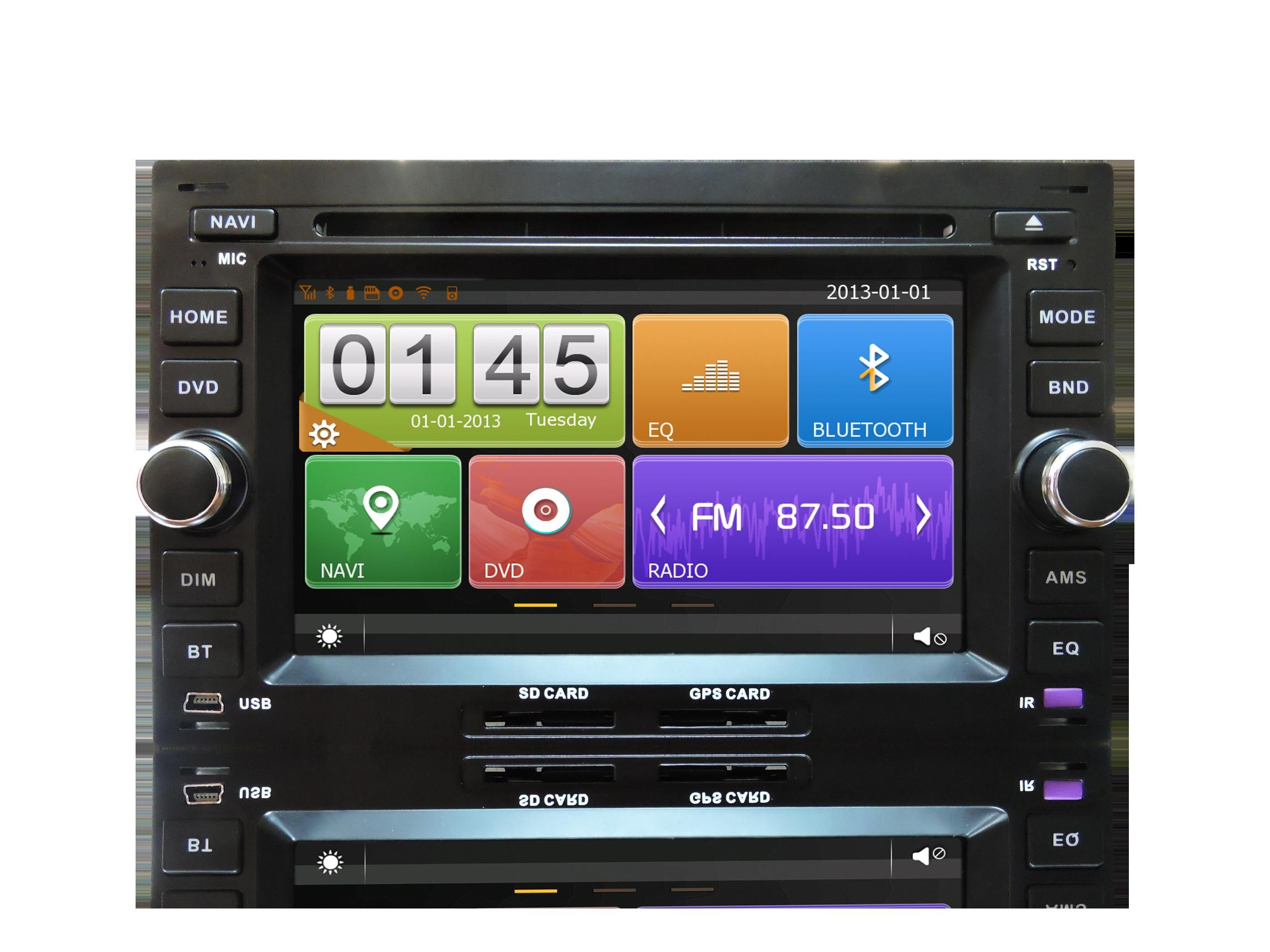

Product Description
Shortcut keys Functio
Capactive Screen
Support 1080P HD Video Display
WIFI/3G Internet
DSP (Digital Signal Processing System)
FM/AM Tuner/RDS
DVD/CD
Support PHD Max 32GB SD/USB
Support Audio:MP3 AAC FLAC APE
Support Video:MPEG4 AVI RM FLV ASF WMV
Support Pictures:JPG PNG GIF
Bluetooth Function
GPS Navigation
Support2D/3D Map Views:YES
Ipod Ready
Support iPod Touch,iPod Nano,iPhone4/4s.
Steering Wheel Control
Supports NTSC/PAL Signsl lnput.
DVR(Front DVR Camera)(Optional)
OS | WINCE6.0 |
| CPU | Mediatek MT3360 Cortex A11 dual-core |
| RAM | SAMSUNG DDR3 256MHz |
| Flansh | 128MHz |
| Radio | ST7706 FM/AM |
| GPS | Mediatek MT3328 |
| Screen | Capacitive and multi-touch screen (Original Hanstar Screen ) |
| TFT drive IC | Mediatek 3360 |
| Loader | Corepine |
| Pick up | HITACHI 1200XH |
| motor drive | MABUCHI |
| Amplifer IC | TDA7388 |
| DVD decoder IC | Mediatek MT3360 |
| Power supply | 4*45W |
| Bluetooth | Mediatek MT6622 |
| Video Decoder | 1080P |
| WIFI | External |
| DVR | External 720P |
| Multi media Parameters |
| Music Format | MP3,WMA,AAC,WAV,FLAC, APE |
| Video Format | MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,Sorenson SparK,Spark,VP8,AVS Stream |
| Picture Format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters |
| Frenqency Range | FM: 65.0MHz-108.0MHz |
| Frenqency Range | AM: 522KHz-1710KHz |
| Country | China,Europe,Russia,USA1,USA2,Japan |
| DVD Parameters |
| Vidio output range | 1.0V-1.2V(75Ω) |
| Compatible Disc | DVD/DIVX/MP4/MP3/CD/VCD |
| Amplifer Parameters |
| Test Voltage | 14.4V |
| Max output power | 4*45W |
| GPS Parameters |
| Operation system | |
| Support Map | IGO/Navitel/Rout66/PolNavi, etc. |
| Main Frenqency | 800MHz |
| Map Solution | 800*480 |
| WIFI Parameters |
| Power supply | Vcc_5V |
| Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| Interface type | USB2.0 |
| Frequency | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK |
| RF Power | 15dBM |
