Prod Model: |
AST-7112 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
7 Inches |
Function: |
WiFi |
System: |
Android O.S.4.4 |
Built In: |
Mirror Link |
Certification: |
SASO |
Video Output: |
VGA |
Audio Output: |
L/R Channel |
Placement: |
Dashboard |
Combination: |
iPod |
Voltage: |
DC 12V |
Product Description
Quick Detail:

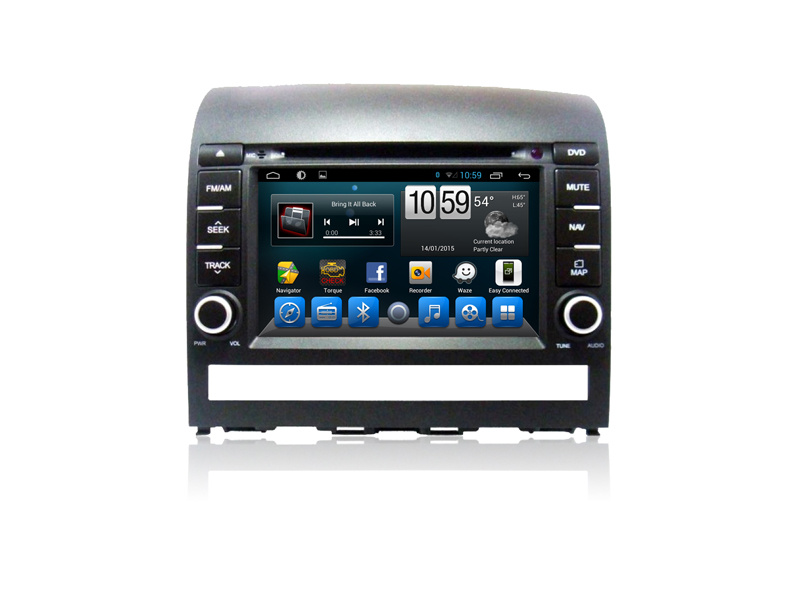

1. Car Make: Fiat Plio
2. Screen Size: 7.0 Inch
3. Placement: Dashboard
4. System: Android O.S.4.4 system
5. High temperature loader
6. HD Resolution Capacitive Touch Panel
Android System Specification:
- Android 4.4 OS, fast start-up
- A9 Dual Core (1.0G + 0.5G)
- Support Mirror Link/1080P DVR/TPMS
- Built-in Wifi and 3G, fast speed surfing
- HD Resolution Capacitive Touch Panel
- Independent DSP Sound Effects
- Radio Station name are editable, support FM/ AM/ RDS
- Bluetooth built-in for hands-free, support full phonebook and name search
- Digital TV ISDB-T, DVB-T MPEG 2, MPEG 4, ATSC optional.
- Car DVR function(optional).
- File management.
- Video and Audio Copy.
- 1080P HD Video display.
- Auto rear viewing function.
- IPOD ready optional.
- Built-in HD GPS.
- DVD/VCD/CD/MP3/MPEG4/DIVX/CD-R/WMA/JPEG
RAM | DDR3 1Gb |
ROM | 8G EMMC |
SD | support 32G SD card |
VIDEO | RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc. |
AUDIO | MP3,WMA,WAV,OGG,FLAC |
GPS MODULE | Support GPS and Glonass |
OS | Android 4.4 |
Temperature | -20°C TO +70°C |
Navigation software | IGO, navitel, Sygic etc |
DVD decoder | SUNPLUS 8202TQ |
Screen | 800*480 / 1024*600 capacitive touch screen. |
FM IC | NXP 6624 with RDS |
WIFI | Build-in or External |
3G GPRS | External (optional)3G dongle |
TV | Build-in Analog or Digital TV( DVB-T, ISDB-T,DVB-T2) |
Bluetooth | A2DP and Bluetooth OBD |
Steering Wheel control | Support ( Some cars need CAN BUS ) |
Rear view video | Support Automative turn on when reversing |
Power on | 16S~20S, high speed turn on system |
Power off | Rearly shut off the OS, <10mA |
work volt | DC12V |
Operate volt range | 10.8V ~16V |
Max current | 10A |
Features | GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In, |
Anti shock | Mechanical anti-shock & Electronic anti-shock |
Display mode | 16:9 |
Touch Screen | Capacitive touch screen |
Screen Resolution | 800*480 |
OSD Language | English,Russian, Hebrew, Arabic,German,Spanish, French,Thai,Italian,etc. |
Radio Tuner | FM/AM |
Station Preset Qty. | 18 |
Support RDS | Yes |
Radio response bandwidth | AM: 522~1620 KHz, FM: 87.5~108 MHz |
Video Output System | NTSC,PAL |
Signal-to-Noise Ratio | 85dB |
Media Type | CD,HDCD,MP3,WMA,VCD,DVD,DVD-R/RW, DVD+R/RW,CD-R/RW,JPEG,etc. |
Amplifier output power / channel qty | 45W*4 |
EQ mode | Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic; |
Audio Line out channel | 5.1 |
Bluetooth Version | V2.0,support A2DP(Bluetooth Stereo Music), can play stereo music through Bluetooth |
Microphone | Built-in, External is optional |
Reversing Input mode | Screen automatic display rear camera video when reversing whether power off or on. |
Rear Camera | Is optional for choose |
SD/USB/iPod Playback mode | Automatic paly multimedia when the device connected unit |
Video Input | 2 Channel, One for camera, one for aux in |
Video Output | 2 Channel |
Audio Input | 1 Channel for aux in |
Audio Output | 4.1 Channel |
Astral Electronics Technology Co., Ltd is established based on 8 years experience in car electronics.
We are proffesional supplier of car electronics. Our products include in-car Wince and Android DVD player, GPS navigation, rearseat entertainment, safe parking sensor, camera, DVR etc.
Having professional engneers and good products quality contorl, we are able to provide special design according to customer requirement. With combined industry knowledge and experience, ASTRAL is bringing quality products to our customers. We have worked with our valued customers for more than four years as reliable supplier and parter. We welcome you to contact us for a success cooperation.
Company Service:
As an experienced supplier and partner, our product range mainly includes universal Car DVD GPS Navigation System, special OE-fit car in-dash DVD GPS Bluetooth systems, Car Android PC, Satnavi, headrest DVD player and safely rearview parking systems.
Our Advantage Service:
1, High quality products. All our products are produced with high quality materials and assembled with skilled workers.
2, Wide range of models for choose. More than 200 different models are available, two system(wince and android) for choose
3, Keep developing new products. We keep release new products to satisfy our customers.
4, Customized products are available, we can supply OEM service to make our customers's brand.
5, Exclusive agent is acceptable. In some market or countries, our products are on hot selling, our agent want to have the exclusivity agreement with us. We also support customer with exhibition in their market.
After sales service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our products sold to everywhere of the global.
ASTRAL supply 12months warrenty to the products supplied, we have supply technicial support to customers and also spare parts to assist the warrenty. Most important is our products defective rate is less than 1%.
Transportation service:
DHL, UPS, FedEx, EMS, Air cargo shipping and Sea cargo shipping are all available. We have good agent who could supply us with good price and fast save delivery to customers.
Company History:
2010 Year: ASTRAL Electronics Technology Co., Ltd Established
2011 Year: Headrest DVD Monitor, Flip Down DVD Player, Car DVD Multimedia GPS Navigation booming in market
2012 Year: Attended the HKTDC exhibition in October
2013 Year: With more than 200 different Car OE-FIT DVD GPS Navigation on sale, WINCE System
2014 Year: Full Line Android Car DVD GPS Navigation Multimedia System Published to Market
2015 Year: 10.1inch screen deckless Sat Nav are on hot selling
Output exceed 15, 000PCS/month
