Prod Model: |
AST-8075 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
8 Inches |
Function: |
WiFi |
System: |
Android O.S.4.4 |
Built In: |
Mirror Link |
Certification: |
SASO |
Video Output: |
VGA |
Audio Output: |
L/R Channel |
Placement: |
Dashboard |
Combination: |
iPod |
Screen Size: |
8 |
Voltage: |
DC 12V |

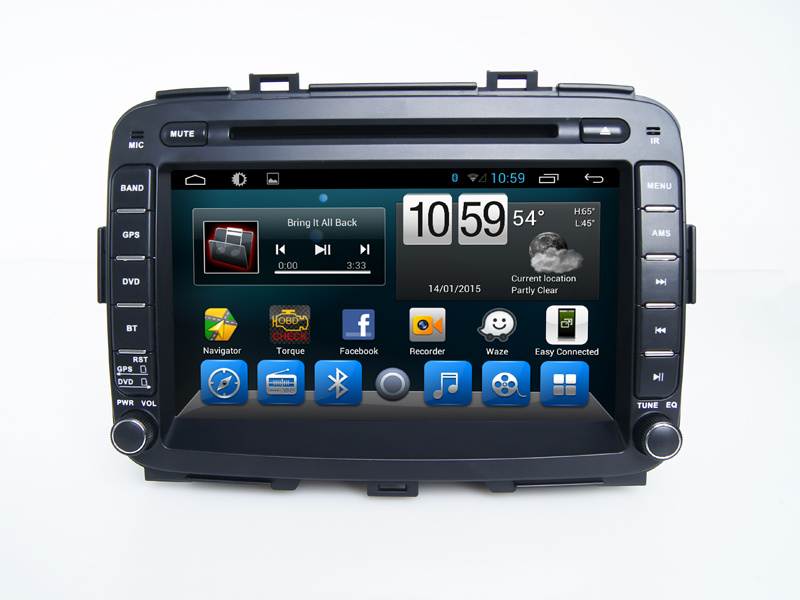

Product Description
Quick Detail:
1. Car Make: Kia Carens
2. Screen Size: 8.0 Inch
3. Placement: Dashboard
4. System: Android O.S.4.4 system
5. High temperature loader
6. HD Resolution Capacitive Touch Panel
Android System Specification:
- Android 4.4 OS, fast start-up
- A9 Dual Core (1.0G + 0.5G)
- Support Mirror Link/1080P DVR/TPMS
- Built-in Wifi and 3G, fast speed surfing
- HD Resolution Capacitive Touch Panel
- Independent DSP Sound Effects
- Radio Station name are editable, support FM/ AM/ RDS
- Bluetooth built-in for hands-free, support full phonebook and name search
- Digital TV ISDB-T, DVB-T MPEG 2, MPEG 4, ATSC optional.
- Car DVR function(optional).
- File management.
- Video and Audio Copy.
- 1080P HD Video display.
- Auto rear viewing function.
- IPOD ready optional.
- Built-in HD GPS.
- DVD/VCD/CD/MP3/MPEG4/DIVX/CD-R/WMA/JPEG
RAM | DDR3 1Gb |
ROM | 8G EMMC |
SD | support 32G SD card |
VIDEO | RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc. |
AUDIO | MP3,WMA,WAV,OGG,FLAC |
GPS MODULE | Support GPS and Glonass |
OS | Android 4.4 |
Temperature | -20°C TO +70°C |
Navigation software | IGO, navitel, Sygic etc |
DVD decoder | SUNPLUS 8202TQ |
Screen | 800*480 / 1024*600 capacitive touch screen. |
FM IC | NXP 6624 with RDS |
WIFI | Build-in or External |
3G GPRS | External (optional)3G dongle |
TV | Build-in Analog or Digital TV( DVB-T, ISDB-T,DVB-T2) |
Bluetooth | A2DP and Bluetooth OBD |
Steering Wheel control | Support ( Some cars need CAN BUS ) |
Rear view video | Support Automative turn on when reversing |
Power on | 16S~20S, high speed turn on system |
Power off | Rearly shut off the OS, <10mA |
work volt | DC12V |
Operate volt range | 10.8V ~16V |
Max current | 10A |
Features | GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In, |
Anti shock | Mechanical anti-shock & Electronic anti-shock |
Display mode | 16:9 |
Touch Screen | Capacitive touch screen |
Screen Resolution | 800*480 |
OSD Language | English,Russian, Hebrew, Arabic,German,Spanish, French,Thai,Italian,etc. |
Radio Tuner | FM/AM |
Station Preset Qty. | 18 |
Support RDS | Yes |
Radio response bandwidth | AM: 522~1620 KHz, FM: 87.5~108 MHz |
Video Output System | NTSC,PAL |
Signal-to-Noise Ratio | 85dB |
Media Type | CD,HDCD,MP3,WMA,VCD,DVD,DVD-R/RW, DVD+R/RW,CD-R/RW,JPEG,etc. |
Amplifier output power / channel qty | 45W*4 |
EQ mode | Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic; |
Audio Line out channel | 5.1 |
Bluetooth Version | V2.0,support A2DP(Bluetooth Stereo Music), can play stereo music through Bluetooth |
Microphone | Built-in, External is optional |
Reversing Input mode | Screen automatic display rear camera video when reversing whether power off or on. |
Rear Camera | Is optional for choose |
SD/USB/iPod Playback mode | Automatic paly multimedia when the device connected unit |
Video Input | 2 Channel, One for camera, one for aux in |
Video Output | 2 Channel |
Audio Input | 1 Channel for aux in |
Audio Output | 4.1 Channel |
