Product Description

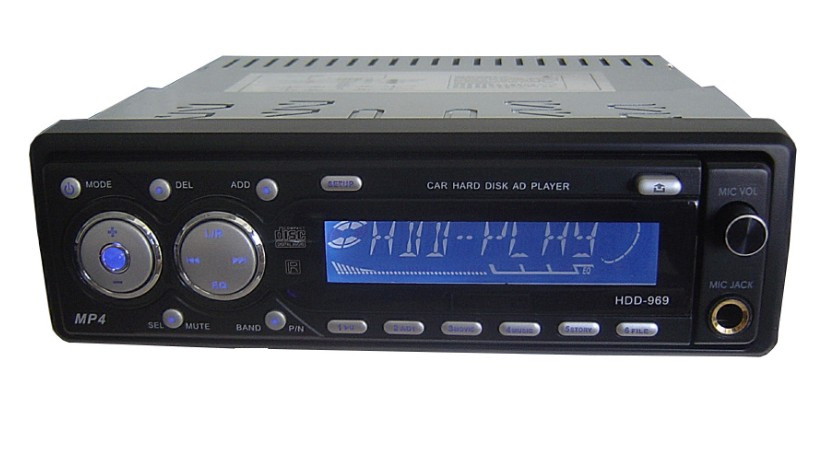

High qaulity car MP4/ advertisement player, suit for car, home movie cinema, FM, bus advertisement use.
Feature:
Hard disk hot plugging, full matel head, rotation panel
Built in amplify, support high quality music output
Support advertise movie automatically run after music or teleplay segment preset .
Support roll up words advertise
Built in FM/AM
Built in anti-shock system
Built in microphone input
Support 20G, 40G, 60G, 80G hard diskThe hard disk can be use as USB hard disk
Specs.:
HDD: 20G 40G 60G 80G(2.5)
Rotate speed: 5400; Current: 0.8A-2A; Voltage: DC5V
AM Adjustment Frequency scope: 522-1620kHz(9KHz)
Intermediate frequency: 25dB0kHz; Sensitivity(-20Db): 50dB (+/-9KHz)
Selectivityn: 50dB(+-9KHz)
FM Tuning Tuning scope: 87.5-108MHz(50KHz)
Intermediate frequency: 10.7MHz; Sensitivity: 18dB; SNR: 55dB; Stereo separation: 30dB
Frequency response: 30-15000Hz
Fans Voltage: 9-16V; Rotate speed: 4500-5800; Current: -250-300mA
Power Amplifier Max. output power: 4X45W; Successive output power: 4X25W
Impedance: 4ohm; Tone: BASS+/-7Db (100Hz); TRW+/-7Db (10kHz)
Power supply: 12VDC(10V-14.4V); Fuse: 10A
Size of installation: 182x165x52 mm
Size of panel: 188x165x58 mm
Working temperature: -10 ~80 Celsius degrees
Mode of grounding: cathode grouding
Dimension: 135x82x20 MM
Accessories:
Car power cable
Remote control
USB cable
AV cable
Key
User's manual
Packing: 1sets/gift box, 6sets/carton
Kindyelec Co., Ltd was founded in 1999 as a professional manufaturer and exporter of Consumer electronics products, and our products range covers:
*Video Door Phone (wireless and wired)
*Car Driving Video Recorder (Car DVR), Car Black box, Car Headrest DVD, Car advertiser player(AD player)
*TFT LCD TV and DVB-T(digital TV)
*Eyewear video glasses
Factory size up to 8000 SQ. M. Include its R&D staff and sales team office. Monthly production capacity reached 20, 000 sets and anual turn over 15 million US dollars. We are flexible with your order quantity, and delviery in 2 weeks time.
Kindyelec Co., Ltd exports 90% of it's products to US, Europe and Australia, and most of them are from OEM customers. Above all, we can keep most of our customer continuely order form after the first deal with it's excellent services.
All our products are CE-marked, RoHS-compliant and UL-listed. Under our strict QC system and along with our one-year warranty policy for all orders, you will have no trouble for quality problems. Select and buying any item from our catalog, you will find you have made a right decision.
