Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
KIA Carnival Ts6822 |
Certification: |
CE |
Video Output: |
VGA |
Audio Output: |
Virtual 5.1 Channel |
Voltage: |
12v |
Type: |
Car DVD |
Product Description

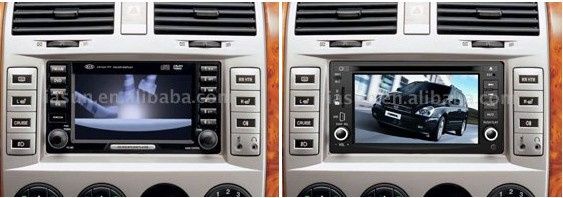

Car DVD Player
Key features:
1.6.2 inch 16: 9 800*480 digital high definition TFT LCD touch screen
2. Built-in GPS navigation system
3. Build-in Bluetooth for hand free (Coming Tel No. Display function & Call out directly by touch screen)
4. SD card slot, support mp3/mp4/Divx/WM etc
5. Compatible with mp3/mp4/DVD/VCD/CD/CD-R/Divx/CD-RW etc
6. With excellent mechanical anti-vibration and electronic shock protection
7. Uniquely designed circuitry including standby function to increase battery durability
8. Adjustable parameters can be memorized automatically, and resume back to the default value
9.3D interface make operation to easy
10. Real time clock function
11. One channel video input, two channel video output; Two channel audio input, three channel audio output
12. Dualzone function (lister radio/CD while using GPS)
13.30 preset radio stations
14. Multi-function OSD menu
15. Small light available on the button of the panel
16. Fluorescent keys available for the remote control
17. Radar detection and rearview mirror both available
18. CDC (multiple disk cartridge) play control function available
19. Original Canbus system for steering wheel control
20. Built-in DVB-T for digital television system (optional)
21. Built-in TV tuner
22. English/Arabic/Russian/Portuguese/Italian/Hebrew/Turkish/Czech languages etc are available
System parameters
Working voltage
DC 11V-14V
Working current
MAX 15A
Standby current
25 mA
Video system
Automatic PAL/NTSC
GPS specification
Operation system
WINCE 5.0 CORE
Support map
Garmin, Tomtom, IGO, Route 66 etc
Processor
SAMSUNG high performance processor S3C2440A-40
EMS memory
64MB SDRAM
Storage device
128MB
Display output
CVBS+S-VIDEO output
Audio output
Stereo CD Quality
Main frequency
400MHz
Support audio type
MP3/PCM/WMA
Support video type
ASF/AVI/WMV/DIVX
Chipset
SIRF STAR 3
Frequency
1.575GHz
Channel number
20channels
Tracking sense degree
-159dbm
Position accuracy
10m, 2D RMS, WAAS enable
Velocity
0.1m/s
Data renewal rate
1Hz
Re-catching time
Average 0.1s
Hot start time
Average 1s
Warm start time
Average 38s
Cold start time
Average 42s
The biggest fixed height
18000m
The biggest velocity
515m/s
Power specification
DV 12V, current<500mA
Consumption
4.5W(12V/360mA), normal 3W(12V/250mA)
DVD parameters
Video output range
1+10.2Vp-p(75Ω)
Disc spec
Diameter 12cm disc
Compatible disc
DVD/VCD/CD/MP3/WMA/JPEG/MPEG4
Amplifier parameters
Testing voltage
13.8V
Maximum power output
4× 45W
Speaker impedance
8Ω (4-8Ω acceptable)
Audio parameters
Track imbalance degree
≤ 2dB
Segregation degree
≥ 45dB
Frequency response
20Hz-20KHz (± 3dB)
Volume adjustment
Low 100Hz± 7dB
Medium 1KHz± 7dB
High 10KHz± 7dB
Radio parameters
FM/AM frequency
FM: 87.5MHz-108MHZ
AM: 522KHz-1620KHz
Tune method
PLL frequency complex tune
Display method
TFT Graphical User Interface OSD
Storage quantity
FM radio: 18channels
AM radio: 12channels
Search method
Automatic/manual
