| Prod Model: |
TAD-7022 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
FCC |
| Placement: |
Dashboard |

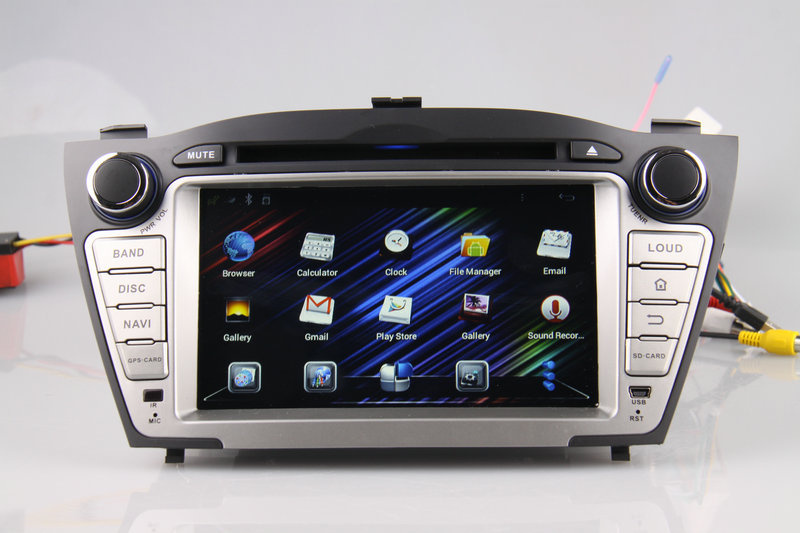

Product Description
OS: Android 4.4.4
CPU: ARM Cortex A10 1GHz Single core
RAM: 1GB DDR3
Nand Flash: 4GB
Capacitive multi-touch screen
GPS+iPod+BT+ATV+Radio+AUX IN
CAN BUS(optional)
|
OS |
|
Android 4.2.2 system/Android 4.4.4 system optional, same price. |
|
|
CPU |
Rockchip 3066 Cortex A9 dual-core |
|
RAM |
SAMSUNG DDR3 1.6GB |
|
Flansh |
8GB |
|
Radio |
FM/AM |
|
GPS |
SIRF III |
|
LCD Screen |
Original Hanstar Screen |
|
Capacitive screen |
multi-touch screen (DPT brand ) |
|
TFT drive IC |
RK3066 |
|
Loader |
FORYOU DL-30 |
|
Pick up |
HITACHI 860XH |
|
motor drive |
MABUCHI |
|
Amplifer IC |
TOSHIBA 7384 |
|
DVD decoder IC |
Sunplus 8202VGQ |
|
Radio IC |
ST TDA7706 |
|
Power supply |
4*50W |
|
Bluetooth |
Free Wing FM3507 |
|
Video Decoder |
1080P HW |
|
WIFI |
Built in |
|
DVR |
USB Camera (PC Standard) |
|
Mirror Link |
Support WIFI Display |
|
Multi media Parameters |
|
Music Format |
MP3\WMA\AAC\RM\LFAC etc |
|
Video Format |
MPEG-1/2/4\H264\H263\VC1\RV\RMVB\DivX\Sorenson SparK\Spark\VP8\AVS Stream^ |
|
Picture Format |
JPG/BMP/JEPG/GIF/PNG |
|
Radio Parameters |
|
Frenqency Range |
FM:76.0MHz-108.0MHz |
|
Frenqency Range |
AM: 522KHz-1620KHz |
|
Country |
China\Europe\Eastern\Europe\Russia\USA1\USA2\Japan |
|
DVD Parameters |
|
Vidio output range |
1.0V-1.2V(75Ω) |
|
Compatible Disc |
DVD/DIVX/MP4/MP3/MP2/VCD |
|
Amplifer Parameters |
|
Test Voltage |
13.8V |
|
Max output power |
4*50W |
|
GPS Parameters |
|
Operation system |
Android 4.2.2 |
|
Support Map |
Android 4.2.2 Map |
|
Main Frenqency |
1.6GHz |
|
Map Solution |
800*480 |
|
WIFI Parameters |
|
Power supply |
Vcc_3.3V |
|
Suppoted Protocol/standard |
IEEE802.11B/g/n compatible WLAN |
|
Interface type |
USB2.0 |
|
Frequency |
2.4-2.484GHz |
|
Modulation |
OFDM/DBPSK/DQPSK/CCK |
|
RF Power |
15dBM |
|
Main Function |
|
♦.OS : Android 4.2.2 system |
|
♦.CPU : Rockchip 3066 Cortex A9 dual-core |
|
♦.RAM : SAMSUNG DDR3 , 1.6GB |
|
♦.Flansh : 8GB |
|
♦.Built in WIFI |
|
♦.Built in DVR |
|
♦.Capacitive multi-touch screen |
|
♦. Screen resolution : 800x480 |
|
♦.Built-inBluetoothfor mobile hands-free. |
|
♦.Built in IPODfunction |
|
♦.Built inanalog TV ( DVB-T,ISDB,ATSC optional ) |
|
♦.Built in GPSfunction |
|
♦.steering wheel control function |
|
♦.Radio receiving: FM/AM can be stored 30 stations. RDS is available . |
|
♦.Video: MP4,H.264,WMV,AVI,RM/RMVB,VOB and more |
|
♦.Audio: MP3,WMA,WAV and more |
|
♦.USB/SD card port: support MP4,DIVX,JPEG,MP3 and WMA playback |
|
♦.Car backing display: Car reverse camera input (switch automatically) |
|
♦.AV output/input : 2 video out, 4audio output, 2video input ,2 audio input |
|
♦.Subwoofer output 4*50W |
|
♦.Compatible with DVD,DVD-R,DVD-RW,HDVD,DVCD,MP3,MP4,CD-R,CD-RW,VCD,DIVX,WMA etc. |
|
♦.Maximal power:4X50W maximum power output |
