Prod Model: |
AD-7191 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
CE |
Video Output: |
2 RCA |
Audio Output: |
L/R Channel |
Voltage: |
12/24V |
Placement: |
Dashboard |
Combination: |
GPS |
Product Description

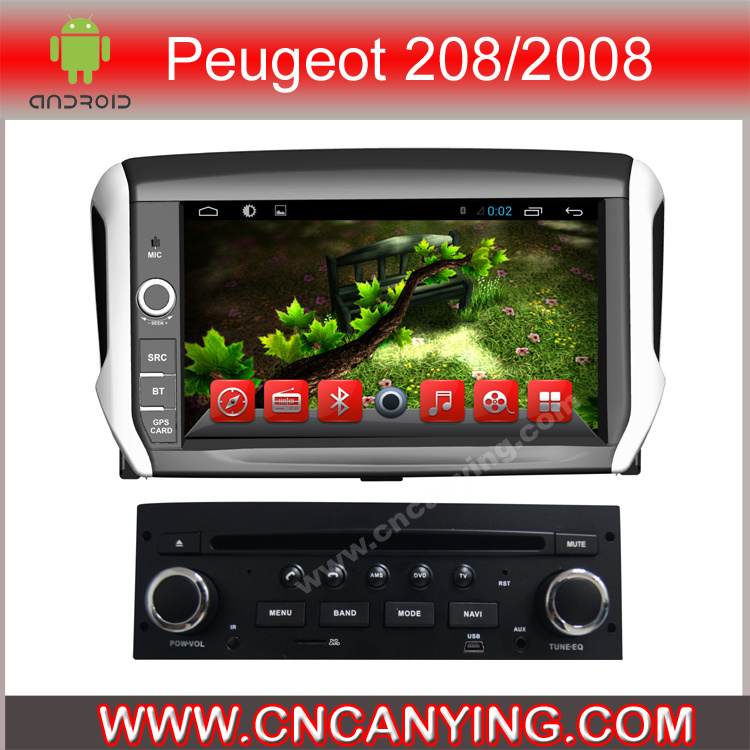

Special for Peugeot 208/2008
Pure ANDROID 4.4 system
Specifications
System
CPU CorteX A9 Dual Core 1GHz Mstar786
RAM DDR3 1GB
ROM 8G EMMC
SD support 32G SD card
VIDEO RMVB, MKV, MOV, WMV, AVI, MPG, TS with 1080P H. 264 format etc. Alomost all format was supported
AUDIO MP3, WMA, WAV, OGG, FLAC
GPS MODULE Support GPS and Glonass
OS Android 4.4
Temperature -20° C TO +70° C
OS update SD update
APP update SD update
Logo update SD update
Navigation software IGO, navitel, Sygic etc
DVD decoder SUNPLUS 8202TQ
Screen SUPPORT HD TFT (800*480/1024*600)and capacitive touch screen.
FM IC NXP 6624 with RDS
WiFi Build-in or External
3G GPRS External (optional)3G dongle
TV Build-in Analog or Digital TV( DVB-T, ISDB-T, DVB-T2)
Bluetooth A2DP and Bluetooth OBD
Steering Wheel control Support (Some cars need CAN BUS
Rear view video Support Automative turn on when reversing'
Power on 16S~20S, high speed turn on system
Power off Rearly shut off the OS, <10mA
Work volt DC12V
Operate volt range 10.8V ~16V
Max current 10A
Form Factor In-Dash
Enclosure Type 2 DIN
Features GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In,
Ill control Yes
Anti shock Mechanical anti-shock & Electronic anti-shock
Motorized slide-down Face NO
Panel Angle Control NO
Display
Display mode 16: 09
Screen Size 6.2 7 8inch
Touch Screen Capacitance touch screen
Screen Resolution 800*480
Display Type LCD-TFT
Brightness Control Yes
OSD Language English, Russian, Arabic, German, Spanish, French, Thai, Italian, Chinese, etc.
Display off NO
Remote Control Yes
Radio
Radio Tuner FM/AM
Station Preset Qty. 18
Support RDS Yes
Radio response bandwidth AM: 522~1620 kHz, FM: 87.5~108 MHz
DVD Video Output System NTSC, PAL
Signal-to-Noise Ratio 85dB
Media Type CD, HDCD, MP3, WMA, VCD, DVD, DVD-R/RW, DVD+R/RW, CD-R/RW, JPEG, etc.
Amplifier
Form Factor In-Dash unit integrated
Amplifier output power / channel qty. 45W*4
EQ mode Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic;
Loudness Yes
Subwoofer Yes
Audio Line out channel 4.1
Bluetooth Version V2.0, support A2DP(Bluetooth Stereo Music), can play stereo music through Bluetooth
Built-in Microphone Yes
Rear Camera Input
Reversing mode Screen automatic display rear camera video when reversing whether power off or on.
SD/USB/iPod
Playback mode Automatic paly multimedia when the device connected unit
Interface
Video Input 2 Channel, One for camera, one for aux in
Video Output 2 Channel
Audio Input 1 Channel for aux in
Audio Output 4.1 Channel
Connector Type 1*Power, 1*iPod, 1*USB, 1*GPS ANTENNA
USB/SD CARD Port USB Port, SD Port
iPod Control Yes
Canying Industrial Co., Limited is a professional manufacturer of car DVD Players, Integrated Car DVD GPS navigation systems. Car monitors. Established in year 1998, Located in Shenzhen China. It covers an area of 6, 800 square meters and employs more than 300 people. We Have fruitful experiences and keen senses in car multimedia GPS development. Our products have been exported to overseas markets, including the USA, Europe, South & North America, Russia, Malaysia, and Middle East.
Our monthly production capacity is more than 10, 000 units. We have advanced R&D engineer Teams. Expert sales, Experienced QC peoples, and customer service teams, professional production base, and a research center, including mould center, SMT process center, assemble factory. Our factory is ISO9001 certified; Our products have already got FCC and CE approval, and match the RoHS&WEEE due to our strict quality guarantee system. We offer comprehensive OEM and ODM services for customers. Good quality and Great service let us won a good reputation in this industry.
Canying's Car entertainment and GPS navigation product, pursuing the principle of "Science serve for people, "customer is the NO. 1 important forever", is dedicated to supply the customers with high-class Car entertainment and GPS navigation products.
