| Prod Model: |
ZW-Ford-118 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen: |
7'' HD Digital Capacitive Screen |
| Combination: |
iPod |
| Placement: |
Dashboard |
| Certification: |
SASO |
| Voltage: |
12/24V |
| Audio Output: |
L/R Channel |
| Video Output: |
VGA |
| Resolution: |
1024*600 |
Product Description
Android 4.4.4 System
CAPACTIVE HD 1024X600 Screen
1080P HD Video
CPU: Rockchip 3066 Cortex A9 Dual-Core 1.6GHZ Frequency
1G DDR3 RAM Memory
Built In 8GB Inand
Built-In DVR Function With External Camera (Click HERE for details)
External Bluetooth Microphone
Built-In WIFI Module
Support External 3G Dongle
Built-In Navigation With 3D Map (Map In Inand )
Quick Response After Lighting The Car: Within 1 Sec For Starting, Within 2 Secs For Sound,Within 3 Secs For Rearview,
Within 25 Secs For Operation When Tons Of Applications Installed
APE Music
Support HD 2D & 3D Games
Front And Rear Camera Can Work Together
Support Thousands Of Softwares Downloading From Android Market
Support SD/MMC/SDHC SD Ports, SDHC Supports Max 32G, HDD
Bluetooth Supports All Brands Cellphones,Phonebook Input,Music Playback, Supports Name Search By A-Z
Video Support: WMV(VC1 Code)AVI (H.264, MPEG4,Xvid, WMV),MP4 (H.263, H.264, MPEG4), MPG(MPEG-2),M4V(H.264, MPEG4)
Configuration
OS
Android 4.4.4 system
CPU
Rockchip 3066 Cortex A9 dual-core
RAM
DDR3 1GB
Flash
Built in 8GB
Video Decode Support
1080P
Touch Screen
Capacitive touch screen
GPS
Map
Stored in memory or SD card
Map Formate Support
Google map online, Sygic, IGO, 3D maps, etc.
Media Player
Yes
Card Supported
Micro SD Card
INTERNET
3G
Support 3G WCDMA 3G dongle
Wi-Fi
Built-in WiFi Receiver
Android Apps Installation
Yes
Display Screen
Screen Type
Digital TFT touchscreen
Resolution
HD 1024X600
Screen Dimension
7 inch 16:9
Wall Paper
Live wallpaper
GUI Interface
3D Interface
Language
Main Interface Language
English, Deutch, Franch, Portuguese, Spanish, Italian, Espanol,etc.
DVD Control Language
English,Francais,Spainish,Italian,Portuguese,etc.
DVD Playback
Disk Format Supported
DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW
Media
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD
Bluetooth
A2DP
Yes
Microphone
External Mic
Received Call
Yes
Dialled Call
Yes
Missed Call
Yes
Download Contacts
Yes
Store Contacts
Yes
TV Tuner
Built-in Analog TV
No
Analog TV System
/
Built-in DVB-T Tuner
/
DVB-T Format
/
Built-in ISDB Tuner
/
Radio
AM Frequency Range
522-1620 (Europe), 530-1710 (America)
FM Tuning Range
87.5-108 (Europe), 87.5-107.9 (America)
RDS
Yes
iPod Control
Touchscreen Control
Can Control Music Through Touchscreen
Show Information Of Music
Yes
Play Video
No
Storage Media
SD Card Slot For Music/Movie
Micro SD Card Slot
MAX Memory Supported 32GB
USB Port For Music/Movie
Mini USB Port
MAX Memory Supported 32GB
Position: Front Panel
Portable HD
Yes
Video & Audio
Video Input
1-Channel RCA Input
Video Output
2-Channel RCA Output
Audio Input
2-Channel RCA Input
Audio Output
4.1Channel RCA Output
Reverse Camera Input
Yes
3 Zone Out
No
Other Functions
2-Zone
Yes (Listen Radio/CD While Watching GPS Image)
3-Zone
No (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV
From The Sub-monitor Simultaneously)
Pictrue In Pictrue
No
Steering Wheel Control Function
Yes
CANBUS
No
MFD
No
TMC
No
V-6 Disc Changer Memory
No
CDC
No
Parking Assistance
No
Game
Yes
Button Back Light
Multi-colour button light

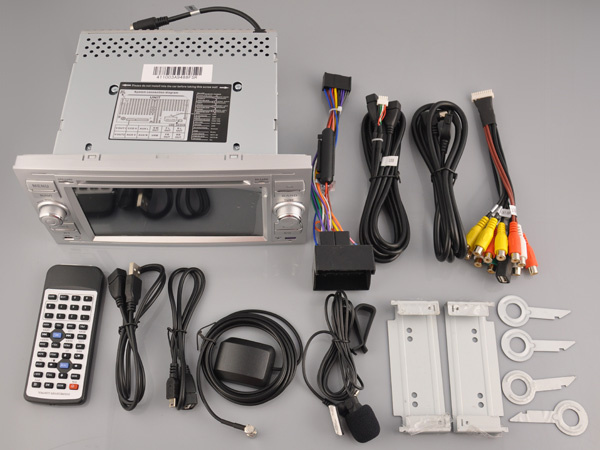

Accessories
Power Cable*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,USB Cable*1
CCG (Chinese Connection Group Limited) specializes in development and production of Car DVD, Car GPS navigation, Car SAT NAV headunit more than 8 years. We are providing good quality products and service for our clients. Our products have been delivered to Europe, America, Africa and Oceania, etc. We have been gaining a high reputation among our partners and customers in terms of OEM/ODM technology and quality.
Emphasis on product quality
We develop and manufacture Car DVD player, Car GPS navigation system to all our clients. To ensure the consistency of our product quality, Our QC members with five years' experience on average monitor the entire production process. We also offer one year warranty.
Emphasis on Management
We insist on high standard, scientific development thoughts, devoted to pursuing continuous creativity of technology and management. Relying on the advanced equipments and high & stable quality, We have been approved by ISO9001: 2000, FCC, CE. We benefit all our customers without any trouble of product quality.
Delivering in just One or Three working days
We possess an 800-square-meter factory equipped with five production lines. Our advanced equipment includes automatic chip SMT lines, dust-free vacuum refilling machines and dust-free vacuum packaging machines. We produce 1, 0000 units every month. Our delivery lead time is just one or three working days.
Providing best products and best service is our company target!
Contact us today by email or phone and start with a small order, you will find we are your most valuable cooperator.
