| Prod Model: |
AD-6192A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Video Output: |
Video |
| Audio Output: |
L/R Channel |
| Voltage: |
12V |

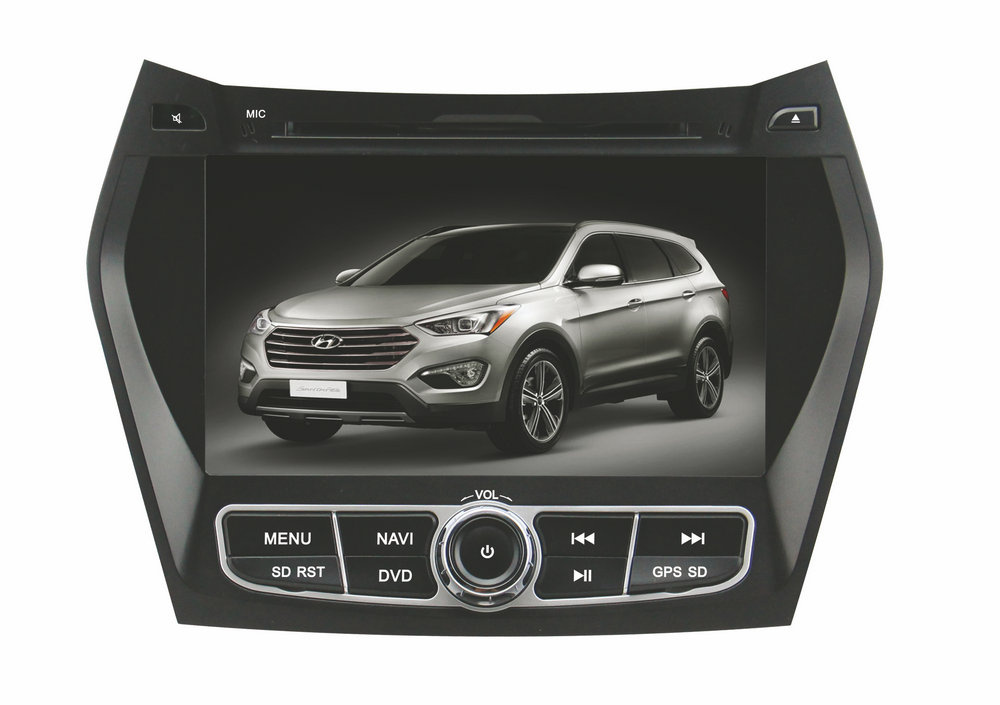

Product Description
1. Sliding iPhone style GUI menu
2. Open logo and wallpaper option
3. 16: 9 HD Digital TFT LCD with magic touch-screen
4. Resolution: RGB output 800*480 pixels
5. High sensitive AM/FM radio receiver and 4*45 watts amplifier
6. Built-in GPS navigation system, Dual-zone playing
7. Compatible: DVD/VCD/CD/MP3/MP4/DIVX/USB/SD/MP3/MP4/DIVX/RMVB 720P
8. Hand free bluetooth and A2DP music, Phonebook, call record and name search
9. Four ways audio output and subwoofer, two way AV input
10. Support reverse camera input with automatic screen switching
11. ESP and Anti-shock Protection
12. iPod iPhone music play( iPhone resume play and charge iPhone)
13. SD/MMC slot, USB port
14. Real time display, Games
15. Steering wheel control
16. Multi-languages menu
17. V9 Disc optional
18. Analogue TV & DVB-T ISDBT optional
|
System |
|
|
Working voltage |
DC 11V-14V |
|
Working current |
MAX 15A |
|
Standby current |
no more than 25 mA |
|
Video system Automatic |
PAL or NTSC |
|
Display Screen |
|
|
Screen Type |
Digital TFT LCD touch screen |
|
Resolution |
800*480 |
|
Radio |
|
|
FM/ AM Frequency |
FM:87.5MHz-108MHz; AM:522KHz-1620KHz |
|
Tune method |
PLL frequency complex tune |
|
Display method |
TFT Graphical User Interface OSD |
|
Storage quantity |
FM radio :18 channels, AM radio: 12 channels |
|
Search method |
Automatic/manual |
|
RDS (TA, AF, PTY) |
Yes |
|
Amplifier |
|
|
Testing voltage |
13.8 V |
|
Maximum power output |
4×45W |
|
Speaker impedance |
8Ω (4-8Ωacceptable) |
|
Audio |
|
|
Track imbalance degree |
≤2dB |
|
Segregative degree |
≥45db |
|
Frequency response |
20Hz-20KHz(±3dB) |
|
Volume adjustment |
Low 100HZ±7dB |
|
|
Medium 1KHZ±7dB High10KHZ±7dB |
|
GPS |
|
|
Processor |
Adopt SAMSUNG High performance processor S3C2443 |
|
Max.main frequency |
533MHZ |
|
EMS Memory |
128MB SDRAM |
|
Storage device |
128MB NAND FLASH,Support SD/MMC Card. |
|
Operation system |
Wince 5.0 |
|
Display output |
RGB output |
|
resolution |
800*480 |
|
Audio output |
Stereo output of CD tone |
|
Human machine interface |
Support infrared remote control and touch screen operation |
|
GPS specification |
Adopt the latest SiRF STAR III 20 channel and excessive high sensitivity GPS receiving module REB-3310 |
|
|
Orientation sensitivity reach -159dBm |
|
|
Orientation presicion 10M |
|
|
Orientation time of cold boot is 42S |
|
|
Orientation time of warm boot is 35S |
|
|
Orientation time of hot boot is 1S |
|
Power specification |
Connect car power DC12V,Current<500mA |
|
consumption |
4.5W(12V/360mA) |
|
Normal power consumption |
3W(12V/250mA) |
|
Working temperature |
-30ºC~ +70ºC |
