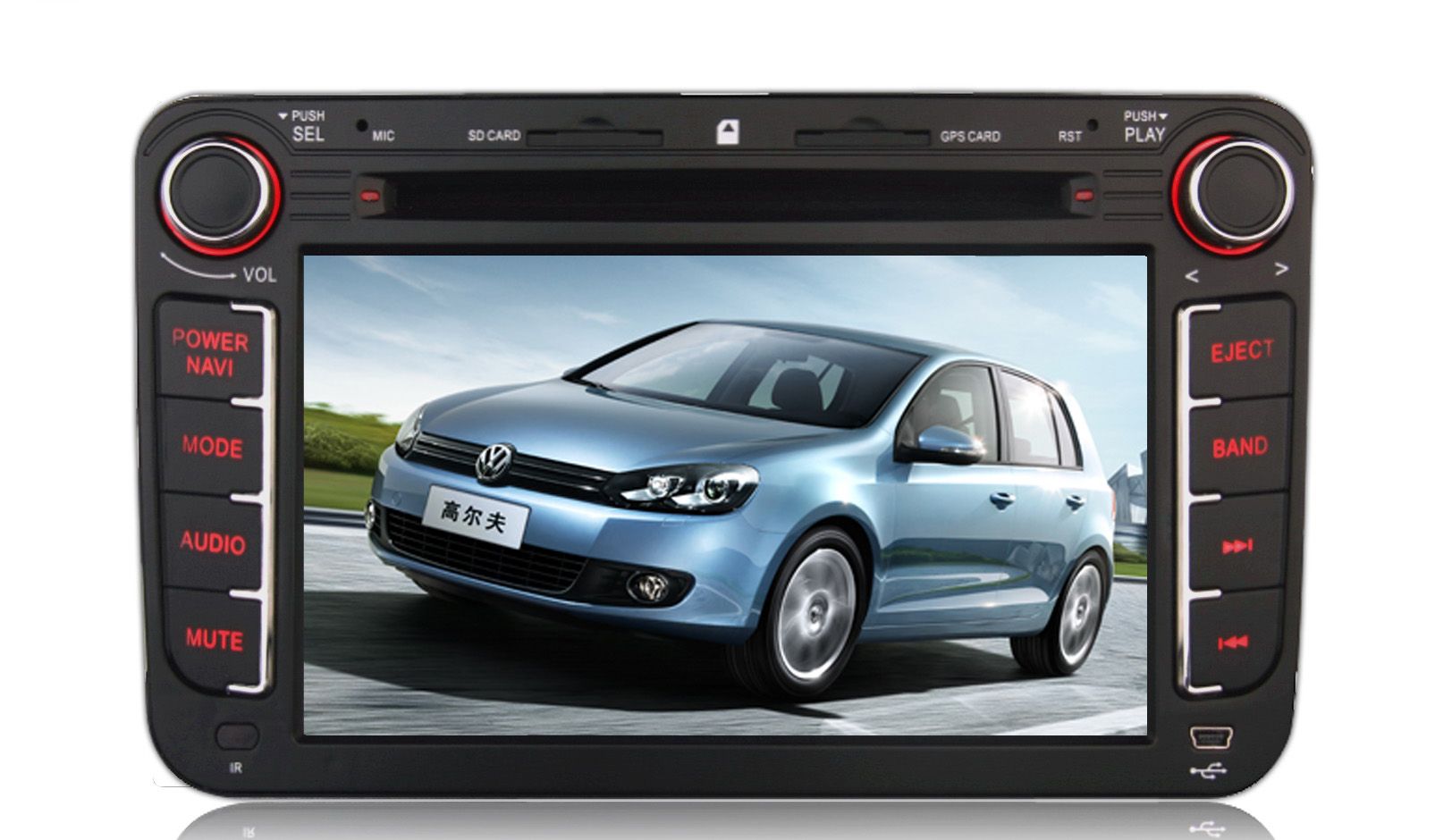

Car DVD GPS for Vw New Golf

Car DVD GPS for Vw New Golf
Price: Negotiable/Piece
Min Order: 10/Piece
Prod Model: TS7166
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE

Product Description

Key features:

1.7 inch 16: 9 800*480 digital high definition TFT LCD touch screen car GPS player

2. Built-in GPS navigation system

3. Build-in Bluetooth for hand free (Coming Tel No. Display function & Call out directly by touch screen)

4. SD card slot, support MP3/MP4/DIVX/WM etc

5. Compatible with MP3/MP4/DVD/VCD/CD/CD-R/DIVX/CD-RW etc

6. With excellent mechanical anti-vibration and electronic shock protection

7. Uniquely designed circuitry including standby function to increase battery durability

8. Adjustable parameters can be memorized automatically, and resume back to the default value

9.3D interface make operation to easy

10. Real time clock function

11. One channel video input, two channel video output; Two channel audio input, three channel audio output

12. Dualzone function (lister radio/CD while using GPS)

13.30 preset radio stations

14. Multi-function OSD menu

15. Small light available on the button of the panel

16. Fluorescent keys available for the remote control

17. Radar detection and rearview mirror both available

18. CDC (multiple disk cartridge) play control function available

19. Original Canbus system for steering wheel control

20. Built-in DVB-T for digital television system (optional)

21. Built-in TV tuner
System parameters
Working voltageDC 11V-14V
Working currentMAX 15A
Standby current25 mA
Video systemautomatic PAL/NTSC
GPS specification
Operation systemWINCE 5.0 CORE
Support mapGarmin, Tomtom, IGO, Route 66 etc
ProcessorSAMSUNG high performance processor S3C2440A-40
EMSmemory64MB SDRAM
Storage device128MB
Display outputCVBS+S-VIDEO output
Audio outputStereo CD Quality
Main frequency400MHz
Support audio typeMP3/PCM/WMA
Support video typeASF/AVI/WMV/DIVX
ChipsetSIRF STAR 3
Frequency1.575GHz
Channel number20channels
Tracking sense degree-159dbm
Position accuracy10m, 2D RMS, WAAS enable
Velocity0.1m/s
Data renewal rate1Hz
Re-catching timeaverage 0.1s
Hot start timeaverage 1s
Warm start timeaverage 38s
Cold start timeaverage 42s
The biggest fixed height18000m
The biggest velocity515m/s
Power specificationDV 12V, current<500mA
Consumption4.5W(12V/360mA), normal 3W(12V/250mA)
DVD parameters
Video output range1+10.2Vp-p(75Ω)
Disc specdiameter 12cm disc
Compatible discDVD/VCD/CD/MP3/WMA/JPEG/MPEG4
Amplifier parameters
Testing voltage13.8V
Maximum power output4×45W
Speaker impedance8Ω (4-8Ω acceptable)
Audio parameters
Track imbalance degree≤2dB
Segregation degree≥45dB
Frequency response20Hz-20KHz (±3dB)
Volume adjustmentLow 100Hz±7dB
Medium 1KHz±7dB
High 10KHz±7dB
Radio parameters
FM/AM frequencyFM: 87.5MHz-108MHZ
AM: 522KHz-1620KHz
Tune methodPLL frequency complex tune
Display methodTFT Graphical User Interface OSD
Storage quantityFM radio: 18channels
AM radio: 12channels
Search methodautomatic/manual
