Prod Model: |
AST-9203 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
9 Inches |
Function: |
Car Radio Receiver |
System: |
Wince CE6.0 |
Built In: |
Radio |
Type: |
Car Radio |
Audio Output: |
L/R Channel |
Certification: |
FCC |
Voltage: |
12/24V |
Placement: |
Dashboard |

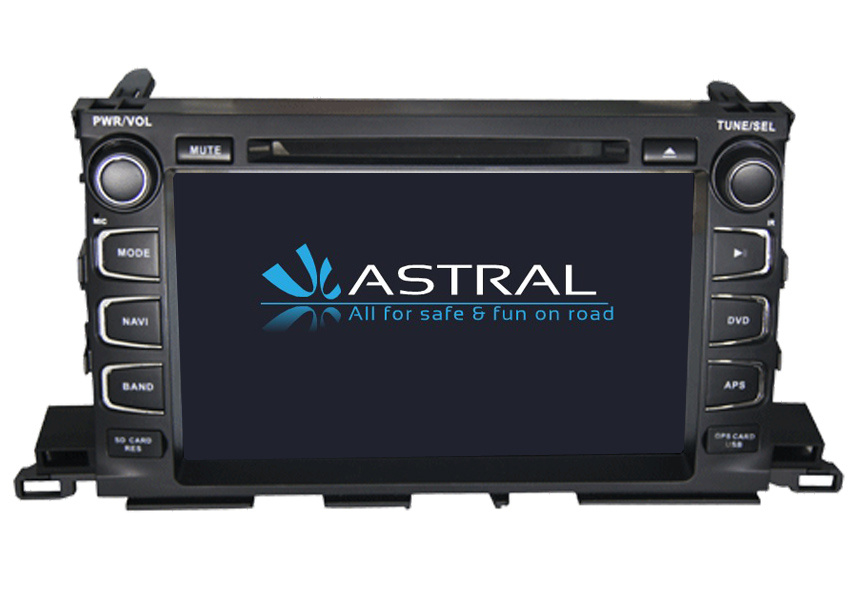

Product Description
Multi-function Entertainment:
- Original OE Design, Plug and Play
- Built-in GPS, Intelligent Voice Guide, Route Plan, Advanced POI
- Support DVD/VCD/CD/MP3/MP4/CD-R/WMA/JPG/MPEG
- Bluetooth with A2DP, Hands Free
- Digital TV: DVB-T/ISDB-T/ATSC (Optional)
- Analog TV (Optional)
- MP3/MP4 Player
- USB Display/SD Display
- 45Wx4 power amplification and 4.1 channel pre-out
- Backlight Dimmer
Software Highlights:
- Windows CE 6.0
- Dual Entertainment
- GUI Customization, Skin Change
- Languages Customized: More than 17 languages optional
- Start Up Imagine, easy to customized
- Bidirectional Copy Files between: USB Flash/SD and Built-in Storage
- Friendly Navigator Path Setting, easy to change
Hardware Advantage:
- SiRF Prima 600MHz CPU, Powerful ARM 11 architecture, 300MHz DSP, faster speed, higher performance
- Internet, G3 & G2 (By WCDMA, CDMA2000, EDGE, GPRS, etc. ) (Optional)
- Mobile Hard Drive: Support (exFAT, 2TB)
- Play and charge: iPhone 3G, iPod (Classic, Nano, Shuffle), iTouch
- Video: RMVB/RM, AVI, MPEG2/MPEG4/H. 264/WMV; D1 resolution, (NTSC: 720*480/PAL: 720*576)
- Support 3D Hardware Acceleration: HD 3D Graphics for real 3D map
- High-Speed USB 2.0: 480Mbps
- 2USB Port, Charge to mobile phone
- Storage: 4GB SD/Micro (standard), support SD & USB up to 64GB
- Built-in Memory: 256MB Nand Flash (standard)
- DDR RAM: 128MB DDR-400MHz (two times than its competitor)
Main Application:
- With innovative Technology, Latest Platform, WinCE 6.0 core operation system and 600MHz CPU, Friendly User Interface bring you faster and more convenient operation.
- Support 2D/3D hardware acceleration;
Latest original map software, Intelligent voice guide, Automatic route plan, Advanced point-of-interest management.
- An amazing way to surf the Internet by 3G, extend entertainment further in your car.
Support FM/AM radio, RDS information display is available;
Support U. S., Asia and Europe radio standard.
- Support iPod (Classic, Nano & Shuffle) connection, work with iPhone 3G, iTouch and charge them.
Touch control, more convenient and safer to operate while driving.
- Transfer songs, photos, videos among SD card, built-in Nand Flash & USB Flash. Support max storage of 64GB (SD Card & USB Flash);
Support real USB 2.0 High-Speed, 480Mbps, 40 times faster than USB1.1 standard (12Mbps).
- Vehicle standard DVD loader, wide digital screen, high definition display & stereo sound around.
- Digital TV: (Optional)
Any time and everywhere, to discover amazing football live & other enjoyment by digital TV. (DVB-T/ISDB-T/ATSC)
- MP3 and MP4 can be played via local, SD card and USB disc directly;
Support iPod driver connection.
- Built-in Bluetooth with A2DP, Hands Free, support caller ID display, Transfer Phonebook, Caller records, Call history.
- Rearview camera: (Optional)
A rearview camera dramatically eliminates blind spots, making it safer and easier to park and reverse your vehicle.
Disc support | SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/JPEG/WMA/MP3/MP4/DIVX |
Power voltage | DC 9V-16V |
Storage | 128M |
Overload | 4Ω |
Max power output | 45W x 4 |
Tone control | 7db |
Bass 20Hz |
Treble 20KHz |
Output port | Audio: 4 independent output channels |
Video: 1 Composite video output channels |
Input port | Audio: 2 independent input channels |
Video: 3 composite video input channels |
|
Video Features | Video output level: 1.0 VP-P(75Ω overload) |
Video frequency: 20Hz-20KHz(+1 dB) |
Temperature | -10ºC+70ºC |
Humidity | 15-75% (no water frozen) |
VCD/CD PART |
Video system | Auto/NTSC/PAL |
S/N(signal to noise ratio) | 60dB( 1KHz 0dB) |
Resolution | 55dB |
Frequency response | 20Hz-20KHz |
Dynamic range | 80dB |
Distortion | 0.4% |
DVD PART |
Video system | Auto/NTSC/PAL |
S/N(signal to noise ratio) | 75dB( 1KHz 0dB) |
Resolution | 60dB |
Frequency response | 20Hz-20KHz |
Dynamic range | 80dB |
Distortion | 0.4% |
FM PART |
Frequency range | 87.5-108.0MHz |
Practical sensitivity | 22dB |
Down sensitivity | 9dB |
S/N(signal to noise ratio) | 60dB (1KHz 0dB) |
Resolution | 32dB |
Frequency response | 40Hz -13KHz |
Medium frequency | 10.7MHz |
AM PART |
Frequency range | 522-1620KHz |
Down sensitivity | 35dB |
Practical sensitivity | 28dB |
S/N(signal to noise ratio) | 45dB (1KHz 0dB) |
Medium frequency | 450MHz |
Frequency response | 40Hz-2.3KHz |
