| Prod Model: |

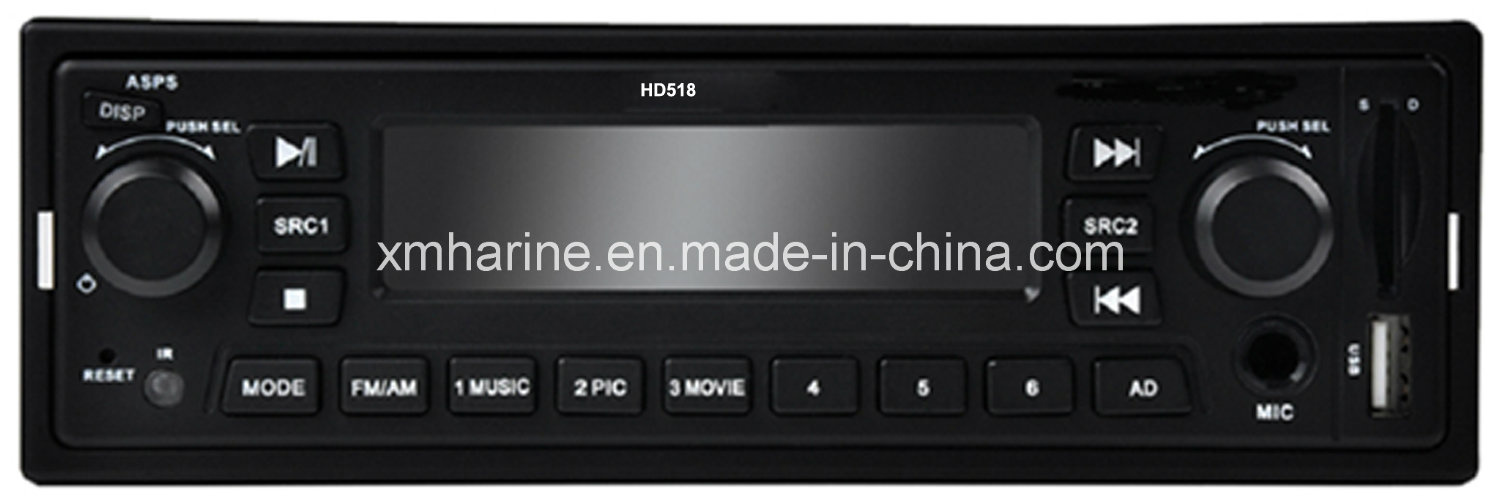

HD518 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Harine |
| Wide Rang Of Power Supply: |
DC 14-32V |
| Support Audio Formats: |
Mpegs,Wm,a,Wav etc |
| Net Weight: |
1.5kg |
| Distortion: |
<2% |
| Maximum Active Power: |
45W×4 |
| Frequency Response: |
40Hz-12000Hz( Standard) |
| Product Dimension: |
188mm×58.5mm×161.4mm |
| Channel Separation: |
26 dB |
| Power Consumption: |
Less Than 10W |
| Type: |
Car MP3 |
| Voltage: |
12/24V |
Product Description
Specifications
Feature:

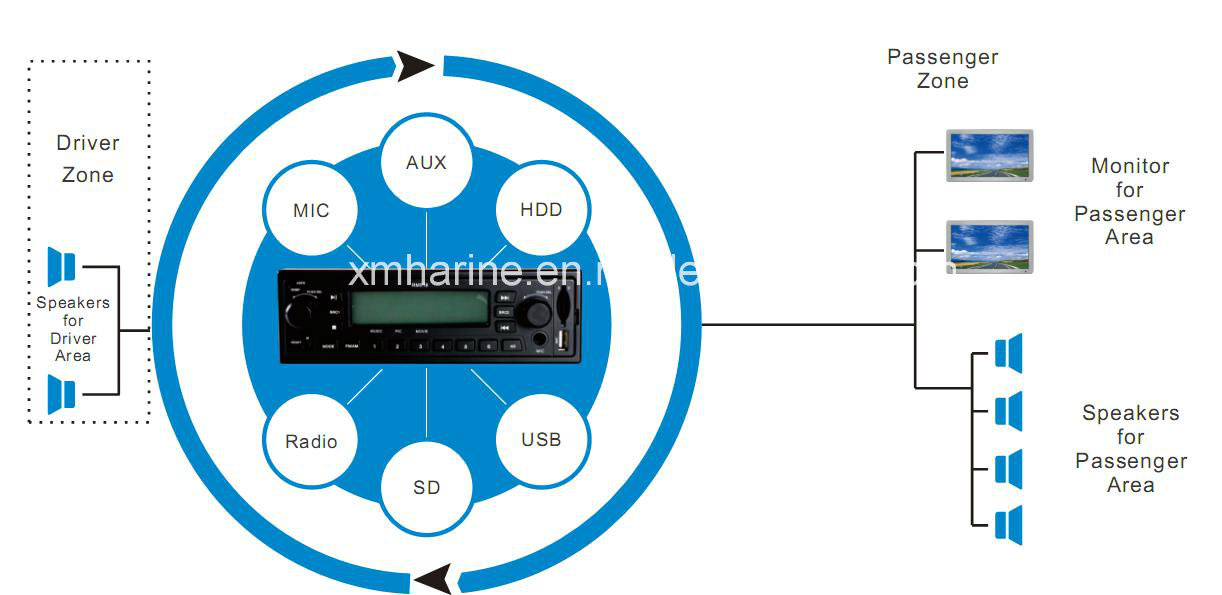

1)Personalized design: driver area and passenger area can operate separately
2)Support advertising spots
Description:
| USB/SD CARD/MP3 select-play |
| Mix-input AUX IN |
| Save up to 30 channels (FM:18;AM:12 ) |
| Preset scan/auto save ,auto save 6 effective channels |
Wide range of power supply |
FM:
1)Frequency Coverage: 87.5-108KHz
2)Usable Sensitivity:≤16dB
3)S/N Ratio:≥50dB
4)Stereo Separation:≥40dB
5)Distortion:≤5%
6)Intermediate Frequency : 10.7MHz
AM
1)Frequency Coverage : 522-1620KHz
2)Usable Sensitivity : ≤35dB
3)S/N Ratio:≥45dB
4)Stereo Separation :≥35dB
5)Distortion :≤5%
6)Intermediate Frequency:450KHz
Specification:
Tape Speed : DC12V(10-16V) or DC24V (20-26V)
Frequency Response: 40HZ-12000HZ( standard)
Distortion:<2%
Maximum Active Power : 45W×4
Wow and Flutter:4~8Ω
Net Weight:1.5Kg
Channel Separation :26 dB
Product Dimension: 188mm×58.5mm×161.4mm
Storage Temperature : -20~70°c
Power Consumption:Less than 10W
