| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

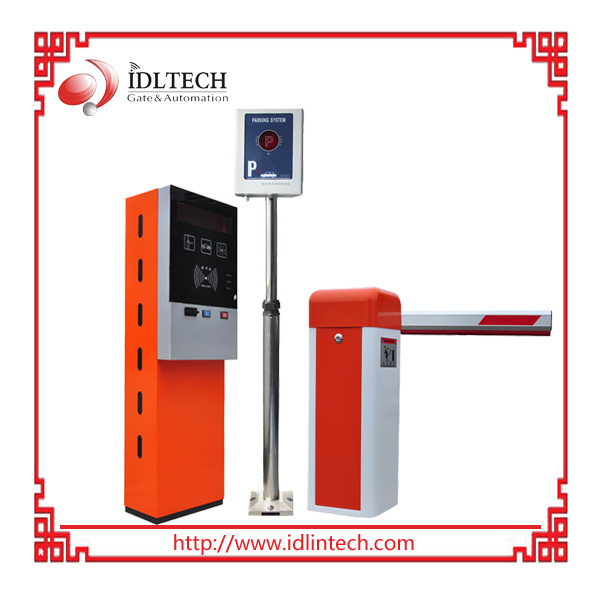

Car Access Control System |
| ODM/OEM: |
Yes,Accept |
| Warranty: |
at Least 1 Year |
| Shippment: |
by Air DHL,UPS,FedEx,TNT,by Sea,etc. |
| Material: |
Aluminium |
| Degree Of Distortion: |
Semi-Rigid Barrier |
Product Description
ARM chip, TCP/IP network and real-time embedded OS, IDEAL's PMS lead the parking system into a new IP digital age.
Main Features
1) Full TCP/IP communication network: Including WEB Server, PC charging terminal and System Controller three parts, classical CS framework (integrated by TCP/IP network) is used in system. Everyone control terminal or server can be visited & controlled by a PC in LAN (Local Area Network).
2) 16 respective park can be managed: The system supports 16 respective parks/zones. Access authorization, charge rate, statistical data of every zone can be set independently
3) 253 access control terminal supported: System supports 253 Entry/Exit controller/charging terminal and everyone terminal can be modified or added arbitrarily. DIP switch set Entry/Exit and terminal IP address can be set at random (but must make sure in same network segment).
4) Flexible & various charging mode.
5) Real-time & unambiguous two-way intercom: Support real-time & unambiguous two-way intercom between access controller and charging terminal.
6) Voice Prompt: With onboard digital audio, cooperate with LED display on ticket house to play tooltip synchronously. There is no influence for voice broadcast if the connect is cut off between access controller and charging terminal.
7) Field Upgrading: If more functions or voice modification is needed, the system can be upgraded on site or by online using our software updater.
8) Various Operating Mode.
9) On-line or Off-line Auto-Switch: After configuration, off-line work is supported; After reconnection, online data will be uploaded automatically. When sever is offline, charging terminal and Entry/Exit controller can be normal operation.
10) Support Various RFID Card
11) With Standalone Interface For Card Dispenser/Collector: With 2 standard RS-232 and 2 Weigand interface, either 13.56MHz Mifare 1 S50/S70 card or 125KHz EM4001 (ID card) or 900MHz long range ID card, or 2.4GHz Bluetooth Card are all supported.
12) Impeccable Barrier Gate Interface: With barrier gate control interface and gate state feedback interface, all gate can be controlled intensively on sever.
13) Various Card And Vehicle Type
14) Rebate Management: VIP coupon, shopping receipt discount and so on various discount mode are supported.
| Working Voltage | DC12V |
| Working Temperature | -30 to 70 degree |
| Output Relay | 4 |
| I/O Interface | 4/4 |
| RS232/RS485 | 2/1 |
| Simulate ADC/DAC | 2/0 |
| Wiegand 26 Interface | 2 |
| Network Communication | TCP/IP |
| Memorable Card Information | 20,000 |
