| Prod Model: |
JTS-002-101 |
| Customized: |
Customized |
| Screen Size: |
10.1 |
| Resistive Touch Screen Type: |
Capacitive |
Product Description
| 1.Environment Conditions |
|
| Item | Value |
| Operating Temperature & Humidity | -30°C - +70°C,< 90 %RH |
| Storage Temperature & Humidity | -40°C - +80°C,< 90 %RH |
| ESD protection | air +/-12KV, touching +/-8KV |
| Falling ball(1.1mm tempered glass) | 130g(ball),30cm |
| Static pressure(1.1mm tempered glass) | 25KG |
| Surface hardness | >7H |
| Transmittance | >85% |
| Using durability (Pen Sliding test) | 100 Million times |
|
|
|
|
| 2. Electrical characteristics: |
|
| Item | Value |
| Supply voltage | 2.8V~5V |
| Current consumption | Active Mode |
| Normal Mode |
| Sleep Mode |
| Power Supply Ripple | 100mv P-P max |
| Supports a maximum resolution | 2560X1408 |
| Interface | I2C,USB |
| response time | 20ms |
| Power Supply rise time | 8ms Max |
| Linearity | < 1.5% |
|
|
| 3.Touch function: |
|
| Item | Value |
| Drag, circle, slide, soft keys | OK |
| Multi-touch | Support up to 10 fingers |
| Gesture recognition | Enlarge, reduce, Rotate |
| keys analyzed additionally | Sliders, wheels, fierce action, long press |

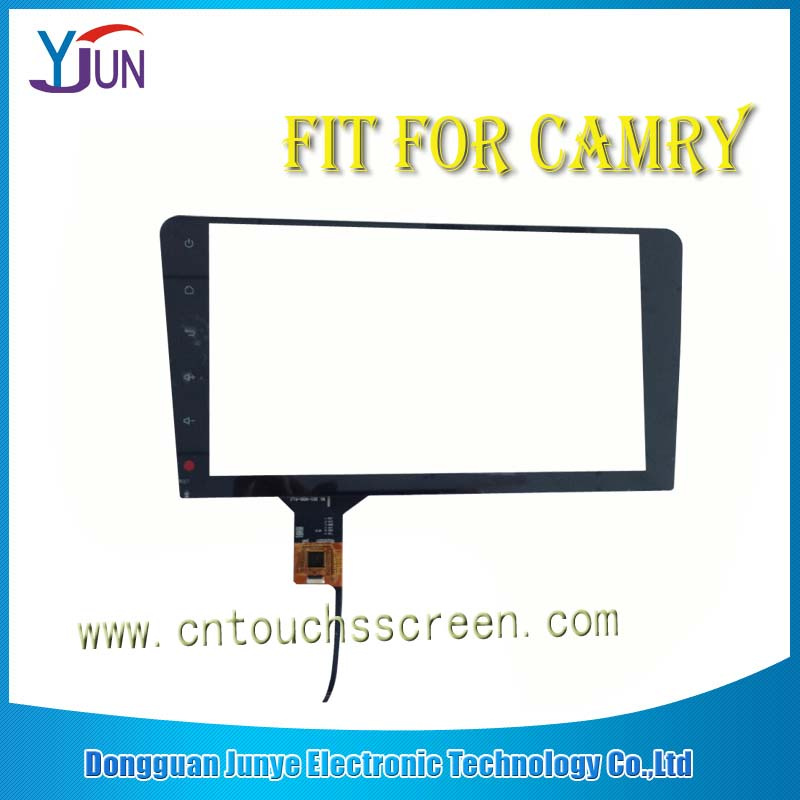

Suitable for Classic Camry Navigation touch screen
· POS terminals
· Financial - ATM & Bill Pay Kiosks
· Factory Automation
· Industrial Control
· Medical Equipment
· Retail Kiosks
· Mobile & Pad
· Auto Industry
Junye Electronic technology Co., Ltd is located in Tangxia Town, Dongguan city, which is economic hinterland of the southeast with traffic convenient.
Our company is an enterprise specializes in researching,
Developing and producing the capacitive touch screen and Our team has
Nearly 10 years experience, and focused on serving touch display application of the global business, car navigation and industrial field.
We started the Resistive touch screen in the 2005. To meet the new needs, we established the R&D and manufacturing team of capacitive touch screen since 2009 and expanded the factory area of 12000 m2, with more than 500 employees, monthly production capacity over 1.5 million pieces. Our products are widely used in handheld
Device, medical, industrial control, Smart wearable devices, POS, automotive navigation and smart home etc...
We depend on super technology and good faith to gain widespread market recognition and reputation from
Overseas &domestic clients. We keep further cooperation with many first-class raw materials factory, Our company has passed ISO9001: 2008 quality management system certification and ISO / TS16949 certification and are
Capable of quickly offering solutions for customer's need, supplying 3.0inch_45.1 inch touch display products with
High-quality, high cost performance and good service
