Product Description

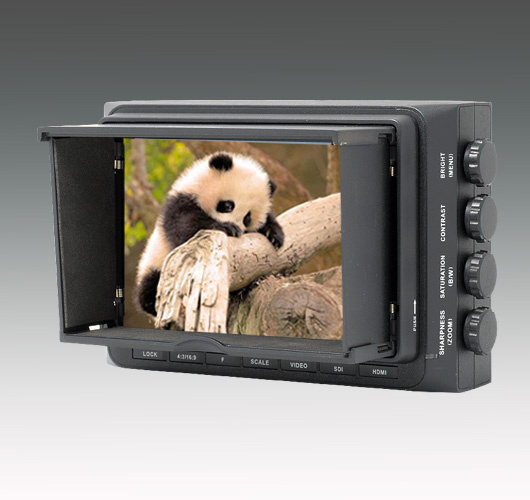

@4.8inch HDMI LCD monitor for DSLR;
@Smart sun cover, convertible and removable;
@Variety of user-replaceable battery plate;
@Three way power supply with 12V DC IN: AC-DC adapter / Battery / Power adapter cable from camera directly.
Advanced features:
Embedded audio(HDMI), Aspect ratio, Pxiel-to-Pixel, Over scan, Under scan, Safe Markers, Color Temperature settings, User presets, and more.
Standard Accessories:
Smart Sun cover, Camera mount adapter, AC-DC adapter, HDMI cable.
HDMI Lock adapter (Optional), Battery plate (optional).
Specification
Screen size 4.8"
Resolution 800(H)× 480(V)
DOT pitch 0.130(H)× 0.130(V)mm
Display ratio 16: 9 / 4: 3/AUTO/LETTER BOX
Brightness 500CD/m²
Contrast 800: 1
Response time 10 ms
Viewing angle Left 80° / right 80° / up 80° / down 80°
Input voltage DC 12V
Power consumption ≤ 9W
Monitor size L 147.3× H 100.8× D 48.4 mm
Weight 0.5 kg
Inputs & Functions
Model /Functions TL-480HDA Remark
Composite in BNC× 1line
SD-SDI in BNC× 1line
HD-SDI in BNC× 1line
HDMI in 1 line
SDI embedded audio PPM / UV
Composite out BNC× 1line
HDMI out 1 1line
SD-SDI out BNC× 1line
HD-SDI out BNC× 1line
Loop from HDMI to SDI Built-in converter
