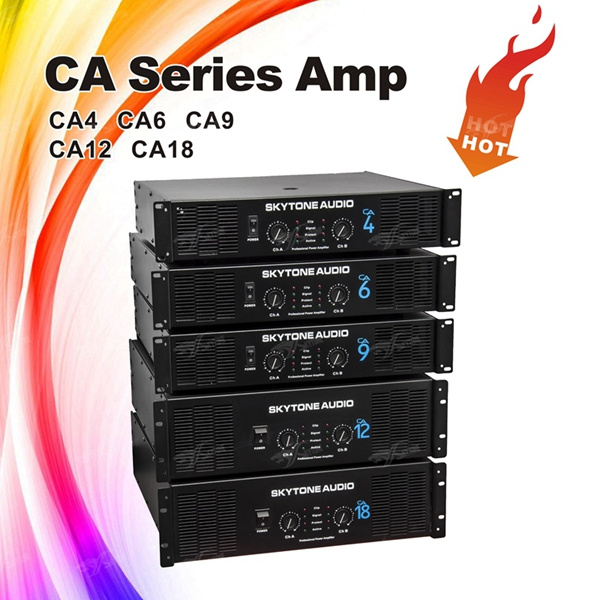

Ca18 1300watts Speaker Amplifier Professional Power Amplifier

Prod Model:	CA18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Ca18
System Type:	2 Channels
Power Rating:	1300W X2 at 8 Ohms
Frequency Response:	20Hz-20kHz± 3db
Safe Protection1:	DC Protection
Safe Protection2:	Short Circuit Protection
Safe Protection3:	Overheat Protection
Safe Protection4:	Input Overload Protection
Safe Protection5:	Output Overload Protection
Type:	Professional Amplifier
Usage:	Professional Performance
Used For:	Professional
Tube Type:	Tube Amplifier
Function:	Post Amplifier
Sound Channel:	2.1
Output Number:	8
Voltage:	AC 220V
Element Number:	Push-Pull Amplifier
Conductive Mode:	AB

Product Description

CA18 1300watts speaker amplifier Professional Power Amplifier

----2 channels professional audio amplifier
----pro audio amplifier
----speaker amplifier system

PRODUCT DESCRIPTION:
--This CA Series Power Amplifier is H Class circuit.
--It is a circuit between the digital amplifier and traditional amplifier.
--And it's designed according to the professional HI-FI(high fidelity) standard.
--There're two groups of high-power tube installed on both sides, in order to enhance the cooling efficiency.
--The amp is elaborated by the imported Japanese original Toshiba tube and Japanese original ELNA capacitor, which is also used by the US GM company, for expanding flow output.
--H class circuit is a kind of fast recovery circuit which is equipped with high efficiency intelligent cold system, DC protection, short circuit protection, overheating and overload protection,ect. It can working at 2 Ohms stably for a long time.
--The amp also makes the sound of speakers to be wide field, structured, thin, clear,uninhibited, glossy, good texture, perfect fitting the high-end speakers.

Any question about Crest style CA Series Professional Power Amplifiers(CA18), welcome for details, we're glad to help you.

Specifications:


Technical Specification		CA4	CA6	CA9	CA12	CA18
PMPO peak power	4 ohmsBridge	2100	2950	3200	3800	4600
	8 ohmsBridge	1600	2300	2600	3450	4100
	2 ohms Stereo	1200	1550	1850	2100	2850
	4 ohms Stereo	900	1250	1400	1750	1950
	8 ohms Stereo	600	800	1000	1200	1400
20Hz-20KHz, ≤ 0.1%THD rated power	4 ohms Bridge	1750	2500	2750	3000	4100
	8 ohms Bridge	1350	2100	2350	2600	3750
	2 ohms Stereo	980	1250	1600	1800	2400
	4 ohms Stereo	750	900	1250	1400	1850
	8 ohms Stereo	400	600	800	1000	1300
safe protection	Dc protection	√
	Short circuit protection	√
	Sensitivity overheating management system	√
	Overheat protection	√
	Input overload protection	√
	Output overload protection	√
	Soft start protection	√
	Limiting protection	can reach 10V
Frequency Response		20Hz-20KHz± 3dB
Sensitivity		0.775v	0.775v	0.775v	0.775v	0.775v
Link	Input	XLR 1/4Jack	XLR 1/4Jack	XLR 1/4Jack	XLR 1/4Jack	XLR 1/4Jack
	Output	SPEAKON	SPEAKON	SPEAKON	SPEAKON	SPEAKON
Filter electrolysis capacity		40000uf	40000uf	60000uf	60000uf	60000uf
Input impedance	Balance input	20Kohms
	Unbalanced input	10Kohms
String sound attenuation20Hz-20KHz, 8ohms		≥ 65dB
8ohmsS/N		≥ 108dB
Damping coefficient1KHz& 8ohms		≥ 900				≥ 800
Intermodulation distortion20Hz-20KHz		≤ 0.02%
Total harmonic distortion20Hz-20KHz		≤ 0.05%
Phase response1W& 8ohms, 20Hz-20KHz		≤ ± 8°
Conversion rate		≥ 60V/µ s
Output circuit type		H				H-II
Power consumption 4ohms, 1/8RMS/230V		250	450	550	650	800
Installation space		2U
Cooling system		intelligent system, automatic adjustment according to changing temperature
Size(W× H× D)		630× 590× 210mm
Net Weight		20.25kg	27kg	28kg	37kg	38kg
Technical support and after-sales service		1 years Warranty non-artificial damage
