| Prod Model: |
C3110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
170mm Magnet with Aluminum Frame |
| Hf Component: |
120mm Magnet |
| 120mm Magnet: |
10", 12", 15" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Compact design;
b. Imported multilayer birch plywood;
c. High-quality durable polyester paint with half matting varnish;
d. Deep and strong bass, a mellow and full alto, and a clear delicate treble.
1. Description:

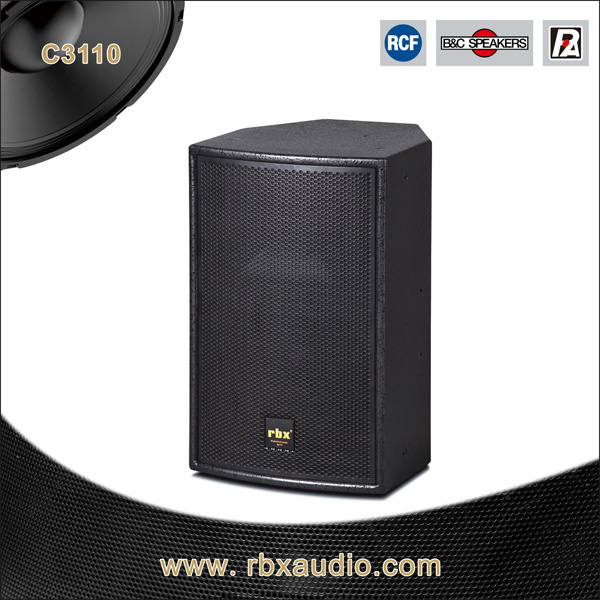

C3110 is a two-way full range loudspeaker designed specifically for high-end KTV clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. And, the high-quality durable polyester coatings and the half matting varnish lead to a high-end and elegant appearance.
C3110 is equipped with a 10" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a deep and strong bass, a mellow and full alto, and a clear and delicate treble.
2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar and etc. It can be used with Sub-woof loudspeaker system from our RF series. Or, you can use it as auxiliary speaker to combine with our C series.
3. Technical data:| Model | C3110 10" two-way full range audio mixer |
| Drivers | LF: 1×10"voice-coil: 2.5" |
| HF: 1×1"voice-coil: 1.7" |
| Frequency(±3dB) | 50HZ-20KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 97dB |
| Maximum SPL | 122dB Continuous/128dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 250W/Peak: 1000W |
| Recommend AMP | 350W to 600W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 505 × 320 × 345mm (H × W × D) |
| Master carton | 565 × 380 × 405 (H × W × D) |
| Net Weight | 17Kg |
| Gross Weight | 19.5Kg |

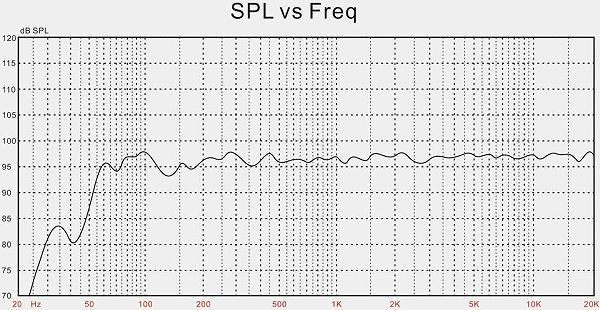

4. Frequency response:
5. Construction:| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.

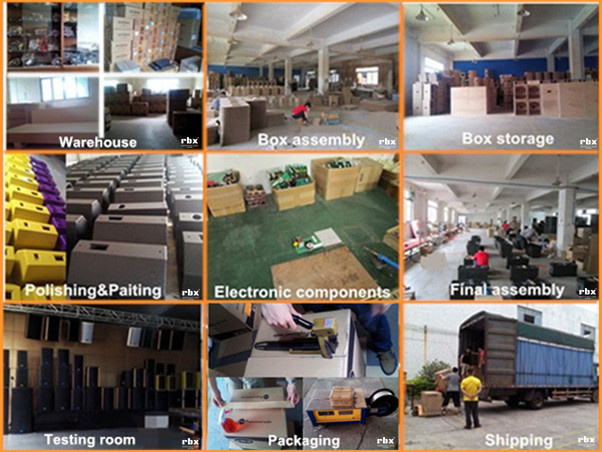

e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.7. Company View:
8. Our Projects:
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.
During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.
Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
