| Prod Model: |
HW-CB-USB031-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Durability: |
10,000 Cycles |
| Power Delivery Capacity: |
3A for Std Passive Cables / 5A Connectors |
| Maximum Data Transfer Rate: |
10gbit/S |
| Receptacle Opening: |
8.3mm*2.5mm |
| Type: |
C to C |
| Insulation Resistance: |
5 Ohm(Max) |
| Contact Resistance: |
2m Ohm(Min) |
| Od: |
5.0mm |
| Connector: |
USB 3.1 C Male Pin Gold Plated,Shell Nickel Plated |
| Application: |
Tablet |
| Shape: |
Round |
| Printer Cable Type: |
USB |
| Interface Type: |
USB 3.1 |
| Pin: |
24pin |
| Computer Cable Type: |
Charger/Sync Cable |
| Color: |
White or Black |
Product Description

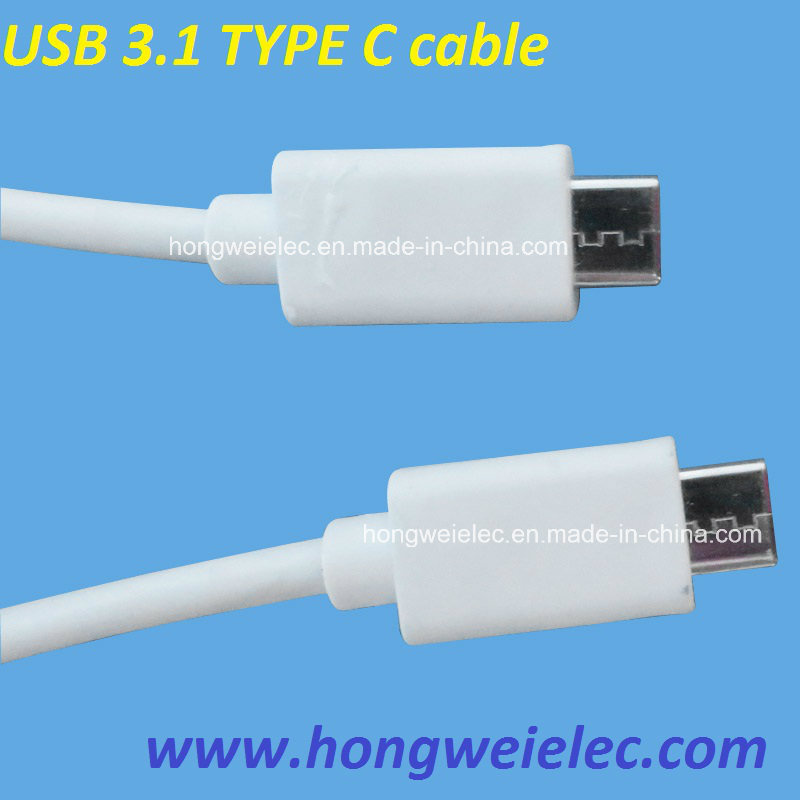

C Type-C Type USB3.1 USB Cable
We are manufacturer of cables an connectors.Product range included USB 3.1/3.0/2.0/micro cables and connector,sata Cable and connector, HDMI cables/conectors,phone jack, DC jack series etc.
The USB Type-C Cable and Connector for Nokia N1 tablet Specification is guided by the following principles:
Product features:
1.Type-C interface socket end size and Micro USB specifications like the original small, is about 8.3mm*2.5mm;
2.Can withstand 10000 times repeated plug;
3.Both sides can be inserted into the support the "positive and negativeinserted" function
4.Slim design;
5.The maximum data transfer rate up to 10GBit/s, USB3.1 standard;
6.Standard equipped with a Type-C
7.connector connecting line via the 3A current, also support beyond the existing USB power supply capacity of the"USB PD", can provide a maximum of 100 W electric power.
Product advantage:
1.A single powerful interface can also support data, audio and video, power.
2.(10G/S) / power (3~5A) / power (~100W) index improved significantly
3.Can realize reversible plug and exchange interface;
4.Robust EMI performance;
5.Downward compatible with USB2.0\3.0\USB PD, although the interface is different but by switching to achieve.
6.The miniaturization of support (only large slightly more than Micro USB) high speed bidirectional data transmission, two channels at the same time can support 20Gs
Receptacle Opening | 8.3mm*2.5mm |
| Durability | 10,000 Cycles |
| Power Delivery Capacity | 3A for Std Passive Cables / 5A Connectors |
| Maximum Data Transfer Rate | 10gbit/S |
| Insulation resistance | 5 ohm(MAX) |
| Contact resistance | 2M ohm(MIN) |
| More convenient | Can realize reversible plug and exchange interface |
