| Prod Model: |
C-3110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
170mm Magnet with Aluminum Frame |
| Hf Component: |
120mm Magnet |
| 120mm Magnet: |
10", 12", 15" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Compact design;
b. Imported multilayer birch plywood;
c. High-quality durable polyester paint with half matting varnish;
d. Deep and strong bass, a mellow and full alto, and a clear delicate treble.
1. Description:

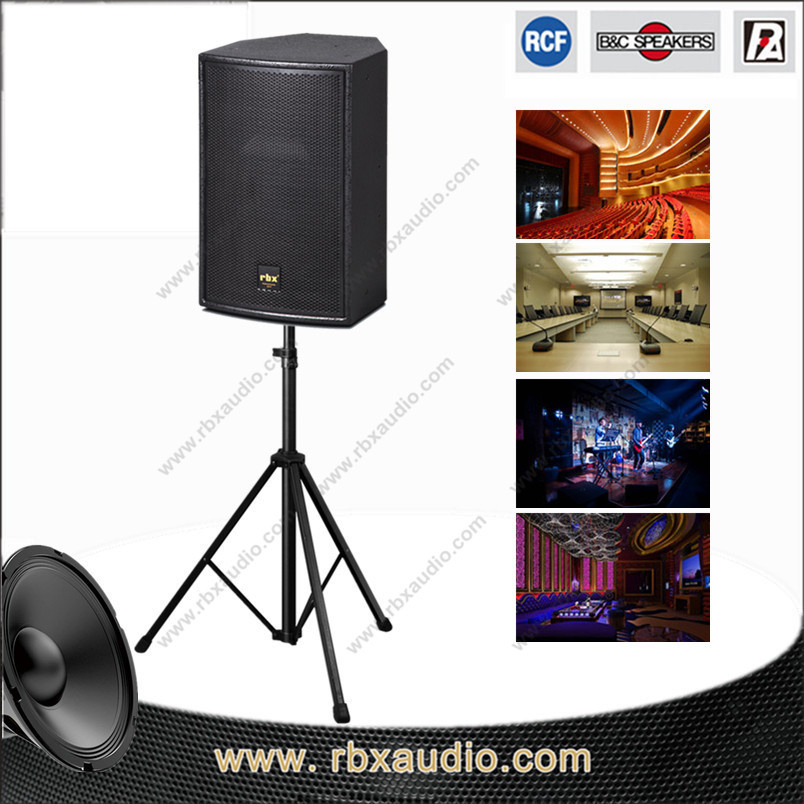

C3110 is a two-way full range loudspeaker designed specifically for high-end KTV clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. And, the high-quality durable polyester coatings and the half matting varnish lead to a high-end and elegant appearance.
C3110 is equipped with a 10" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a deep and strong bass, a mellow and full alto, and a clear and delicate treble.
2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar and etc. It can be used with Sub-woof loudspeaker system from our RF series. Or, you can use it as auxiliary speaker to combine with our C series.
3. Technical data:
| Model | C-3110 Passive 8 ohm 250W db audio subwoofer |
| Drivers | LF: 1×10"voice-coil: 2.5" |
| HF: 1×1"voice-coil: 1.7" |
| Frequency(±3dB) | 50HZ-20KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 97dB |
| Maximum SPL | 122dB Continuous/128dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 250W/Peak: 1000W |
| Recommend AMP | 350W to 600W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 505 × 320 × 345mm (H × W × D) |
| Master carton | 565 × 380 × 405 (H × W × D) |
| Net Weight | 17Kg |
| Gross Weight | 19.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
