| Prod Model: |
BYC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Automatic |
| Structure: |
Mobile |
| Usage: |
Degas, Dewater and Remove Impurities in Oil |
| Mechanical Principle: |
Vacuum+Patent |
| Type: |
Vacuum Distillation |
| Capacity: |
50-300 Liter/Min |
| Working Principle: |
High Vacuum+Polymer Filter |
| Function: |
Dewater, Degas, Remove Particles in Oil |
| Purpose: |
Restore Transformer Oil Property |
| Machine Color: |
Blue, Grey, Green or at User's Option |
| Application: |
Super Hv Transformer Oil and Insulation |
Product Description

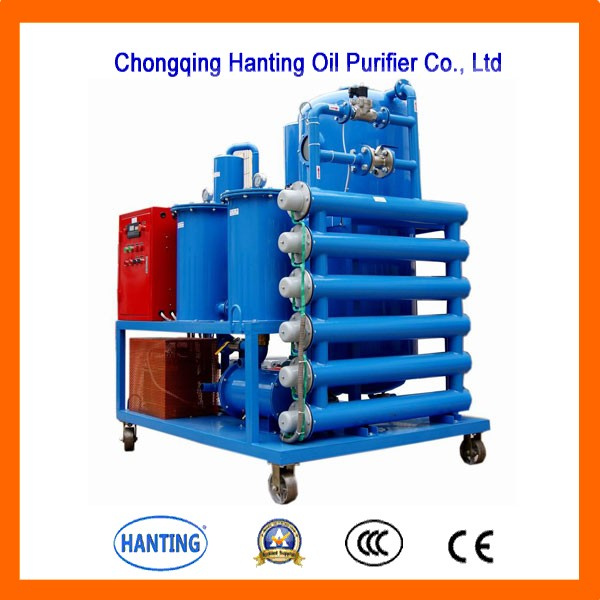

BYC Two-Stage Multi-function Vacuum Oil Purifier Technical Features:
Applied to contaminated super High Voltage transformer oil and insulation oil
1. One-time breakdown voltage could enhance voltage to 45KV and three-time filtration could enhance voltage to 75 kv or above.
2. Unique water and gas removing materials, offer 700 times the evaporation area size of common ones.
3. Latest decolorant is selected which ensures dark colored oil to resume the color of new oil.
4. Super fine filtration, reaching above NAS4.
5. Advanced PLC microcomputer auto control.
6. Oxidant filling device is equipped, extending the oil lifetime 15 times longer.
7. Flexible and easy dismantlement.
Capacity: 50-300 Liter/Min
Working Principle: High Vacuum+Polymer Filter
Function: Dewater, Degas, Remove Particles in Oil
Purpose: Restore Transformer Oil Property
Application: Super Hv Transformer Oil and Insulation
Machine Color: Blue, Grey, Green or at User's Option
Brand: Hanting
Environmental: Friendly
Material: Carbon Steel or Stainless Steel
Running Cost: Low Cost
| Items | Unit | BYC-50 | BYC-100 | BYC-150 | BYC-200 | BYC-250 | BYC-300 |
| Flow rate | L/min | 50 | 100 | 150 | 200 | 250 | 300 |
| VacuumRange | Mpa | -0.093~-0.0999 vacuum limit ≤10Pa |
| Working Pressure | Mpa | ≤0.4 |
| TemperatureRange | | 20 to 80 |
| Power Supply | | 380V 50HZ (or at user's option ) |
| Noise | dB(A) | ≤65 to 80 |
| Fault-Free Working Hours | h | ≥4000 |
| Continuous Running Hours | h | ≥150 |
| Heating Power | Kw | 30 | 90 | 120 | 150 | 180 | 210 |
| Total Power | Kw | 37.5 | 100 | 132 | 165 | 196 | 230 |
| Inlet(Outlet) Diameter | mm | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 | Φ60 |
| Total weight of equipment | kg | 650 | 1050 | 1350 | 1450 | 1700 | 2050 |
| Dimension | L | mm | 1600 | 1950 | 2200 | 2250 | 2400 | 2450 |
| W | mm | 950 | 1250 | 1300 | 1400 | 1450 | 1450 |
| H | mm | 1850 | 1900 | 2100 | 2100 | 2100 | 2200 |
| Indexes After filtration | Breakdown voltage | KV | ≥80 |
| Water content | ppm | ≤3 |
| water-soluble acid | PH | ≥5.4 |
| Medium consumption | Tgδ (90 degree) | ≤0.002 |
| Acid value | mgKOH/g | ≤0.03 |
| Gas content | % | ≤0.1 |
| Particles | μ | ≤3 |
