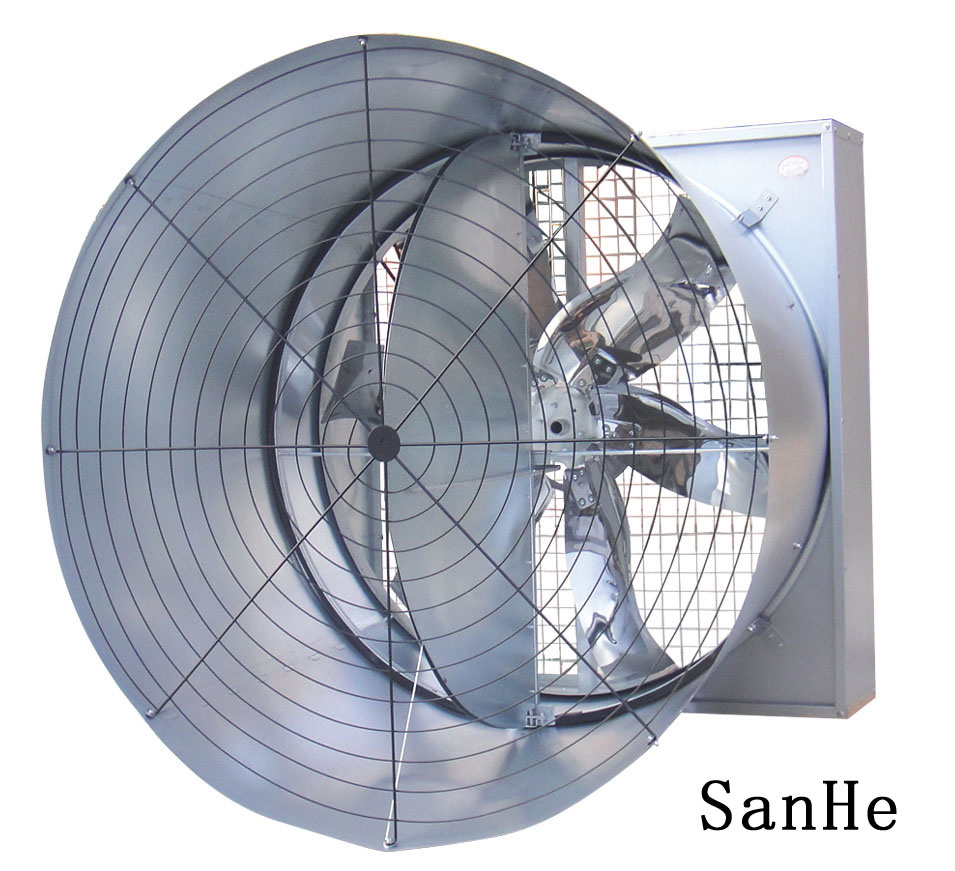

Butterfly Cone Fan
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DJF(e)-1380 |
| Markets: |
Southeast Asia,Western Europe |
| Type: |
Ventilation Fan |
| Material: |
Metal |
| Installation: |
Wall Mounted |
| Certification: |
CE |
| Power Supply: |
Electric |
| Application: |
Poultry House, Dairy Farm, Industrial Use etc |
| Power: |
0.37-1.1kw |
Product Description
Product name: Butterfly cone fan
Main materials: Stainless steel; Hot galvanized sheet.
Application: Greenhouse, Poultry house, Dairy farm, Industrial use etc.
Advantages: Larger air volume, higher working efficiency
Fan warranty period: One year.
|
ITEM |
Name |
Description |
|
01 |
Fan blade |
Made of 430 Krupp stainless steel by punch forming.
The stainless steels are resistant to rust and deformation.
Its thickness:1.2mm ; Surfact finish quality:BA
The special design of fan blade improved the fan's overall effectiveness. |
|
02 |
Double door device |
Front double door opening design
Lengthened horn design
When works, the double door will be in opening state all the time
The horn and square frame are made of galvanized sheet with 180g/sqm zinc coat, which free from rusting. |
|
03 |
Belt |
It is the Japanese Mitsubishi brand Belt, which has long service life and little maintenance.
Our company adopt belt-type B instead of belt-type A since 2010.
Type B is much more thicker and durable than type A. It matches this kind of fan better. |
|
04 |
Motor |
Motor voltage and frequency can be customized. China brand motor and Siemens motor for option
China brand motor still has the default phase protection device.It can protect motor from demage when power off.
Motor Ingress protection grade:55 Insulation class: F |
|
05 |
Rubber sealing |
There is the rubber sealing around the double door, which can effectively avoid the air backflow when fans come into operation at different time and improve running efficiency by 15-20% than before. |
|
06 |
Connection |
Adopt plug-in unit
Fixed firmly by nuts and rivets |
|
07 |
Specifications of this fan |
Model: DJF(e)-1380
Belt driven
Size: 1.38*1.38*1.3m
Diameter of fan blade: 1270mm(50in)
Motor: 380v 50Hz 3 phase 1400rpm 1.1kw
Air volume: 30025cfm
Fan blade rotational speed: 439rpm
|
