| Prod Model: |
QOMA-BCF/1380 |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Cooling Method: |
Direct Cooling |
| Power Supply: |
Electric |
| Application: |
Livestock, Poultry, Greenhouse Ect |
| Certification: |
ISO |
| Material: |
Stainless Steel |
| Installation: |
Wall Mounted |
| Type: |
Ventilation Fan |
| Power: |
1100W |
Product Description

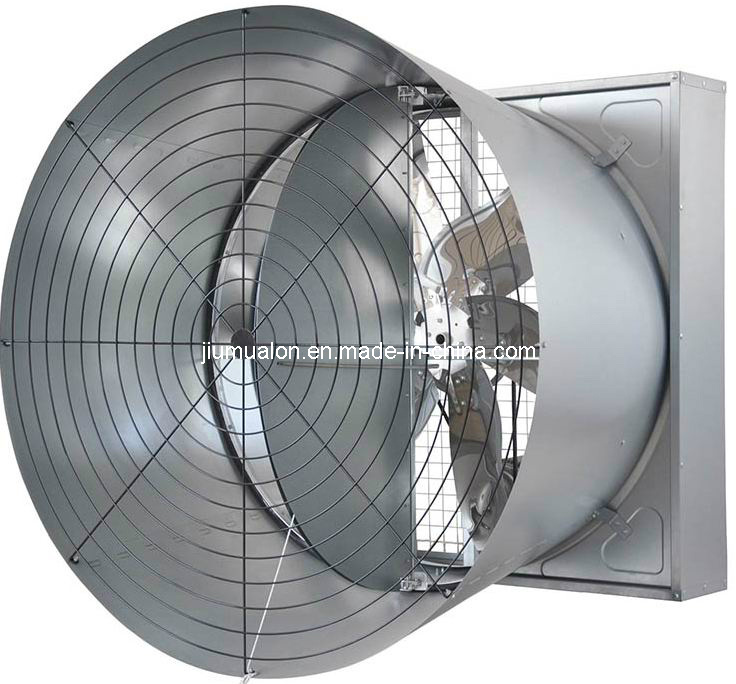

THE SPECIFICATION OF BUTTERFLY CONE FAN FOR POULTRY HOUSING, GREENHOUSE
Ø Fan size: 1380mm× 1380mm× 1300mm
Ø Frame: Hot galvanized sheet, high anti-corrosive durability. Frame thickness: 1.00
Ø Motor: China motor, CE certificate
Motor technical data: 380 Vor 220 1.5HP 50Hz
Motor protection grade: IP55, Insulation class F
Motor RPM: 1440r/min
Ø Noise: ≤ 64dB
Ø Blade diameter: φ 1270mm
Blade No.: 6
Blade material: Stainless steel 430, offered by Kupper Stainless Steel Co. Ltd
Blade RPM: 460r/min
Ø Bearing: High strength, lower noise, and waterproof.
Ø Housing: Galvanized. Thickness 1mm
Ø Belt pulley: Aluminum alloy, light weight, high-strength
Ø Air flow: 52000m3/h
|
Model |
Blade/mm |
Frequency /HZ |
Motor Speed (r/min) |
Capacity(cubic meters/h) |
power /w |
Noise (db) |
Voltage /v |
Size (mm) |
|
QOMA-BCF/1380 |
1270(50in) |
50 |
≥ 1400 |
51020 |
1100 |
≤ 62 |
380 |
1380x1380x1300 |
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
