| Prod Model: |
TKT-AC36P |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| Type: |
Roof Top Model |
| Capacity: |
122760 BTU |
| Power Source: |
Powered by Sub Diesel Engine |
Product Description
High Cooling Capacity & Reliable Performance Suitable for Most Place in the World;
Stream Line.
Environment Friendly;
Cheap Price with High Quality;
24 Months Warranty Time After Installation;
|

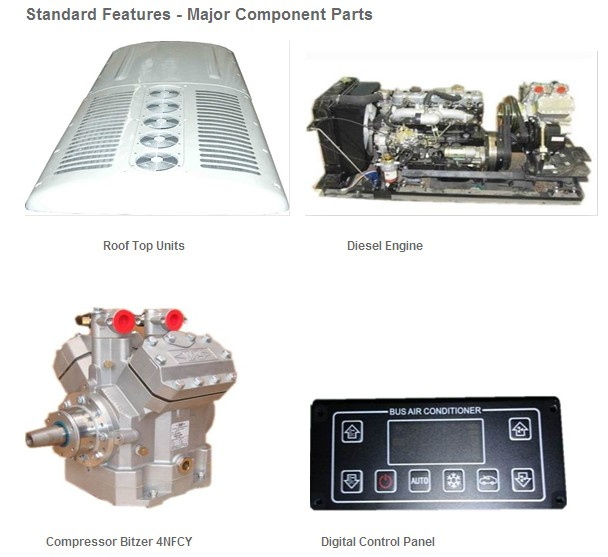

TECHNICAL DATA |
|
NO. |
Items |
Data |
|
1 |
Product Name |
Bus Air Conditioner –TKT-AC36P |
|
2 |
Type |
powered by Sub Diesel Engine |
|
3 |
Structure |
Roof Top Model |
|
4 |
Cooling Capacity |
36K W (122760 BTU) |
|
5 |
Voltage |
DC 24V |
|
6 |
Power Consumption |
95A |
|
7 |
Engine |
ISUZU 493, Diesel |
|
8 |
Compressor |
Bitzer 4NFCY |
|
9 |
Condenser |
QTY of Condenser Fan |
5 PCs |
|
Condenser Coil Type |
Copper Tube & Aluminum Fin |
|
Condenser Air Flow |
10500 m3/h |
|
10 |
Evaporator |
QTY of Evaporator Blower |
6 PCs |
|
Evaporator Coil Type |
Copper Tube & Aluminum Fin |
|
Evaporator Air Flow |
8200 m3/h |
|
11 |
Refrigerant |
R134A |
|
12 |
Weight |
245KG |
|
14 |
Alternator |
Prestolite 150A Battery less |
|
15 |
Dimension |
4725X1862X190 mm |
|
16 |
Application |
Widely Applied on Big Bus from 11Meters to 12.8 Meters,
City Bus & Coach Ect. |
Thermo Kingtec was established in 1993 in Xinxiang, China where is the basement of producing refrigeration system. As the first and leading manufacture of transport refrigeration in China, we have devoted ourselves to producing reliable, efficient and economical transport refrigeration for the world.
In China, we have been manufacturing high quality products as an OEM to CIMC company since 1998, who is the most influential manufacture of refrigerated truck in China. From 2005, Our products began to be introduced to world widely countries, and earned high reputation of producing excellent transport refrigeration system in more than 48 countries until now.
All of products, including transport refrigeration system and bus air conditioner, are CE certificated for the whole performance, and our company has been certificated by ISO9001: 2008.
The most important is that the reliable performance of our products have been proved by customers from more than 48 countries, especially very hot countries, such as Mexico, Colombia, Qatar and Saudi Arabia ect countries.
Thermo Kingtec Co. Ltd will continuously concentrate our efforts on high quality products, best service and technical innovation for cold chain system of the world. No matter where you are, Thermo Kingtec will be your strong back-up and reliable partners in China.
