| Prod Model: |
SZC-V-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Components: |
Bitzer Compressor |

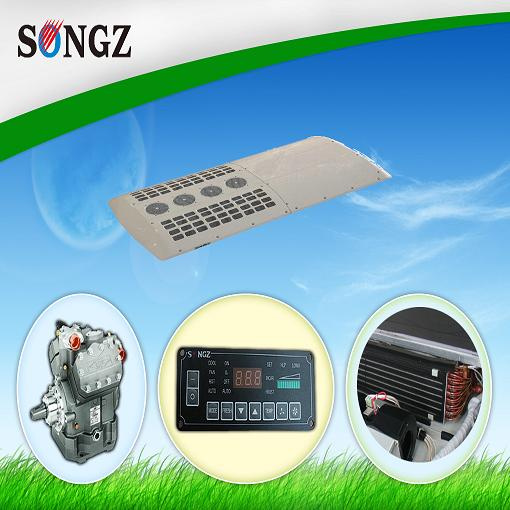

Product Description
1. We are the only listed company[002454. SZ] producing bus air conditioning in China.
2. Sales of our company: We held above 30% share of China bus & coach air conditioner market. We sold about 22600 sets roof mounted bus air conditioners (cooling capacity bigger than 16Kw) in 2009, 32000 sets in 2010. We have kept the lead position in China since 2002. We have supplied more than 6000 sets of air conditioners to Beijing Public Transport Company for the use of 2008 Olympic Games. Today we are supplying to almost all of the bus plants in China.
1) Size: 4200*1826*219mm
2) Standard cooling capacity: 31KW
3) Max cooling capacity: 34KW
4) Small dimension
5) Low cost
6) Easy for maintennance
3. The advantages of the SZD series:
(A) The roof-mounted unit owns a streamline outline, taking on a nicer and more handsome apperance.
(B) The heat-exchanger adopts tube-fin type heat exchanger of 7mm insind screw thread copper tube, therefore making high energy efficiency ratio and low oil comsumption.
(C) Dighital-displayed automatic temperature control.
(D) Good servicing inerchangeablity and accessibility.
4. The type SZD-V-D is for the city buses the length of which is between 10.6~11.5 meters.
No. |
Description |
Brand |
Features |
1 |
compressor |
BITZER 4NFCY |
Famous brand, Beijing Bitzer, high reliability |
2 |
Evaporator blower |
SONGZ |
Imported axletree, high efficiency, long life time with 6000 hours |
3 |
Condenser fan |
SONGZ |
Imported axletree, high efficiency, long life time with 6000 hours, low noise |
4 |
Expansion valve |
DANFOSS |
First-class brand, high reliability |
5 |
Filter drier |
SONGZ |
High efficiency structure. completely radial sealing |
6 |
Pressure security device |
SONGZ |
Protecting the elements and components from being damaged by abnormal pressure, high precision |
7 |
Plug-in connector |
AMP |
Wholly silver coated, corrosion-resistant to acid, alkali and salt, water and dust proof. |
8 |
Heat exchanger |
SONGZ |
φ 7 inside screw-thread copper tube |
9 |
Control panel |
SONGZ |
Digital-displayed temperature type, trouble direction |
10 |
Pipeline |
SONGZ |
Stainless crinkle soft steel hose and copper tube |
11 |
Shell |
SONGZ |
All aluminum (LF21), Made by mould and melding. All protected from rust by Zinc-gilt with broiled paint. |
12 |
Belt(optional) |
GATES/DONGIL |
Famous brand, stable quality |
13 |
Compressor bracket(optional) |
SONGZ |
Limiting 5 degree of freedom with vibration absorbing design to reduce the vibration of generator and dramatically lengthen the life. |
14 |
Air-returning grill(optional) |
SONGZ |
Large air-returning area design structure, press forming by mold, attractive and handsome appearance, with high efficiency filter net |
15 |
Fresh air system(optional) |
SONGZ |
Driven by the imported motor |
16 |
Generator
(optional) |
PRESTOLITE |
Manufactured by Sino-America joint venture PRESTOLITE Co., stable and reliable performance |
|
|
|
|
As a wholly Hong Kong-owned company, Songz Automobile Air conditioning Co., Ltd. was established in 1998 with total assets of 40 million US dollars. Our company has passed the evaluations of ISO9001: 2000 and TS16949 QC certifications.
Our company owns 2 full functional automobile air conditioner labs, 6 manufacture plants and more than 1, 300 professional employees. Our plant covers an area of more than 150, 000 square meters.
With the imported high class technology, advanced equipment and high grade employees, we develop with high speed. The sales quantity of roof mounted bus air conditioners reached 18, 512 sets in 2006, 32000 sets in 2010 and has kept the lead position for 5 years. We hold above 30% market share in China. We started to export our products to foreign countries and regions in 2003. Now our international market has been extended to South Africa, East Europe, the Middle East, Southeast Asia, and Oceania.
We provide not only high quality products but also full sets of automobile air conditioner solution and professional service for customers. Please feel free to contact us for further information.
