| Prod Model: |
MVT-AH13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
1080P Ahd Camera |
| Chipset: |
Sony CMOS |
| Resolution: |
1080P/2.0MP |
| IR Distance: |
30m |
| Lens: |
HD Lens, 6.0mm/3.6mm/8mm Optional |
| IR LEDs: |
36PCS |
| Warranty: |
2 Years |
| Lead Time: |
3 Working Days |
| House Material: |
Metal House |
| HDMI Format: |
1080P |
| Effective Distance: |
10-30m |
| Sensor Size: |
1/3 inch |
| Remote Control: |
Without Remote Control |
| Sensor: |
CMOS |
| Style: |
Bullet Camera |
| Feature: |
Waterproof / Weatherproof, High Definition, Mini Size, Auto BLC |
| Technology: |
Infrared |
| Type: |
HD Ahd Camera |
| Kind: |
Fixed Lens |
| Horizontal Resolution: |
1920tvl |
Product Description

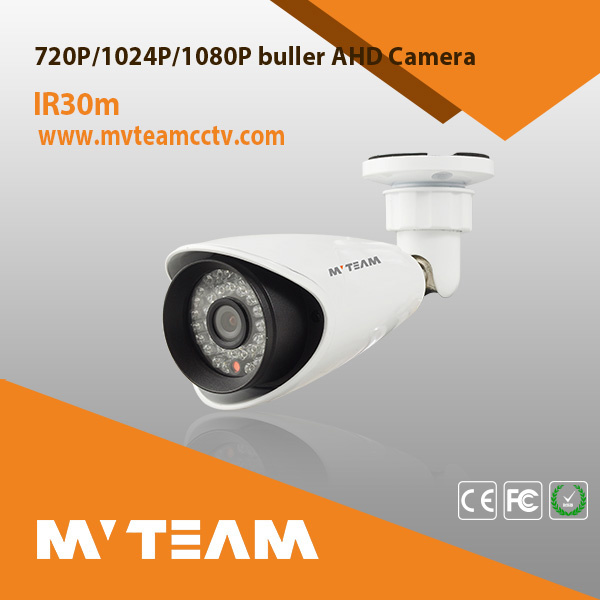

bullet AHD Camera 2.0MP security camera housing
Waterproof outdoor use
Gray and White color optional,
With 6mm(M12 ) Lens,3.6mm/8mm optional
36pcs×Φ5 IR leds,
30m IR Distance,
3-Axis bracket with cable built-in
1/3" CMOS(Sony322+NVP2441H )
1080P/2.0MP,with IR CUT
Lead time:3-5 working days
OEM available, MOQ=100 pcs
Package:MVTEAM Brand or neutural one
OSD optional, would add extra 1 dollars
| Model | MVT-AH13A | MVT-AH13N | MVT-AH13E | MVT-AH13T | MVT-AH13B | MVT-AH13P |
| Sensor | 1/4" CMOS pixelplus
1.0M/ 720P OV9712 | 1/4" CMOS pixelplus
1.0M/ 720P AR0141 | 1/3" CMOS pixelplus
1.3M/ 1024P AR0131 | 1/3" CMOS pixelplus
1.3M/ 1024P AR0130 | 1/3" CMOS pixelplus
1.3M/ 1024P SONY238 | 1/3" CMOS pixelplus
2.0M/ 1080P SON322 |
| SIGNAL | PAL / NTCS |
| Video Output | HD-AHD/CVBS |
| Effective Pixels | 1280(H)*720(V) | 1280(H)*720(V) | 1280(H)*1024(V) | 1280(H)*1024(V) | 1280(H)*1024(V) | 1920(H)*1080(V) |
| Min. Illumination | 0.01Lux F1.2 |
| Shutter | 4/25s~1/45,000s |
| Synchronization | Internal |
| Video Output | 1-channel BNC HDAHD/CVBS high definition video output |
| BLC | optional |
| OSD | optional |
| AWB | Automatic / manual / day / night |
| Day/Night | Auto(ICR) / Color / B/W |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Power Supply | DC 12V±10% |
| Working Environment | 30°C~+60°C/Less than 95%RH(no condensation) |
| Power Consumption | 4W MAX |
Note:1080P AHD Camera can only work with 1080H/1080P AHD DVR.
AHD System p2p function
Welcome to visit our P2P video demo http://www.Mvteamcctv.Com/video.Html
Good software for security produtcts also can make customers have a good use experience, so that attract more new customers.
MVTEAM apply the Qmeye as it's strong management on video surveillance. All different technology can use one software to manage.
bullet AHD Camera 2.0MP security camera housing
Direct Benefit:
* Customers no more have to learn to use different softwares, just one enough.
* For distributors, this reduces the technical support and aftersale service, It saves time cost and labor cost
* Support mobile P2P, the same feature when it is installed on smart phone or Tablet.
* Android and IOS, Win7/8,Vista/XP, available
*Such software is free for MVTEAM products
Good package for the goods is also very important factor. See below is our package. Fashional and Reliable
Hot New Products Top 10 AHD 2.0MP outdoor CCTV Camera factory
FAQ:
Q: Are you manufacturer or expoter?
A: We are manufacturer specialized in secutity CCTV products. We can provide you good quality goods with reaxonable price.
Q: Why should I believe in quality of your product?
A: Our products have got CE, FCC, ROHS approved. And you can test samples first, 1 sample is available.
Q: What are your payment?
A: T/T and Western union are expected.
Q: How long is your lead time?
A: 5 business days, 7 business days for mass order.
Q: How do you deliver the goods?
A: We can send the goods by air / by sea /by express(DHL, TNT, Fedex, UPS, EMS). We can choose the best suited deliver way for your
convenience
Q: If we are not familiar with the camera, how should I do?
A: Dont't worry! We will provide you correct advice and technical suppot. We have professional engineerist.
