| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
AV |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Function: |
Amplifier Combined |
| Tube Type: |
Tube Amplifier |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Output Number: |
5 |
Product Description

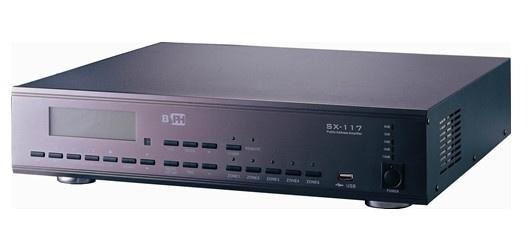

Multifunction mixing amplifier SX-117, applicate to most out small and medium projects.
- Rated power 240W RMS;
- 70V, 100V, 4-16 ohms speaker outputs;
- Switcher for 70V and 100V;
- Jack 6.3 and XLR for local MIC input;
- Switcher for MIC and line input;
- Automatic gain control function for MIC console;
- Built-in several audio sources (USB, Tuner, AUX in);
- 5 zones selection;
- 2 local MIC inputs;
- Support 1 remote microphone paging and zone selection from 1km distance;
- 24V phantom power supply to microphone;
- Frequency filter cuts low frequency.
|
Rated power |
240W (RMS) |
|
Frequency response |
50Hz ~ 20KHz |
|
SNR (mic) |
better than 65 dB |
|
SNR (AUX, MP3) |
better than 85 dB |
|
Input sensitivity |
0.775V 0 dBV |
|
Tone control |
14 dB |
|
Power Source |
200 ~ 240V AC 50Hz |
Foshan Langdu Intelligent Appliance Technology Co., Ltd. has been striving to be one of the leading international brand of Public Address Systems & Equipments since its establishment. Foshan Langdu Intelligent Appliance Technology Co., Ltd. has rich experience of 6 Years in the field of PA system. The aim of the company is to offer best designed, high-quality products at reasonable price. Advanced technology, careful selection of designs, component, and workmanship ensure reliable quality of BSPH products. Continuous research and innovative design push BSPH to continuous development.
In the last to summary up, BSPH is one of the leading Exporter & Manufacturer in China equipped with valued experience, expert in manufacturing goods as per international standard & demand, at most competitive rate/price.
BSPH products range cover almost all kinds of PA apparatus to meet all requirements for public address. OEM and ODM are welcome, the main BSPH products are listed below:
* SX-850 Large & Intelligent PA Management System
* SX-450 Typical & Intelligent PA Management System
* Intelligent PA system and Equipment
* Digital kindergarten PA Management System
* Digital School PA Management system
* Family Information PA Management System
* Shops and Office Management Central Centralized Control Platform
* School Management Central Centralized Control Platform
* Hotel Management Central Centralized Control Platform
* Urban Light Rail (Metro) PA Management System
