| Prod Model: |
BRLB002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cycle Life: |
>1000 Cycles @ 3c 100% Dod |
| Efficiency Of Charge: |
100% @ 1/3c |
| Dimension: |
253.5*191*169mm |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
or EV, UPS, Energy Storage System |

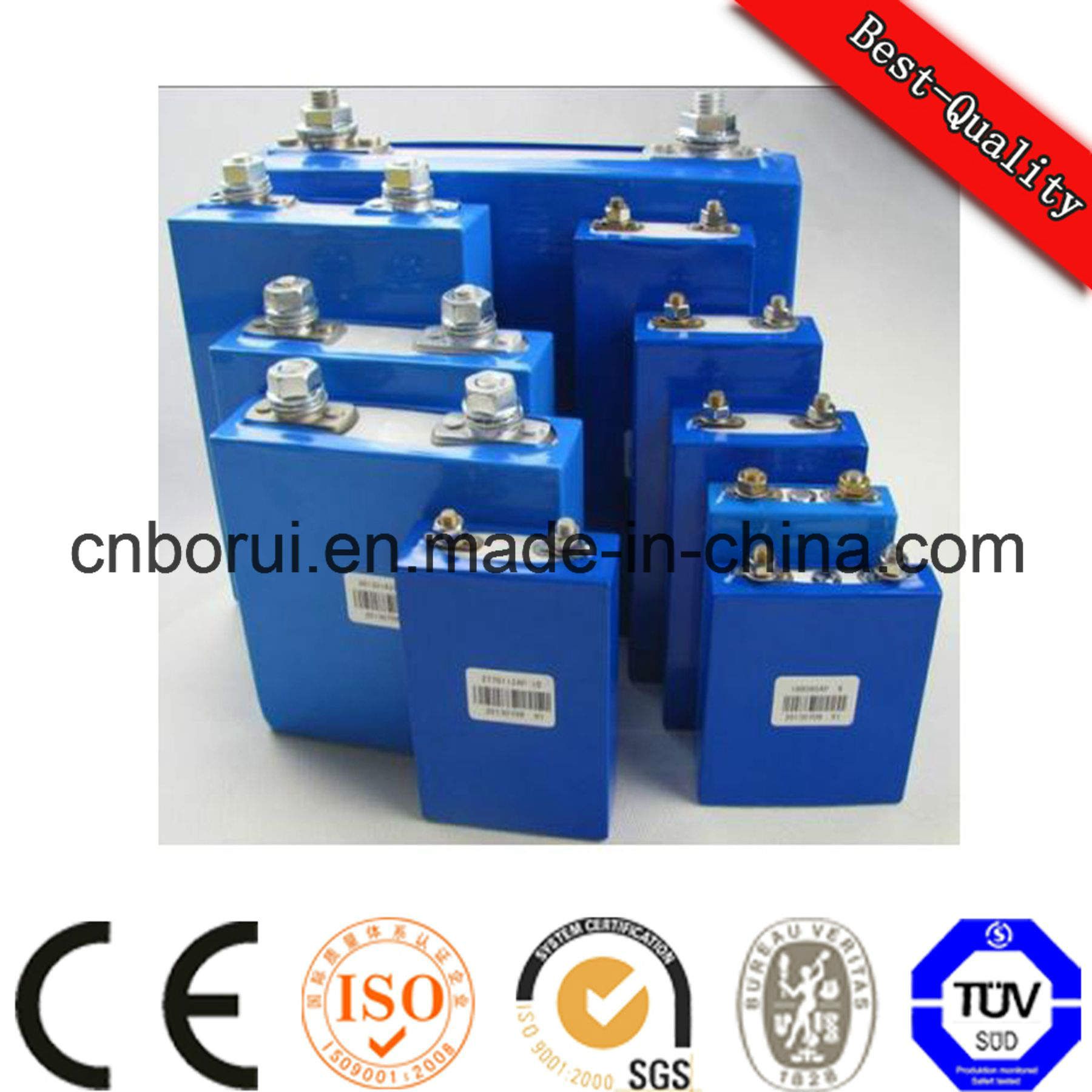

Product Description
Yangzhou Borui Electric Lighting Co., Ltd.1. Feature:
Uniqueness of Borui Single Battery Cell
| Uniqueness of Borui Battery Pack |
1 | Safety | 1 | Modular Design |
2 | Long Cycle Life | 2 | Pack Design with Light Weight |
3 | Low Internal Impedance | 3 | Series and Parallel Connection Technology |
4 | High Energy Density | 4 | Precise Temperature Detection |
5 | High Power Density | 5 | Experimental Date Analysis |
6 | Excellent Temperature Performance | 6 | Without Wiring Harness Structure |
2. Specification introduction:72V 40AH Li-ion LiFePo4 Battery Lithium Ion Battery Rechargeable Battery Power Pack for Electric Vehicle
72V 40Ah lithium polymer battery pack |
| Mechanical | Mode | PN85188236 |
| Cell & Connection Mode | Ternary/(NiCoMn)O2, 19S1P |
| Dimension(D*W*H) | 253.5*191*169MM |
| Weight | 15.8KG |
Electrical
Characteristics | Rated Capacity | 40Ah |
| Min Capacity | 39Ah |
| High Rate Discharge Capacity | > 90% Rated Capacity |
| Discharge Capacity @ -20ºC(-4ºF) | > 70% Rated Capacity |
| Norminal Voltage | 68.4V |
| Open Voltage | 74-76V |
| Load Voltage | ≥ 52.25V |
| Energy | 2736Wh |
| Internal Impedance(@ 1000Hz.) | ≤ 50mΩ |
| Cycle Life | >1000 Cycles @ 3C 100% DOD |
| Months Self Discharge | ≤ 5% @ 25ºC(77ºF) |
| Efficiency of Charge | 100% @ 1/3C |
| Efficiency of Disharge | 95% @1C |
Standard
Charge | Max Charge Voltage | 79.8V |
| Charge Cut-off Voltage | 79.8V |
| Charge Current | 1/3C, 13.3A |
| Max Charge Current | 40A |
Standard
Discharge | Standard Current | 40A |
| Max Discharge Current | 3C, 120A |
| Discharge Cut-off Voltage | 52.25V |
| Environmental | Charge Temperature | 0 ºC to 45ºC(32ºF to 113ºF) @ 65±20%Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity |
| Storage Temperature | ≤ 1 Month, -20ºC to 60ºC(-4ºF to 140ºF)
@ 65±20%Relative Humidity |
| ≤ 6 Month, -20ºC to 30ºC(-4ºF to 80ºF) @ 65±20 |
Safety Performance:
Item
|
Test name
|
Result
|
1 |
Over charge |
No fire,no explosion |
2 |
Over discharge |
No fire,no explosion |
3 |
Short Circuit |
No fire,no explosion |
4 |
Drop |
No fire,no explosion,no leakage |
5 |
Hot oven |
No fire,no explosion |
6 |
Crush |
No fire,no explosion |
| 7 | Needle puncture |
No fire,no explosion
|
3. Application: 1. Telecommunications: cellular phone, interphone, cordless phone
2. Portable equipment: digital camera, portable DVD, portable television,
3. Portable Devices: GPS, PDA, PMP, PSP, portable medical device, insrument and apparatus etc.
4. Illuminate Devices: miner lamp, searchlight, lighting devies, emergency light.
5. Others: toys, rc models, power tools, Widely applied in POS system, Solar supply system, electric tools,household appliances and emergent device area.electric bikes, Laptop, camcorder, Military equipment: IR telescope, Medical devices.

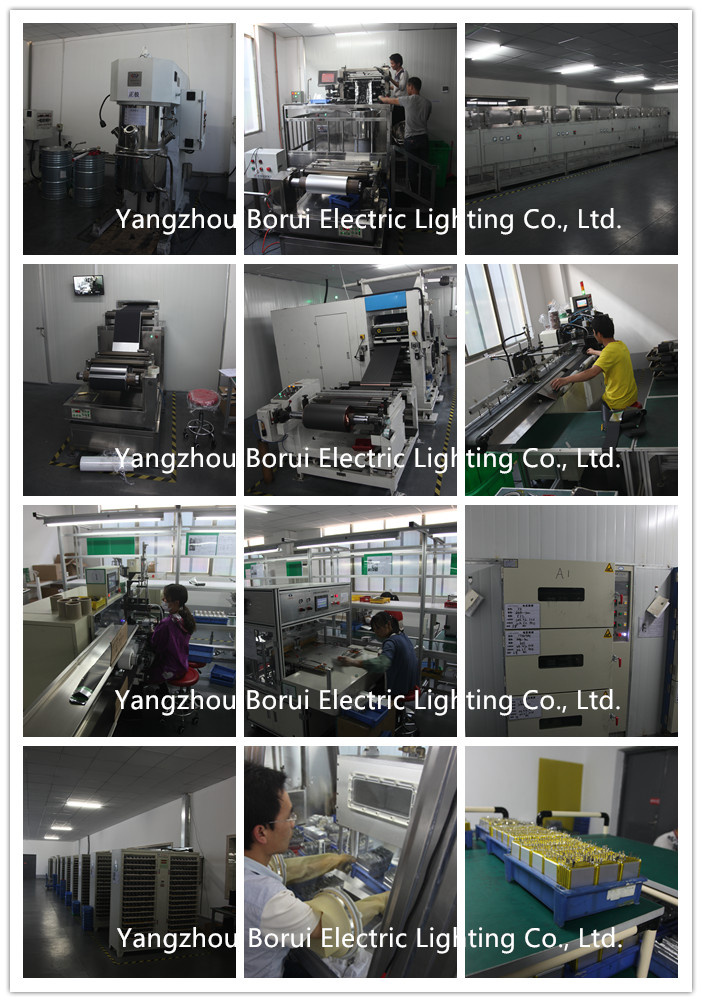

4. After-sale Service All of Borui battery cells in a pack are with very high consistency.In a pack, each cell has its own sole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. Borui has a strong system working for this.5. Factory and EquipmentBorui is a pioneer in the lithium battery market and a unique lithium battery solution company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material. Borui is a is a high-tech enterprise in national key field, which is specialized in developing, producing, selling lithium polymer battery and battery pack, BMS, PACK, and high-quality and high-rate starting battery. The product application field range from EV to HEV, including bus, PCV, SUV, golf cart, city delivery vehicle, mail truck, electric garbage vehicle and so on. Borui Power is planning to launch a series of products which can provide power for electric vehicle and motorcycle. Borui Power also aims to make the products to be solar-powered and compact, thus installing them into portable equipment so as to mitigate the environmental issues caused by lithium battery scrap.
6. Contact Us: Tel: 86-532-83978013
Fax: 86-532-83978023
Mob: 86-151926008257. Service:1. Reply your inquiry in 12 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. 4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 15years, competitive with good quantity.7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you are in need of our products, you may let us know and we will offer you good products with great quality and service.
8. FAQ:
1. How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.
2. Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.
3. What's your warranty for battery?
Our battery the warranty time is 5 years .
4.Can I force-discharge lithium batteries?
When batteries are force-discharged with an external power source, the voltage drops to under 0 volts (which is called voltage reversal ) and internal gas is generated. This can lead to swelling, heat generation, leakage, rupture or fire.
5.Can I use Lithium batteries mixing with other battery types?
If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc., may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
6.Where should lithium batteries be stored?
Lithium batteries should be stored in a cool, dry place that is not exposed to direct sunlight and has minimal temperature variation. Storage in areas subject to high temperature or humidity may cause deterioration in battery quality and durability. To avoid short circuiting batteries during storage, be sure that the positive and negative terminals do not come into contact with each other.
7.What is a short circuit?
If the positive and negative terminals of a battery come into contact with each other or with a conductive metallic object, this can cause a short circuit, which generates heat. If cells or batteries are stacked on top of each other or mixed, the resulting short circuit can lead to heat generation, leakage, rupture, and possibly fire.
