| Prod Model: |
HW-QP3.5XK-04D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension Siza(mm): |
340*340*100 |
| Fire Adjustment: |
9 Levels Power |
| Display Mode: |
LED |
| Technology: |
Single Switch Technology |
| Factory: |
Foshan Shunde Highway Electronic Co.,Ltd |
| District: |
Foshan Shunde, Guangdong, China |
| Engineer: |
More Than 40 |
| Installation For Induction Cooker: |
Countertop |
| Housing: |
Stainless Steel |
| Burner For Induction Cooker: |
Single |
| Heating Element: |
Coil |
| Color: |
Black |
| Power: |
3500W |
| Operation Mode: |
Knob Switch |
Product Description
>>Parameter

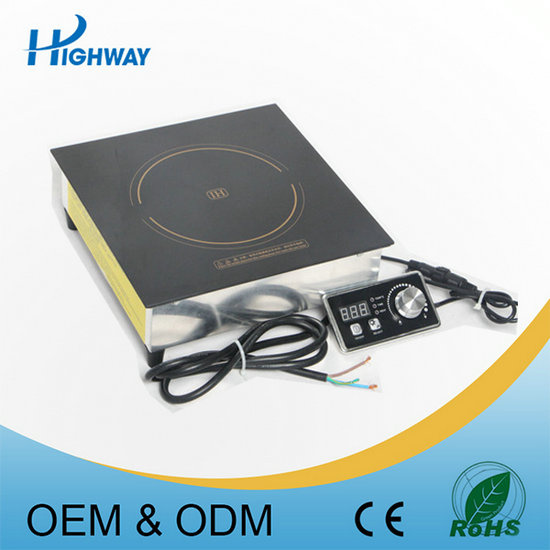

| Name | 3500W built-in induction cooker |
| Model No. | Hw-qp3.5xk-04D |
| Voltage | AC 220V |
| Power | 3500W |
| Frenquency | 50-60Hz |
| Display mode | LED |
| Technology | Single switch technology |
| Control method | Knob switch |
| Installation method | Counter top/built-in |
| Product dimension | 340*340*100mm |
| Fire adjustment | 9 power levels |
>>LED display
> on/off:
When connect to the electric, heard buzzer sound one time, and digital light and digital tube all lighting one time then close.The product enter automatic standby.The switch light flash and digital tube shows "----".
The on/off button can make it work.The digital light stop to flash and work normally.The default level is 4 level.
Press "+" and "-" or sliding adjustment can increase and decrease the level.The relative lights will be working when
You adjust the level.If there is pot on the product, it will be working.If no pot, the buzzer alarm beeps every 2 seconds
With no heating.After second minutes, it automatic off.
> 3 digital tube display:
A.First digital:Fire level display, the default level is "4".
B.When you want to timer, please press the button for 5 seconds, the "time" light on.The default time is "20" minutes.
Rotate the switch, you can adjust the time as you need.The time range is from 1 minute to 99 minutes.
C.When there are some errors and have alarm, the last two LED display tube will show mistake code "ex"."e" means
Error, "X" means error code, and with number display.
D.When you press the switch for a long time, it will go into ad adjust mode, then the engineer can check the induction
Cooker detail parameters.
>>Aging Test
> Before shipment, all models should take part in aging test at least an hour, ensure product in high quality, let customer feel free to purchase models from us.
> Professional workshop team clean up the model after test, check out all details then pack up. Each model put into a standard carton box with cotton around, wooden package also out of the carton box to product model from broke in transportation.
>>Self-diagnostic Function
| Symptom | Cause code | Possible cause |
| Voltage is too low | E0 | Input voltage is too low. |
| Voltage is too high | E1 | Input voltage is too high. |
| Input voltage is abnormal. | E2 | Circuit fault |
| Abnormal current | E3 | Circuit fault |
Wire coil temperature sensor
short circuit | E4 | Wire coil temperature
sensor short circuit |
Wire coil temperature sensor
open circuit | E5 | Wire coil temperature
sensor open circuit |
Wire coil temperature is too
high | E6 | Machine core fans is
failure or Air inlet blockage |
Wire coil temperature sensor
can't work | E7 | Wire coil temperature
sensor is off |
IGBT Wire coil temperature
sensor short circuit | E8 | IGBT Wire coil temperature
sensor short circuit |
IGBT Wire coil temperature
sensor open circuit | E9 | IGBT Wire coil temperature
sensor open circuit |
| IGBT temperature is too high | EA | Machine core fans is failure
or Air inlet blockage |
| Load open circuit | Eb | Wire coil open circuit |
| Load short circuit | EC | Wire coil short circuit |
| Phase catch exceptions | Ed | Circuit abnormal |
>>FAQ
Q 1:Free sample is ok?
A1.Sample is available.As international trade rule, all customers must pay for the shipping cost and sample price.After you place official order, sample cost will return to you.
Q 2.What is the MOQ of your products?
A2.Below 5000W model, MOQ is 100PCS.
More than 8000W model, MOQ is 10PCS.
Q3:We'd like to print our logo on the product, is it ok for you?
A3.:We supply OEM service which including logo printing, carton design.
Q4:How about the delivery time?
A4:For sample standard order, the delivery time is about 3-5 days.For ODM product sample, delivery time is about 7-15 days.For official order, it is about need 20-25 days.
Q5:What is your payment terms?
A5:We adopt T/T or western union payment.Other payment terms also can be consider.
Q6:How long is the warranty?
A6.For commercial induction cooker, we supply two years warranty.For high power kitchen equipment, some easy damaged parts.
