| Prod Model: |
BT002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Car MP3 |
| Certification: |
BQB |
| Voltage: |
12/24V |
| Audio Output: |
Digital Audio Coaxial |
| Placement: |
Plug in Car Cigarette Lighter |
Product Description

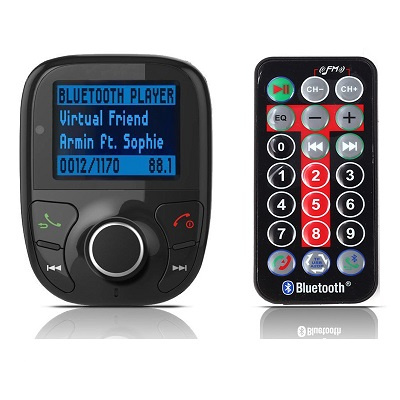

Bluetooth FM transmitter
User guide
Thanks for buying our product! To maximize best performance of the product, please read this manual carefully before using it.
Overview
This is a Car MP3 player with Bluetooth car kit, built-in FM Transmitter & MP3 decoding chip, which can transmit audio /music from TF card/USB disk and cell phones to car FM stereo system; with Bluetooth A2DP streaming function.
Flexible metal hose, suitable for all vehicles
As soon as the auto starts, screen displays its battery voltage.
Play music from USB disk and TF Card reader
Audio/music playback via Bluetooth A2DP
Support Bluetooth HFP/HSP,A2DP/AVRCP Profiles
Voice prompts the caller number when a call comes in.
Frequency ranges: 88.1 ~ 107.9MHz
Bluetooth Handsfree function: Full
Duplex, DSP(Digital Signal Processing)
Technology, CVC technology for echo cancellation and noise suppression
Charge for iPhone/iPad/Samsung/Htc/Google
Power switch
DC9~26V wide power supply suitable for variety of cars;
Operational instruction
1. Battery voltage
As soon as plug this device into car cigarette socket the auto starts, LCD displays its battery voltage
2. Choose frequency
Keep press"MFB " button + rotation Adjust FM transmits frequency from 88.1~107.9MHz, please make sure your car radio frequency is same as this car
MP3 player device;
3. Play songs from TF card or USB disk
Once connected power and plug in TF card or USB disk, the player detects MP3 files inside TF/USB and plays songs ordinarily. Press " "or " "to play the previous or next song; shortly press "MFB
"button to play or pause. Press
or to play the previous or next folder;
4. Volume adjustment
Rotation "MFB " button
5. Switch play mode
Keep press "MFB "button to switch TF/USB/Bluetooth A2DP play mode/audio in/audio out
Bluetooth Operational instruction
1. Pairing
When this player device is power on, lcd display,activate your cell phone Bluetooth and search "BT-MP3"
2. Enter connection password "0000".
3. Select "BT-MP3" -- "Connection" -- "Connect with handsfree device". After finished code connection
(make sure your car radio is turn on and the frequency is same as this device).
4. Streaming A2DP music from cell phones and transmits to the car stereo audio:(in A2DP mode)
Press" " Play previous song
Press" "Play Next song
Press"MFB " Play /pause
5. Bluetooth handsfree(in A2DP mode)
Make a phone call: In connection status, dial phone number on cell phone directly
Answer a call:Press
End a call: Press
Press twice to redial last call
Reject a call: Press
Transfer a call: Press "MFB " button
Audio in
Use a diameter of 3.5MM audio cable to connect the phone's headphone output with product Audio in input jack, so that the phone's voice issuing from the
car through the FM stereo
Audio out
Use a diameter of 3.5MM audio cable to connect the product Audio out jack and car stereo Aux in jack, allowing the product to play TF card or U disk or Bluetooth music play out the sound through your car stereo
Digital remote control
1.Play/Pause, Answer/end call(in A2DP)
2. CH-: Decrease frequency
3. CH+: Increase frequency
4. Shortly press to play last song
5. Shortly press to play next song,
6. EQ: Switch EQ mode
7. - Decrease volume
8. + Increase volume
9. Answer/end call
10.Transfer calls
11. Digit key 0~9: Choose frequency or songs
12. :Switch play mode SD/USB/A2DP
Specifications
Frequency channels: 88.1~107.9MHz
Transmit distance: 5M
Audio format: MP3/WMA/WAV/SBC
SNR: 68dB
Distortion: 0<1%
Frequency response: 20Hz-15KHz
Left and right channel separation: >60dB
Bluetooth version: Bluetooth v3.0
Bluetooth Profiles: HFP/HSP,A2DP/AVRCP
Operating voltage range: DC 9~26V
Power consumption: <1W
Operating temperature: -10~70 Degree
Working humidity: 0~95%
Product Dimension: 7(L)*5.3(W)*16(H) CM
Net weight: 85g
