Bluetooth Card Reader, NFC Card Reader, 13.56MHz Contactless Card Reader --ACR1255

Bluetooth Card Reader, NFC Card Reader, 13.56MHz Contactless Card Reader --ACR1255
Price: US $ 46/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ACR1255

Product Description

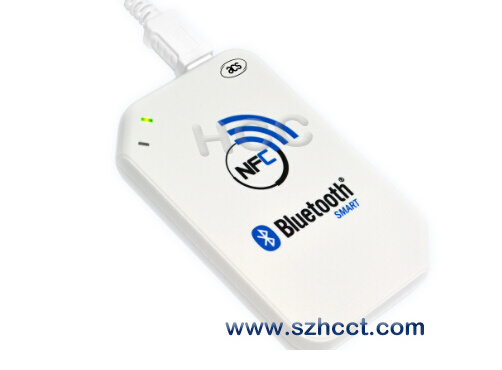

ACR1255U-J1 NFC Bluetooth Reader

Introduction
The NFC Bluetooth Reader ACR1255U-J1 is compliant to ISO-14443 Parts 1-4, ISO 18092 and supporting contactless card, FeliCa cards, NFC tags etc. The reader supports Bluetooth Standard 4.0, "single-mode" operation. It is full-speed USB 2.0 and compatible to different OS, e.g. iOS, Android and Windows platform. ACR1255U-J1 provides Li-ion battery with 320mAh forpower supply. It also has two LEDs and buzzer to show the state of operation. The reader will use the "Li-ion hanging square casing".

Features
  1. Support contactless smart card:
ISO14443 Parts 1-4.
ISO18092 (NFCIP-1) Compliant.
    FeliCa Card.
NFC Tag Types 1,2,3,4.
  1. Support 2 LEDS for smart card and wireless transmission.
  2. Support Bluetooth 4.0 protocol for data transmission(single-mode operation).
  3. Support User-controllable Buzzer.
  4. Switch for Bluetooth/OFF/PC-linked modes.
  5. USB 2.0 full speed (12 Mbps).
  6. Li-ion rechargeable battery ( for portable usage).
  7. Mini USB port.
  8. CCID protocol.
  9. PC/SC compliant.
  10. OS Platform support:
WHQL from Windows 2000, XP and up.
Win CE 5.0 and up.
Mac 10.5 and up.
Linux .
¡ Android 3.1 and above .
  1. Compliance to Standards and Certifications:CE,FCC,VCCI,RoHS,BQB.
  2. Compliance to CSCR API Standardization .


3.0. Typical Applications
  1. lCashless payment system

4.0. Technical Specification Un
Universal Serial Bus interface
TypeUSB full speed, four lines: +5V, GND, D+ and D-
Power sourceFrom USB
Speed12 Mbps
Power supply
Supply voltageRegulated 5V DC or Battery 3.7V DC
Supply current< 200mA (without smart card) Blu
Bluetooth interface
TypeBluetooth low energy 4.0 single-mode Co
Contactless smart card interface
StandardISO 14443 A & B Parts 1-4, ISO18092
ProtocolISO14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for, ISO 18092 FelCa and NFC tag
Smart card read / write speed106 kbps, 212 kbps, 424 kbps and 848 kbps
Operating Frequency for Contactless Cards Access
Operating Frequency13.56 MHz
Antenna
Operating distanceup to 60mm(Depend on Card Type)
Case
Dimensions85.00mm (L) x 54.00mm (W) x 10.00mm (H)
ColorWhite
Weight40g (approx.) O
Operating Conditions
Temperature0-50.C
Humidity10 - 90% Stan
Standards/CertificationsCE,FCC,VCCI,RoHS,BQB
OSWindows XP,Win CE5.0,Mac 10.5, Linux, Andriod 4.3 O
OEMOEM-Logo possible, customer-specific colors, casing and card connector
