| Prod Model: |
M blue |
| Height: |
1 Unit (44mm) |
| Price: |
Please Contact Us for Prices. |
| Channel Number: |
All 2 Channel, 3 Channel and 4 Channel Available |
| OEM Service: |
Acceptable |
| DSP Built-in: |
Available, Pls Contact Dolsi for Price with DSP |
| Color: |
Black or Blue Front Panel |
| Type: |
Professional Amplifier |
| Usage: |
Any Suitable Applications |
| Used For: |
Professional |
| Function: |
Post Amplifier |
Product Description
1 Unit Class-D Digital Power Amplifier
--Applicable to home theater
SPECIFICATIONS
| 1 U Digital Power Amplifier |
| Model No. | M3600 | M4800 |
| Channel number | 2 input, 2 output | 4 input, 4 output |
| Output power | 8 ohms | 300Wx2 | 300Wx4 |
| Output power | 4 ohms | 500Wx2 | 500Wx4 |
| Bridged output power | 8 ohms | 1000Wx1 | 1000Wx2 |
| Distortion( 1kHZ,=10dB/4 Ohms) | <0.2% |
| S/N Ratio (20Hz-20Khz,4 Ohms) | >112dBA |
| Cross-talk (1kHZ, 4 Ohms) | >40dB |
| Frequency response | 10Hz to 20k Hz,+/-1dB |
| Input impedance | balance 20K/ Non-balance10K |
| Damping factor (10-400Hz,8Ohms) | >300 |
| Output Category | Class D |
| Input sensitivity | 0.775V,0dB |
| Protection features | short circuit, direct current, over-load and amplitude limit. |
| Control knobs | power ON/OFF switch,VOLUME control in front panel . STEREO/BRIDGE/MONO switch in rear panel . |
| LED lights | CLIP/-10dB/SIGNAL/MONO/BRIDGE/STATUS indicators in front panel |
| Power delay | 4 seconds |
| Input interface | XLR input socket |
| OUtput interface | SPEAKON connector |
| Size (WxHxD) | 483x44x350mm |
| Net weight | M-3600: 4.95kg, M-4800: 6.30kg |
| Packing size | 560x120x470 mm (0.032cbm)
|
PRODUCT FEATURES
. Compact structure in only 1 unit of height and very light weight, easy to install in home theater or meeting room.

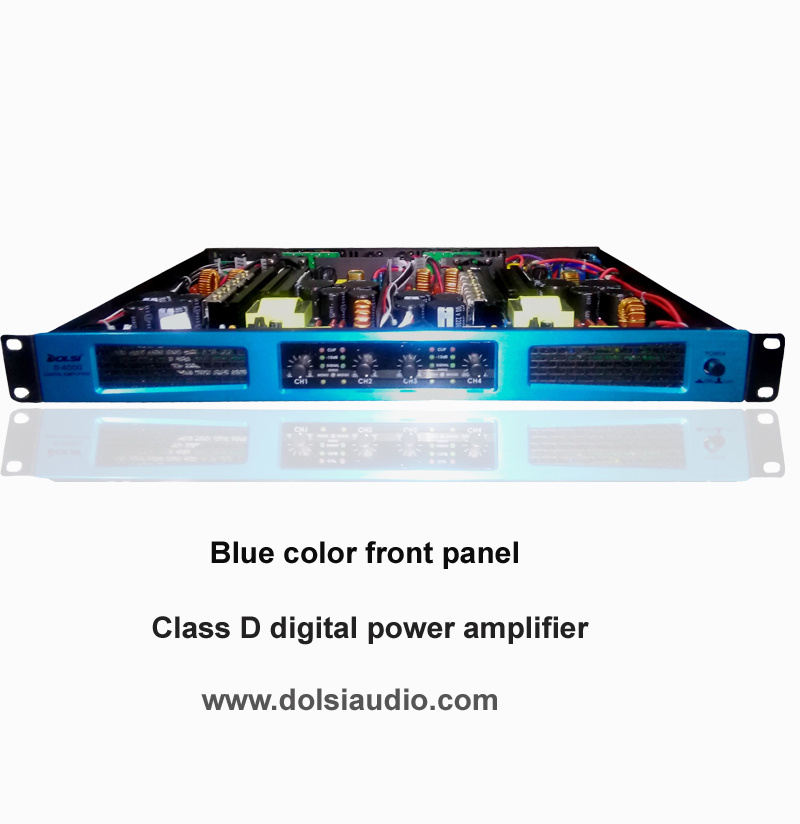

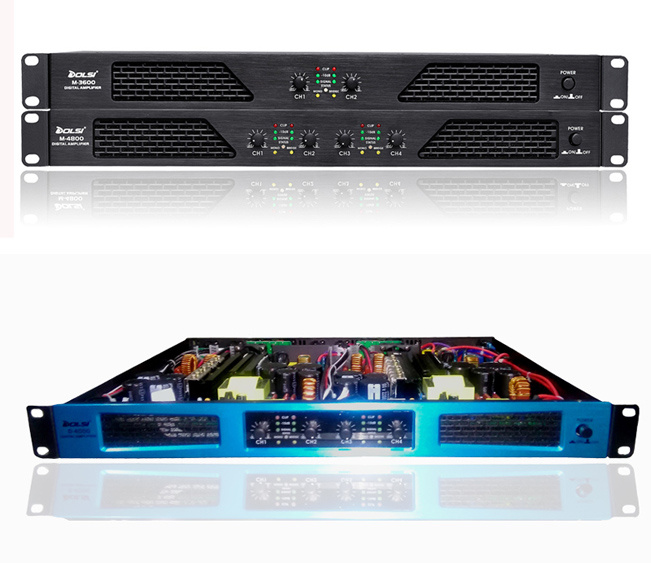

. Both elegant black and bling blue color front panel are available. Blue color will add vivid to your sound space.
. Carefully selected high quality components. The complete machine is with CCC, CB and CE certification and with RoHS compliance.
. Class D Toplogy integrated with switch power supply design
. Powerful output and high efficiency
. Low electricity consumption
. Accurate volume control, switch on/off, signal, clip and protection LED light in front panel
. Fully automatic protection circuit for each channel, including direct current protection, thermal protection, over-load protection and amplitude limit.
. Nice Cooling system.
. XLR balance input and professional SPEAKON output connectors

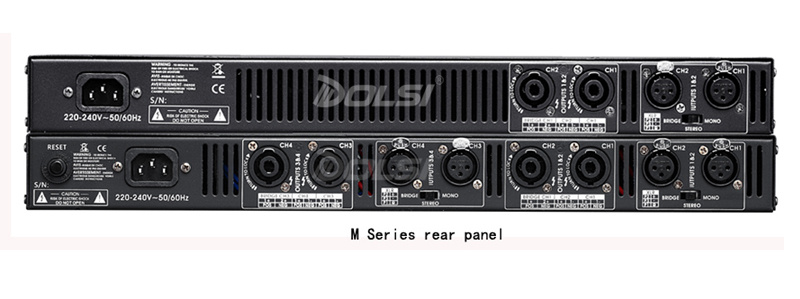

. Stereo ,bridge and mono mode selection pull switch is set on back panel.
