| Prod Model: |
WR-XC-268L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R134A, CFC Free |
| Germany Ebm Fan Motors: |
Yes |
| The Fin-Type Evaporator: |
Yes |
| The High-Effective Air-Cooled Condenser: |
Yes |
| Certificates: |
CE Mark, ISO9001, ISO14001,ISO13485 |
Product Description

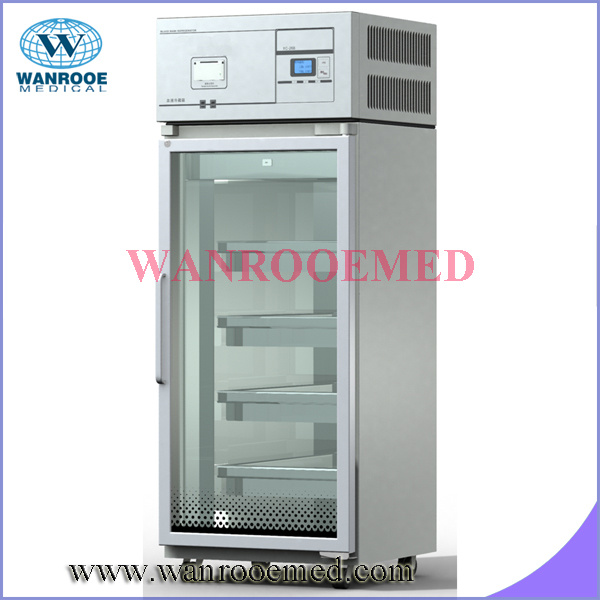

WR-XC-268L Blood Refrigerator
The Blood Bank Refrigerator is a specialized refrigerating equipment for blood (whole blood)storage application, which has been used in medical industries as well as cold storage of pharmaceuticals, biological products, vaccine, and so forth. It is suitable for hospitals, blood banks and sanitation and antiepidemic stations.
Control System:
1. Microprocessor-based temperature controller. Temperature range 4± 1° C, with temperature printer standard.
2. Large screen LCD display of temperature, display accuracy of +/- 0.1° C.
3. Automatic temperature control, Defrost automatic
4. Audible and visual alarm: High or low temperature alarm, Door ajar alarm, system failure alarm, power failure alarm, low battery alarm.
5. Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ
Structure Design:
1. Upright type, Exterior made from painted steel plate, Inside is stainless steel. Four units Caster are mounted under the bottom
2. Three-layer glass door with heater around to prevent ice leak., and lockable.
3. Interior fluorescent light
4. Temperature printer is standard, Optional chart recorder, blood storage basket.
Refrigeration System:
1. Forced air circulation system
2. International Famous compressor and Germany EBM fan motors
3. The high-effective air-cooled condenser and the fin-type evaporator
4. Refrigerant as R134a, CFC free
5. Certificate: CE mark, ISO9001, ISO14001, ISO13485
| Model | Capacity
(L) | External size
(D*W*H) | Interior size
(D*W*H) | Blood capacity | Weight
(KG) |
| XC-88L(CE) | 88 | 500*450*1515 | 402*343*663 | 450ml/bag*40-50/bags | 90/100 |
| XC-268L(CE) | 268 | 700*628*1662 | 512*518*973 | 450ml/bag*100-140/bags | 160/170 |
| XC-358L(CE) | 358 | 700*628*1962 | 512*515*1270 | 450ml/bag*180-220/bags | 200/210 |
| XC-588L(CE) | 588 | 800*760*1977 | 550*560*1260 | 450ml/bag*250-300/bags | 230/240 |
As the WANROOEMED is large-scale health care system Solution Providers, we focus on patient needs, continuous innovation, close to the clinical needs of people around the world to help improve medical conditions, reduce health care costs. So far, WANROOEMED products and solutions are deployed in over 100 countries, welcomed by professional medical and hospital brokers.
We are committed to better medical products, building cleaning, sanitation, medical care and comfortable working environment, to protect human life and health and safety. In recent years, the company in Jiangsu, Shanghai, Zhejiang, Anhui and other places to establish a "WANROOEMED" brand production base, and the introduction of Germany, Japan advanced production equipment and factory management philosophy, and constantly improve product quality, profit to customers.
"Superior quality, caring service" is as WANROOEMED commitment to customers, "sincere guardian of life" is as sacred mission of WANROOEMED. In the future, such as WANROOEMED people are full of passion for innovation practice their mission, focus hospitals needs, provide competitive medical equipment solutions and services, continued to create maximum value for customers.
