| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Ice Shape: |
Block |
Product Description

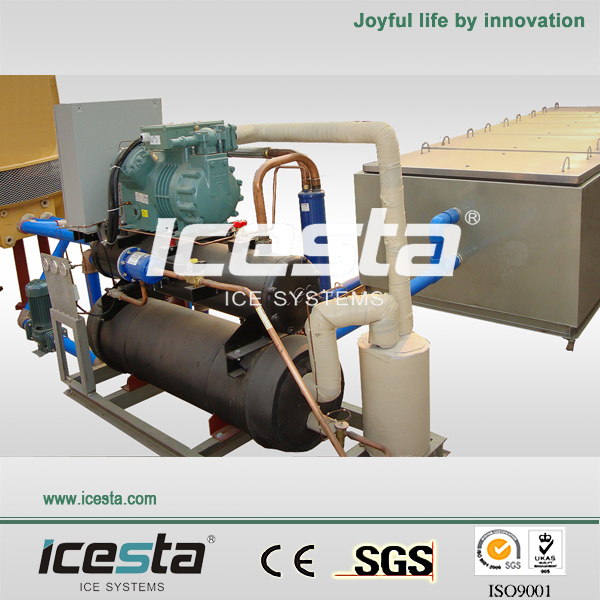

ICESTA Block ice machine workflow:
1. Feeding water in ice moulds. Each row of ice moulds is put to brine tank by ice crane, after the water feeder automatically fill the water in.
2. Saltwater agitator makes the saltwater flow cyclically.
3. Water in Ice moulds. Frozen.
Saltwater in brine tank cooled with refrigeration system running and saltwater flow cycling, which makes the water in ice moulds frozen.
4. Melting block ice moulds.
The crane slings up block Ice cans (moulds) into ice thawing tank for melting.
5. Remove / harvest ice. Damp the ice block from ice can with dumper, then store block ice.
Advantage & Characteristic:
*Evaporative coil of Ti pipe get high heat transfer effect, the stainlessness material, anti-corrosion can guarantee the long lifespan. (Galvanized sheet for option. )
*Particular design of ice thawing tank and ice dumping unit get easier operation.
*The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
*Modular and integrated design ensures easy for shipment, moving and installation.
*Customized design available according to our clients' requirements.
*Containerized type for you option: Max. 6T/day ice production in a 20' container and max. 12T/day ice production in a 40' container.
*Durability minimum maintenance
|
Model |
Capacity |
Refrigerant |
TOTAL power |
Dimension |
|
-- |
Ton/hrs |
-- |
kW |
Part name |
(L*W*H)mm |
|
IB3T-R2W |
3 |
R22/R404A |
14.8 |
Complete unit |
4000*2500*1200 |
|
IB5T-R2W |
5 |
R22/R404A |
21 |
Refrigeration Unit |
2000*800*1600 |
Evaporator
(Brine tank) |
4600*1400*1150 |
|
IB10T-R2W |
10 |
R22/R404A |
40.8 |
Refrigeration Unit |
1800*1000*1450 |
Evaporator
(Brine tank) |
4800*1000*2250 |
|
IB15T-R2W |
15 |
R22/R404A |
60 |
Refrigeration Unit |
2000*1200*1600 |
Evaporator
(Brine tank) |
4800*1000*2250 |
|
IB20T-R2W |
20 |
R22/R404A |
88 |
Refrigeration Unit |
3500*1300*2200 |
Evaporator
(Brine tank) |
12000*2200*1580 |
|
IB25T-R2W |
25 |
R22/R404A |
97.5 |
Refrigeration Unit |
3200*1800*2200 |
Evaporator
(Brine tank) |
4800*1000*2250 |
|
IB30T-R2W |
30 |
R22/R404A |
118 |
Refrigeration Unit |
3500*1500*2200 |
Evaporator
(Brine tank) |
\ 6760x4700x1560 |
Shenzhen Brother Ice systems Co., Ltd (ICESTA for short) located in Shenzhen, China. It is a professional manufacturer and exporter who specializes in designing and supplying innovative ice solutions worldwide with its own product ICESTA ice machines.
Owned senior professional refrigerating team, modern operating conception, ordered efficient management model, and global strategy, ICESTA has found a substantial base to tend towards the globe market, then play an important role in the fresh keeping and cooling in the field as aquatic food & meat processing, ocean-going fishing, concrete construction project, large supermarket and chain stores, dye chemical industry, mining and medical facilities, etc.
In line with our customer-oriented philosophy, ICESTA management is actively aligning its business structure to well meet customer needs with a wide range of products, excellent quality as well as credible service. Maintained strong focus as a professional exporter, ICESTA will strive itself to create maximum value for our esteemed clients.
With the spirit of "Revolution, Challenge, reputation, Improvement", we are supporting plenty of worldwide companies with OEM/ODM service. Welcome to contact with us, we will provide you sincere service and most reasonable price.
