| Prod Model: |
LG-360F2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Freestanding |
| Use: |
Refrigerator |
| Style: |
Upright |
| Climate Type: |
St |
| Door: |
Single |
| Capacity: |
301-400L |
| Door Number: |
Single Door |
| Type: |
Display Cooler |
| Door Type: |
Swing Door |
| Power Source: |
Electricity |
| Temperature Control: |
Mechanical Thermostat |
| Temperature Type: |
Single-temperature |
| Defrost Type: |
Manual Defrost |
| Function: |
Cold Storage |
| Certification: |
CE |
Product Description
Brief info

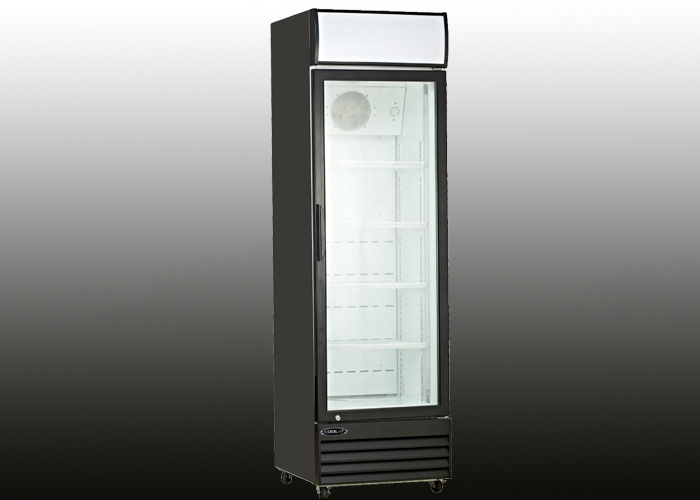

Model No. : LG-360F2
Certificate: CB, CE, RoHS, ETL, SONCAP
Size: 360L
Type: Plug in
Electric Feature: 220V, 50/60Hz, 110V/60Hz
Gas: R134a / R600a
Climate category: N~ST
Application: 0~10ºC beverage, beer
Speacial Feature: Foaming on top design, invisiable fan cover, maximize storage space!
Basic features:
1, Dynamic cooling, fin type evaporator
2, Double layer glass door, front side is tempered.
3, with lock&key, with 4 casters
4, with automatic closing door
5, with automatic drain-water evaporating
6, with front hot air blowing to relieve fog
options:
digital thermostat
extra shelf
canopy sticker
2 side + canopy sticker
aluminum door frame and handle
LED light
Model No | LG-400F | LG-450F | LG-550F |
| Size | Outer size(L×W×H)(mm) | 605x620x1940 | 605×665×2000 | 700×690×2060 |
| Packing size(L×W×H)(mm) | 645x665x1970 | 645×715×2050 | 745×726×2105 |
| Gross volume (L) | 400 | 450 | 550 |
| Net volume ( L) | 362 | 395 | 488 |
| Gross weight (KG) | 90 | 97 | 112 |
| Stucture | lightbox | YES |
| glass door | two layer glass front size tempered |
| cooling system | dynamic cooling |
| compressor | Bottom mounted, flat bottom |
| Wheels / feet | 4 universal wheels, 2 with brake |
| Features | body Color | white (blue and red color are optional) |
| Outer finishing | PPGI (prepainted galvanized steel) |
| Inner finishing | Painted aluminum |
| Evaporator type | fin type evaporator |
| Condenser type | web type condenser with fan | fin type condenser |
| Interior Light | Yes, vertical (LED light is optional) |
| Key/Lock | Yes |
| Temp. Control | mechanical (digital thermostat is optional) |
| Defrosting | auto |
| glass fog removing | hot wind blowing |
| shelf (qty) | 4pc | 4pc | 4pc |
| eletrical spec. | Refrigeratant | R134a / R600a |
| Input power (w) | 210 | 250 | 280 |
| Energy Consum.(Kw.h/24h) | 1.6 | 1.85 | 2.2 |
| Foam Blowing Agent | cyclopentane C5H10 |
| Voltage/frequency | 220V/50Hz, 220V/60Hz or 110V/60Hz |
| Compressor brand / origin | Donper/China Aspera/China |
| Load qty | 20FT/40FT/ 40HQ | 27 / 54 / 54 | 27 / 54 / 54 | 24 / 48 / 48 |
APEX Refrigeration has been specialized in commercial refrigeration equipments design and manufacture for over 8 years. Now we are one of leading exporter of southern China in showcase cooler and supermarket coolers and freezers.
We have 1 production facilities for display cooler and another one for supermarket refrigeration equipment, total more than 40, 000 sqm in surface and 500 persons in staffs. More than 30 persons work for Engineering, R&D, Marketing and Quality control. Both our factories are located in Shunde, Foshan City, just 1 hour drive from Guangzhou International Airport.
Why work with Apex?
Our People: Apex is a team which people are well educated and rich in experience of commercial refrigeration industry. We have the best engineer of refrigeration industry that ensures our solution and design is the most reliable and economical. Our sales team is young and aggressive, they know customer well and always react fast to deliver the best services.
Our Products: Our marketing team follow the global development trend tightly that ensures the products you are buying is applied with the latest technologies and most popular features.
Now our product covers full range of DISPLAY COOLER/FREEZER, OPEN COOLER, and PROMOTION-ORIENTED COOLER/FREEZER total more than 50 ITEMS. 50% of the models are our exclusive design! Still, we keep developing new models 3~5 models annually.
Our Quality: From the beginning of establishment we aim to set up APEX quality standard which is international first class level. All of our product must meet CE/CB standard and 100% test before packing. 3% random check by export quality manager is a must before shipment.
We only use good quality compressor in the first class, like Danfoss, Aspera, Tecumseh, Donper, Konor. All our suppliers must be quality verified and regularly audited when they supply to us.
Our production facility is ISO2000/9001 approved and all our staffs must attend 6S courses before start working.
Our Warranty: To do things right at the first time is our first aim but fixing problem in the most appropriate and efficient way is also very important. Different from those who talk warranty policy simply as propaganda, we treat it as our promise and responsibility. Offering free parts or charge rebate we always try the best to resolve quality problem once it happens, which means it's reliable and accountable.
We've been working with customers in 40+ countries all around the world, such as Pepsi, Unilever, Wal-mart, Montonni, Sanden, etc. Hope we could start collaboration with your esteemed company very soon! Welcome to your inquiry!
