| Prod Model: |
K-1004 |
| Markets: |
Southeast Asia,Africa |
| Channels: |
4 Channels |
| Frequency Range: |
190-280MHz |
| Type: |
Handheld Microphone System |
| Size: |
480*180*44 Mm |
| Communication: |
Wireless |
| Application: |
Commercial |
| Certification: |
FCC |
Product Description

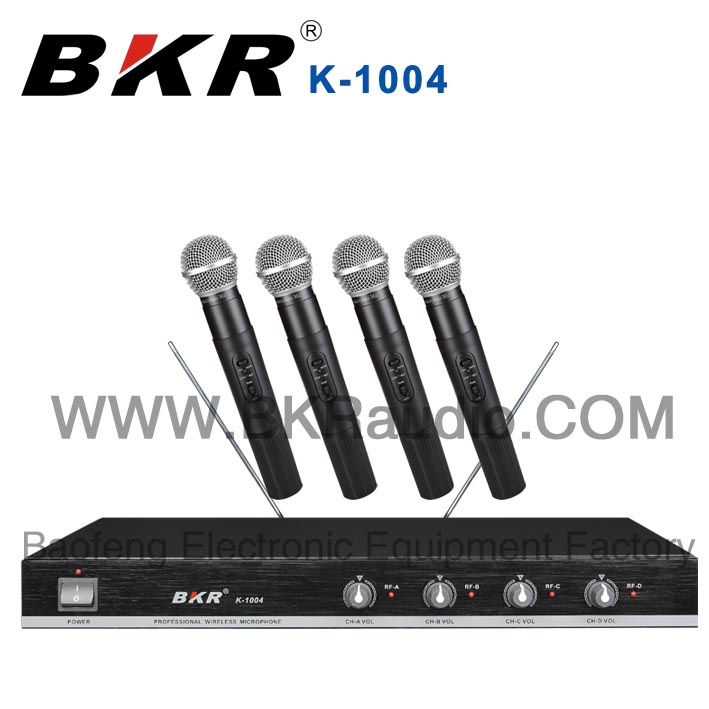

1. Four channels. Each channel has a fixed frequency.
2. Oscillation: Quartz crystal
3. Carrier frequency range is VHF 190MHz-280MHz
4.16 fixed frequency can be used at the same time. That means 4 receivers and 16 transmitters can be used at the same meeting.
5. On the front panel of the receiver, each channel has a red RF lamp to indicate the signal level.
6. On the back panel of the receiver, there are 2 pull rod antenna for signal receiving.
7. There are 2 blanced output and 1 unblanced output on the back-panel, suitable for linking up with other audio equipments.
8. Microphone power consumption is 30mA. With a 9V battery power supply, it can work constantly for 6 hours.
9. Working distance: Open environment: 50-70 meter. Complicated environment: 30-50meter.
10. It's suitable for various kinds of conference and performance occasion.
Parameter:
Channel number: 4
Oscillation Mode: Quartz crystal
Modulation Mode: FM
Carrier Frequency Range: VHF 190~280MHz
Frequency Stability: +0.001%
Max. Deviation Range: +50kHz
S/N Ratio: > 105dB
T. H. D: < 0.5%@1kHz
Sensitivity: 1.2/UV@S/N=12dB
Power Supply: DC 12~17V
Audio Output: Independent: 0-400mV
Mixed: 0-300mV
