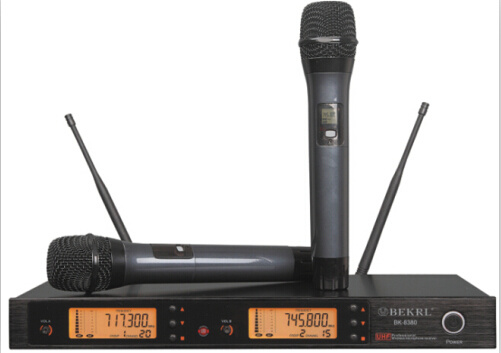

Prod Model: |
BK-8380 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Style: |
Handheld Microphone |
Application: |
Karaoke |
Signal Transmission: |
Wireless |
Directivity: |
Omni-direction |
Sound Channel: |
Stereo |
Transducer Principle: |
Electromagnetic Microphone |
Sound Field Force: |
Pressure Type |
Connector(',s): |
XLR 3 Pin |
Wireless Technology: |
UHF |
Output Impedance: |
50-1000Ω |
Product Description
Feature:
Especially design for the karaok and meeting, 20 sets can use at the same time
LCD screen displayed
With digital code locked technical, effective isolate the disturbing
Can match with handheld, lavilier. Haedset can change to use
Transmitter with 1.5V AA battery
Transmitter can change to use
Material of handheld caes: Metal
Parameter:
Frequency range | UHF711-771MHz |
S/N | > 105dB |
Distortion | < 0.5%@1kHz |
Bandwidth | 60MHz |
Frequency deviation | 45KHz |
Frequency response | 50Hz~15KHz |
THD | <0.3% |
Operating Temperature | -10ºC~55ºC |
Operating Distance | 50m(In an ideal environment |
Troubleshooting
Issue | Indicator Status | Solution |
No sound or faintsound | Receiver LCD off | 1.Make sure AC adapter is securely plugged into electrical outlet and into DC input connector on rear panel of receiver 2.Make sure AC electrical outlet works and is supplying proper voltage |
Transmitter Power Light off | 1.Turn transmitter on 2.Make sure the +/- indicators on battery match the transmitter terminals 3.Insert a fresh battery |
Receiver display indicates RF Therefore level activity | 1.Press mute switch on transmitter 2.Turn up receiver volume control 3.Check cable connection between receiver and amplifier or mixer |
Receiver display indicates no therefore level Activity transmitter and receiver power lights glowing | 1.Extend receiver antennas vertically 2.Move receiver away from metal objects 3.Check for line of sight between transmitter and receiver 4.Move transmitter closer to receiver 5.Check that receiver and transmitter are using the same frequency |
Transmitter power light pulsing red | Replace transmitter batteries |
Distortion level increases gradually | Receiver display indicates RF Therefore level activity | 1.Remove nearly sources of RF interference(CD players,computers digital effects,inear monitor systems,etc.) 2.Change receiver and transmitter to a different frequency 3.Replace transmitter batteries 4.If using multiple systems,increase the frequency spread between systems |
Distortion level increases gradually | Transmitter power light pulsing red | Replace transmitter batteries |
Sound level different from cabled guitar or microphone,or when using differnent guitars |
| Adjust transmitter gain and receiver volume as necessary |
