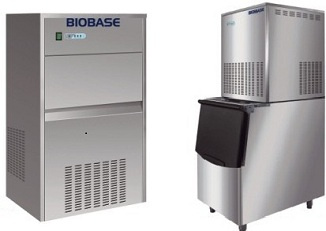

Biobase Automatic Flake Ice Maker

Prod Model:	FIM series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ice Making Capacity(Kg/24h):	20-250
Ice Storage Capacity(Kg):	20-60
Compressor / Refrigerant:	Imports of CFC-Free/134A
Ice Shape:	Slice
Control:	Electric
Power:	200W-400W
Structure:	Integral Type
Material:	Stainless Steel
Application:	Lab
Condensing Mode:	Air-Cooled
Filtering Device:	With Filtering Device
Automatic Cleaning Device:	With Automatic Cleaning Device

Product Description

Automatic Flake Ice maker

Features:
1. High-quality stainless steel is used for their shells, they are anti-corrosive and durable, and the all-in-one independent structure makes them simple and compact and space-saving.
2. Their boxes are protected with fluorine-free foam thermal cover featuring good insulation effect. Their internal bladders are of fluorine-free bacterial inhibitory-type. They are both energy-saving and environmental friendly.
3. High quality and efficient use of fluorine-free R134a compressors, parts and components have passed relevant safety certifications, and they are safe and reliable.
4. The ice-making process is fully computer controlled, using imported computer chips to make control reliable and operation steady.
5. The use of Italian Haitec two-stage reducer and Korean GGM motor makes noise reduced, operation smooth and reliable. Cooling holes and blower fans are deployed on top of ice makers to ensure that the motor of reducer can operate reliably even under harsh conditions at high temperature.
6. The use of the patented technology,line of chip ice-making chamber separated from the evaporator makes high cooling efficiency and large ice-making capacity.
7. The screw extrusion hob-style ice-making type makes a compact structure, realizing ice and water automatic separation. The optimal design of skate blade makes the shape of ice small and applicable.
8. The unique float-type water tank water inflow system ensures that there is no residual water, no ice clearance process, no water wasting, and makes them water and energy saving.
9. They have ice full display, water deficiency display, overcooling protection display and malfunction warning display, etc. for shutdown protection. The stop automatically in case of ice full or water deficiency and start automatically when power or water supply is resumed. They have automatic reminiscence function.
10. The ice made is small shaped, amorphous granular flake chipped ice, which can infiltrate into narrow space, featuring fast cooling speed, good ice bathing effect. It is specially designed for laboratories.
11. There are power switch and function indicators deployed in the front with detailed instructions. It is intuitive and easy to use. Various safety performance indicators have passed electrical tests, they are safe and reliable.
12. Flake shaped ice is widely used in hospitals, schools, laboratories, research institutes and so on, as well as for food preservation in supermarkets, fishing refrigeration, medical applications, chemical, food processing and other industries. It has wide range of applications.


Item No.	FIM 20	FIM 30	FIM 40	FIM 50	FIM 60	FIM 70	FIM 85	FIM 100	FIM 120	FIM 150	FIM 200	FIM 250
Ice making capacity(kg/24h)	20	30	40	50	60	70	85	100	120	150	200	250
Ice storage capacity(kg)	10		15		25			40			60
Ice shape	Small particals of irregular snow ice
Input current(w)	280	300	360	380	420	460	480	520	550	680	1040	1100
Way of condensation	Air cooling
Way of influent	Automatic water tap
Tank shell	Stainless steel
Compressor / refrigerant	Imports of CFC-free/134a
Net weight(kg)	32	38	40	40	45	57	57	62	62	62	92	92
Overall dimension(L*W*H)mm	330*470*605		400*543*720		400*510*875			500*611*940			680*611*1100
Applicable area	Various types of experiments, supermarkets, hotels and other seafood products stores etc.
