| Prod Model: |
HD-3107G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Two Way Radio Microphone HD-3107g |
| Dimension: |
140*61*40.6mm(Except Antenna) |
| FCC: |
Certifaication |
| OEM: |
Accept |
| Color: |
Black |
| Range: |
5-8km |
| Certification: |
FCC |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Usage: |
Home, Commercial, Army |
| Battery Type: |
Lithium Battery |
| Type: |
Handheld |
| Display: |
Without Display |
| Working Frequency Range: |
VHF Segment |
Product Description

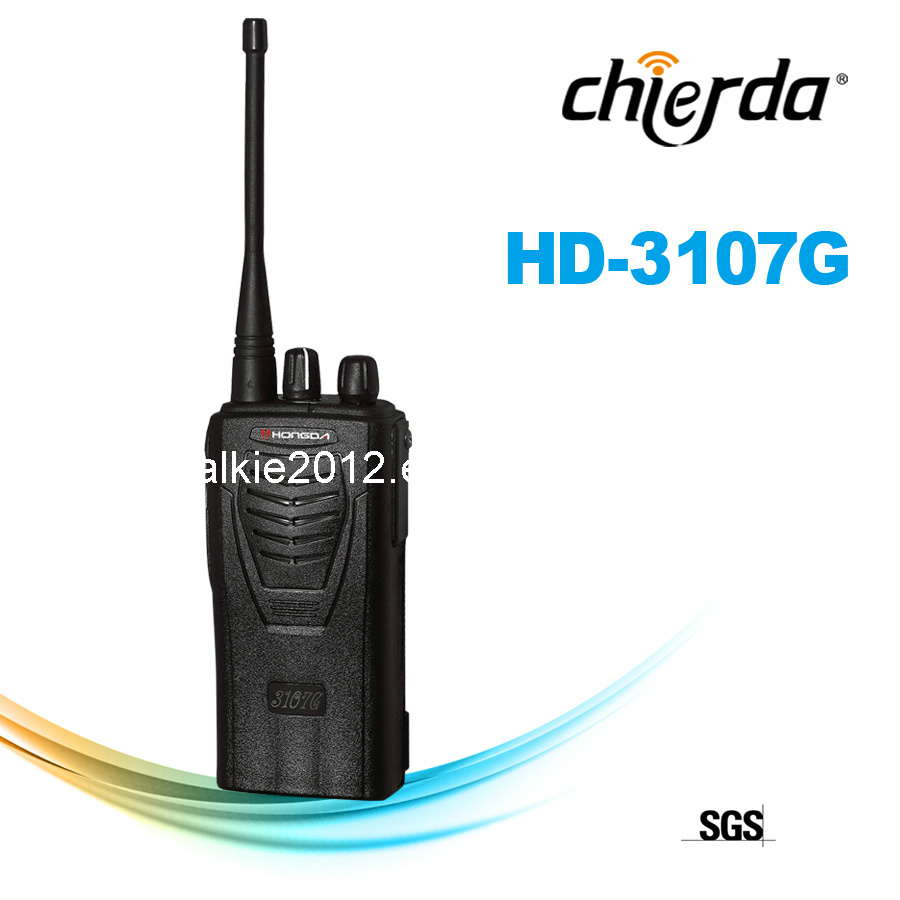

Big long range 10Km two way radio microphone (HD-3017G)
Function and Features:
Power Output 5W/1W
QT/DQT
Urgent Alert
Clone Date
Scan Function
FCC certification
Big long range 10Km two way radio microphone (HD-3017G)
Standard Accessory:
Antenna
Charger
Battery
Belt Clip
Hand Strap
About us:
We will try our best to produce excllent quality products and services, we hope we help you and are glad to become your faithful friends.
Shippment:
For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, large quantities depend on Customer request.
Note:
1) Please contact us at first time for bulk order, larger discount waits for you
2) Please be responsible for custom tax if your local custom charge some custom tax.
3) OEM service is offered, we can design packing box and logo mark as your requirement.
4) Sample time: If with our logo, within 5 days.
5) MOQ: 2 for sample; 100 for mass production; 500 for OEM
6) Payment term: T/T, Western Union and PayPal
7) Warranty Information: 12 months for body radio; 6 months for accessories
|
Specification: |
|
Frequency Range |
136-174MHz/400.000~470.000MHz |
|
Rated Voltage |
DC7.2V(Li-ion battery) |
|
Memory Channel |
16 |
|
Channel Spacing |
12.5KHz/25KHz |
|
Frequency Sensitivity |
± 2.5PPM |
|
Antenna Impedance |
50 Ω |
|
Dimension |
140*61*40.6mm(except antenna) |
|
|
|
Transmitter: |
|
Output Power |
5W/1w |
|
Current |
≤ 1.6A |
|
Modulation Distortion |
≤ 5%(300-3000hz) |
|
Maximum Frequency Deviation |
< 5Khz |
|
CTCSS Frequency Deviation |
0.75KHz ± 50Hz |
|
Remanent Radiation |
≤ 7uW |
|
Modulation Mode |
16Kø F3E |
|
Remanent Modulation |
≤ -35DB |
|
|
|
Receiver: |
|
RF Sensitivity |
≤ 0.25uv |
|
Silent Sensitivity |
≤ 0.2uv |
|
Audio Frequency Power |
≥ 500mw |
|
Audio Distoftion |
< 5% |
|
Modulation Receiver Bandwidth |
± 7khz |
|
Spurious Rejection |
≥ 55DB |
|
Selectivity |
≥ 65DB |
|
Intermodulation |
≥ 60DB |
