| Prod Model: |
FIT-350K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Daily Capacity: |
35000kg |
| Tube Ice Size: |
External Diameter 22mm/29mm/35mm |
| Certification: |
CCC |
| Condition: |
New |
| Ice Shape: |
Tube Ice |
Product Description
High Performance Heavy Duty Tube Ice Machine
BRAND: FOCUSUN/GERMANY TECHNOLOGY
About the ice tube machine :
1. Tube ice plant produces food grade ice. Tube ice is edible ice. Edible for human consumption, for hotesl, bars ,restaurants mixing with wines, juices, etc.
2. Tube ice making plant for the evaporator module and its accessories are installed on a steel frame forms the evaporator module. When transportation, place the evaporator horizontallya nd upright it when installing. For big tube ice plant, we will send engineer to your country to help with it.
Tube ice external diameter: 22mm, 29mm and 35mm.
-Inner diameter: 5mm-10mm, can be adjusted according to ice making time
-Length: 25mm-50mm
- We can make the size according to your requirements.
The ice tube machine features:
Perfect design: adopt 3D simulation assembly, compact structure, easy operation.
Health: ice maker adopts SUS304, PE, and aluminium material to process, design of ice tube making plant everywhere of the machine is easy to clean.
Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
Full automatical: PLC system controls the whole ice making process.
Main application:
Tube Ice Machine mainly apply for human consumption such as freeze drinks, mixing wines, cooling food stuffs,
and also used for chemical cooling, food processing, fisheries, poultryprocessing, meat plants etc.
They are popular for catering with the special large production range from 1000kg/24hrs to 60,000kg/24hrs.
More and more ice factories sell ice in packed bags to a number of restaurant in cities,
which seems gradually become a global trend, such as in Argentina, Brazil, Malaysia, South Africa, Venezuela, and our company could also make the fully-automatic ice packing machine and semi-automatic ice bagger machine for options. We can send more materials for your reference.
Technical parameters:
Refrigerant: R404A,R22
Standard ambient : 30 °C, water temp: 20 °C
Workable temp: Ambient:5°C~40°C, water temp: 5°C~40°C.
Ice tube external diameter:Φ22,Φ29,Φ35,
So customer must confirmed us your local place condition of the ambinet temperature and the water inlet temperature, so we design our tube ice machine workable in your environment.

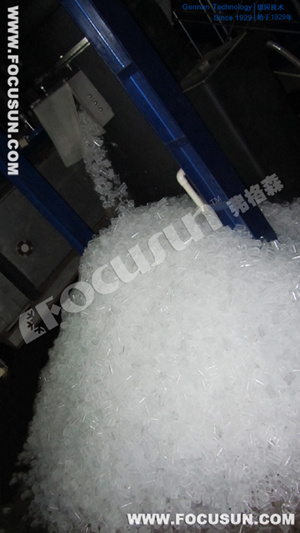

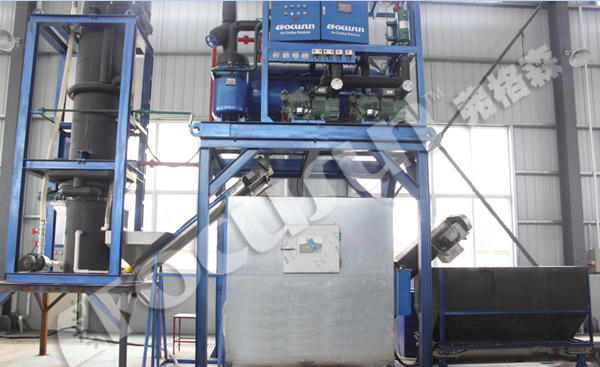

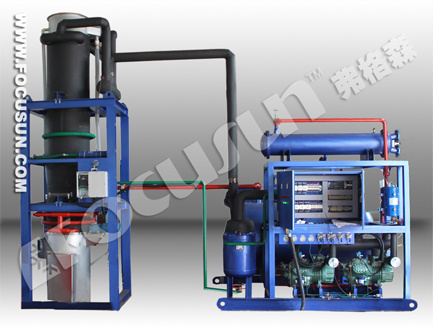

Pictures For REFERENCE:
If you are considering to purchase an tube ice machine, or you are just want to know information about the tube ice making machine and prepare your business for future, please feel free to contact Focusun sales team.
To make customer have better understanding, our Focusun company launched a new website and totally explains the different block ice machines. Can you visit here : http://www.tube-ice-plant.com/
We are very interested to have your inquiry.
We are looking forward to give our best supports.
We are also welcome your visit to FOCUSUN CHINA FACTORY to have face-to-face meeting with our engineering team.
| Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant |
| R22 or R404A |
| Capacity | Kg/day | 35000 |
| Temperature | Ambient temperature | °C | 35 |
| Waterinlet temperature | °C | 20 |
| Operating power | Total running power | Kw | 116 |
| Installment power | Kw | 140 |
| Operating power of cutter | Kw | 3.7 |
| Operating power of cold water pump | Kw | 5.5 |
| Fan motor of cooling tower | Kw | 3.7 |
| Operating power of cold water pump | Kw | 7.5 |
| Compressor | Manufacturer |
| Bitzer |
| Refrigeration capacity | Kw | 250.8 |
| Operating power | Kw | 95.6 |
| Compressor COP/EER | Kw/kw | 2.63 |
| Horse power | Hp | 40×4 |
| Cooling way |
| Water cooling |
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:3500×2200×2000 |
| Evaporator:1500×1500×5500 |
| Size of cooling tower | (O.D.×H)(mm) | Φ3770×3490 |
| Size of liquid pipe of cooling tower |
| 11-1/4" |
| Size of cooling water pipe |
| 4" |
| Size of waterinlet pipe of ice maker |
| 1-1/4" |
| Size of ice outlet | mm | 500×400 |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:3860 |
| Evaporator:5650 |
| Operating weight of cooling tower | Kg | 2730 |
| Water supply pressure requirement | Bar | 1.5 |
